1）hydraulic uncoil:
1、Uncoil：electric feeding tension by manual
2、Loading：10T
3. Main motor power: 11KW
4. Feed speed: 60m/min
5. Uncoiler hydraulic power system: 4KW
6. Ultrasonic transducer: BANNER USA
7. Feed car loading: 10T
8. Feed car power: 2.2KW
II. Main specification
1）hydraulic uncoil
1、Uncoil：electric feeding tension by manual
2、Loading：10T
3. Main motor power: 11KW
4. Feed speed: 60m/min
5. Uncoiler hydraulic power system: 4KW
6. Ultrasonic transducer: BANNER USA
7. Feed car loading: 10T
8. Feed car power: 2.2KW

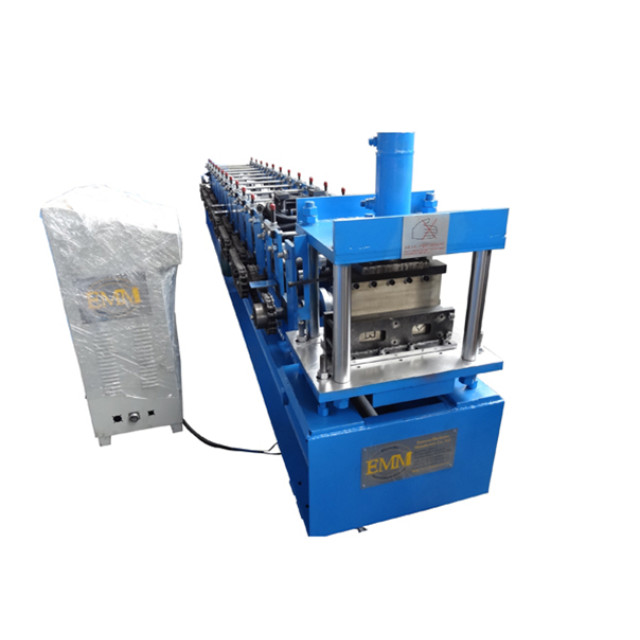

2）、Roll forming specification
1. Guide feed type：lateral hand wheel
2. Machine type：wall type chain
3. Before cutting : hydraulic cutting
4. Shaft material: 40Cr
5. Shaft diameter：Φ75 thermal refining: HB220-260
6. Motor power：7.5 KW（2sets）Siemens
7. Speed：60m/min
8. Roll station:20
9. Machine adopts high quality profile welding
10. Rolling thickness： 0.25-0.8 mm
11. The width of the rolling material：1220mm
12. Definite length ：±1.5mm
13. Roll materials：high quality 45 # steel
14. Roll hard chromium plating≥ 0.05mm
15. Hydraulic station oil pump: gear pump 316, hydraulic valve adopts Hude Beijing.
16. Cutting blade material： Cr12
17. Cutting type：Servo fly-cut off.
18. Servo motor: YASKAWA Japan
19. Size：Conform to the state building contour plate GBT/12755-91
20. Transducer：Yaskawa（Japan）
21. Computer adopts PLC control：Panasonic（Japan）
22. Computer operation panel：MCGS
23. Encoder: Omron
3)、12m automatic stacking
1. Size: 12000m
2. Working speed: 70 m／min
3. Motor power: 4KW
4. The arm motor power: 1.5KW
5. Overall dimension of the hoist: 12100mm×1400mm×1800mm (not include the feed table)
6. Electronic control system: the whole machine adopts industrial computer PLC variable frequency control.
7. PLC: Panasonic
8. Transducer: Yaskawa Japan
9. Transmission type: chain transmission
