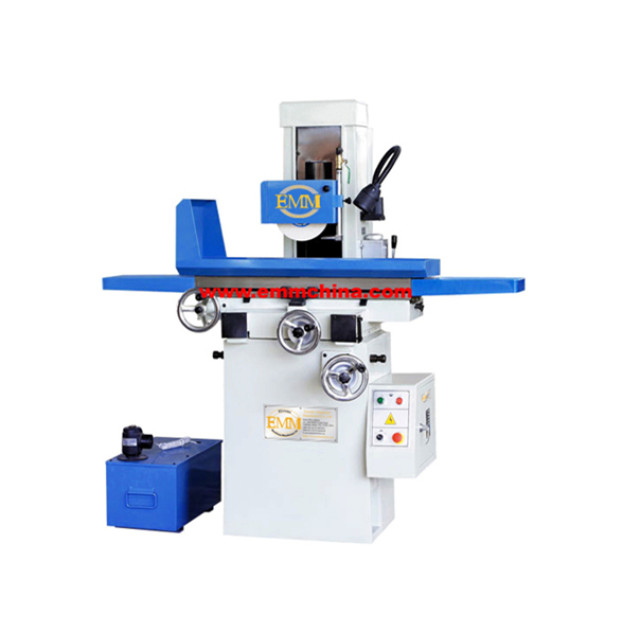

All the Surface grinding series which adopt the V-type guide bring transmission by synchronous belt. Meanwhile, adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electro-magnetic chuck or the dense chuck of permanent magnetism and having the following features: operating simple and convenient, low noise, high precision for processing, steady mechanical performance,
|
Unit |
G68 |
OG68 |
G82 |
OG82 |
G102 |
OG102 |
||
|
Max. Grinding Length |
mm |
500 |
500 |
530 |
530 |
560 |
560 |
|
|
Max. Grinding Width |
mm |
190 |
190 |
220 |
220 |
260 |
260 |
|
|
Distance From Table Surface To Spindle Center |
mm |
335 |
335 |
450 |
450 |
490 |
490 |
|
|
Slide way |
V-type rail with Steel-ball |
V-type rail with Steel-ball |
Double V-type rail |
Double V-type rail |
||||
|
V-type rail with Steel-ball |
Kg |
200 |
200 |
200 |
200 |
250 |
200 |
|
|
Table Size (L×W) |
mm |
460×180 |
460×180 |
480×200 |
480×200 |
540×250 |
550×260 |
|
|
Number of T -Slot |
mm×n |
14×1 |
14×1 |
14×1 |
14×1 |
14×1 |
14×1 |
|
|
Speed OF Working Table |
m/min |
3-23 |
3-23 |
3-23 |
3-23 |
3-23 |
50－500/1-20 |
|
|
Cross Feed On Handwheel |
mm |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
|
|
Vertical Feed On Handwheel |
mm |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
||
|
Wheel Size (dia.×width×bore ) |
mm |
180×13×31.75 |
180×13×31.75 |
200×20×31.75 |
200×20×31.75 |
200×20×31.75 |
200×16×31.75 |
|
|
Spindle Speeds |
50Hz |
rpm |
2850 |
2850 |
2850 |
2850 |
2850 |
2850 |
|
Frequency modulation motor |
0-6000 |
30-6000 |
0-6000 |
30-6000 |
0-6000 |
30-6000 |
||
|
Spindle motor |
Kw |
1.14 |
1.14 |
1.14 |
1.29 |
1.1 |
1.69 |
|
|
Grinding head motor |
Kw |
1.1 |
1.1 |
1.1 |
1.1 |
|
1.5 |
|
|
Coolant Pump |
Kw |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
|
|
|
Minimum of Numerical Display |
mm |
|
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
||
|
Machine Size (L×W×H) |
mm |
1550×1150×1590 |
1550×1150×1590 |
1680×1140×1760 |
1680×1140×1760 |
1680×1220×1720 |
1680×1220×1720 |
|
|
Packing Size (L×W×H) |
mm |
1000×1150×1760 |
1000×1150×1760 |
1140×1250×1940 |
1140×1250×1940 |
1120×1400×1940 |
1200×1400×1940 |
|
|
Gross/Net Weight |
T |
0.75、 0.65 |
0.79、 0.69 |
O.80、 0.70 |
O.85、 0.75 |
O.85、 0.90 |
O.95、 0.85 |
|
|
Machining surface to the degree of parallelism |
mm |
|
|
300:0.005 |
300:0.005 |
|
300:0.005 |
|
|
Surface roughness |
μm |
|
|
Ra0.32 |
Ra0.32 |
|
Ra0.63 |
|
|
Grinding the workpiece maximum size (L*W*H) |
mm |
|
|
|
|
|
540×250×290 |
|
|
mm |
|
|
|
|
|
0.5-20 |
||
|
r/min |
|
|
|
|
|
144 |
||
