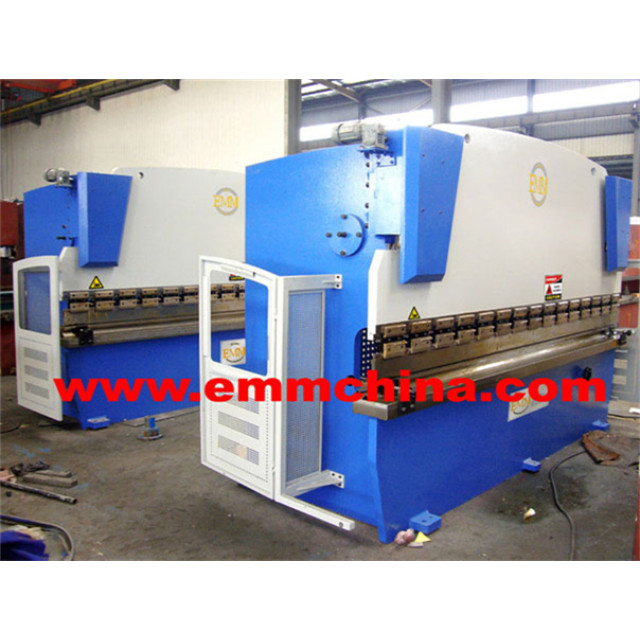

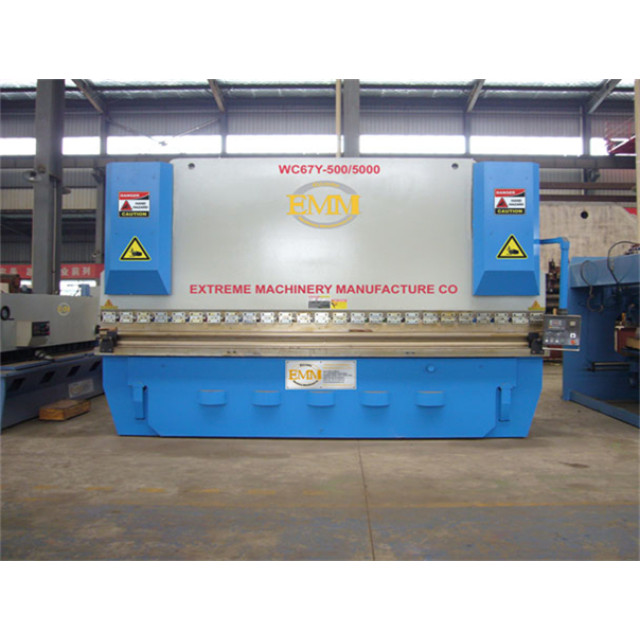

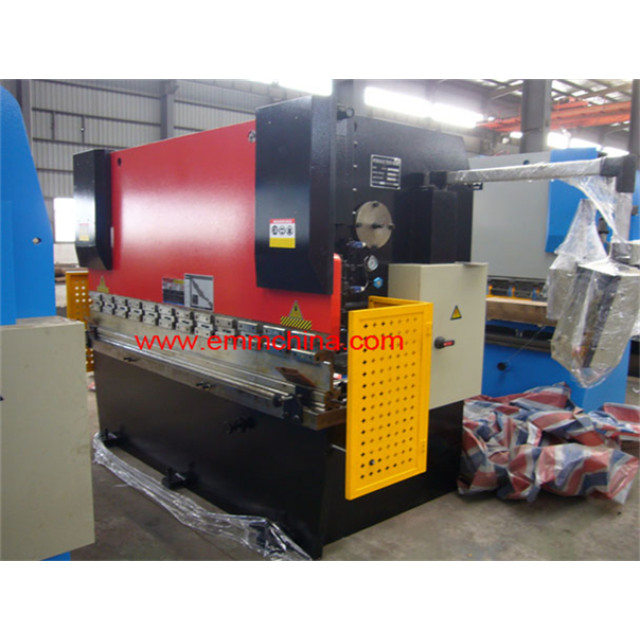

press brake 600Ton-2500Ton

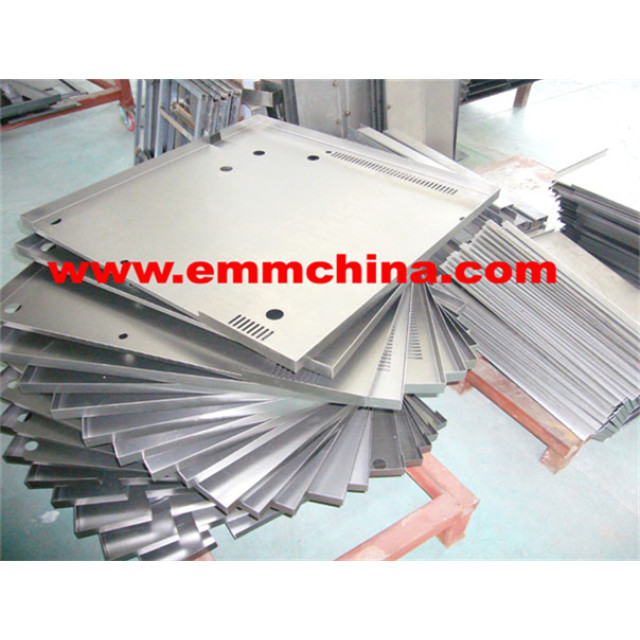

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times.

Online Inquiry

Product Detail

Overall structure：

a ) Using UG (finite element) analysis, through computer aid design, with nice appearance.

b )The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

c )The mechanic block is equipped in the oil cylinder to ensure the fixing accuracy when the slider travels to the bottom dead point and so as to assure the consistency of bending angle in bulking production.

d )Using German technology to eliminate internal stress.

e ) Entire frame using striking grit to get rid of rust and spout anticorrosive paint.

Model	Nominal force(KN)	Worktable length mm	Poles distance mm	Throat depth mm	Slider travel mm	Open max mm	Power KW	Dimension mm
600/6000	6000	6000	4800	500	320	635	30	6300x2610x4440
700/4000	7000	4000	3300	600	350	700	45	4285x3785x5200
700/5000	7000	5000	4100	600	350	700	45	5285x3785x5330
700/6000	7000	6000	5000	600	350	700	45	6285x3785x5530
700/7000	7000	7000	5800	600	350	700	45	7285x3785x6030
800/4000	8000	4000	3200	600	400	820	2x37	4345x4240x5840
800/5000	8000	5000	4000	600	400	820	2x37	5345x4240x6040
800/6000	8000	6000	5000	600	400	820	2x37	6345x4240x6240
800/7000	8000	7000	5800	600	400	820	2x37	7345x4240x6670
800/8000	8000	8000	6800	600	400	820	2x37	8345x4240x7270
800/10000	8000	10000	8000	600	400	820	2x37	10345x4240x8070
800/12000	8000	12000	9000	600	400	820	2x37	12345x4240x9270
1000/4000	10000	4000	3200	800	400	900	2x45	4280x5130x6340
1000/5000	10000	5000	4000	800	400	900	2x45	5280x5130x6540
1000/6000	10000	6000	5000	800	400	900	2x45	6280x5130x6740
1000/7000	10000	7000	5800	800	400	900	2x45	7280x5130x7040
1000/8000	10000	8000	6800	800	400	900	2x45	8280x5130x7350
1000/10000	10000	10000	8000	800	400	900	2x45	10280x5130x8150
1000/12000	10000	12000	9000	800	400	900	2x45	12280x5130x9350
1200/4000	12000	4000	3200	850	400	900	2x55	4280x5530x6650
1200/5000	12000	5000	4000	850	400	900	2x55	5280x5530x6850
1200/6000	12000	6000	5000	850	400	900	2x55	6280x5530x7050
1200/7000	12000	7000	5800	850	400	900	2x55	7280x5530x7350
1200/8000	12000	8000	6800	850	400	900	2x55	8280x5530x7650
1200/10000	12000	10000	8000	850	400	900	2x55	10280x5530x8200
1200/12000	15000	12000	9000	850	400	900	2x55	12280x5530x9400
1500/5000	15000	5000	4000	900	600	1000	2x55	5280x5830x7180
1500/6000	15000	6000	5000	900	600	1000	2x55	6280x5830x7380
1500/7000	15000	7000	5800	900	600	1000	2x55	7280x5830x7680
1500/8000	15000	8000	6800	900	600	1000	2x55	8280x5830x7980
1500/9000	15000	9000	8000	900	600	1000	2x55	9280x5830x8380
1500/10000	15000	10000	9000	900	600	1000	2x55	10280x5830x9500
1600/5000	16000	5000	4000	1000	600	1100	2x55	5280x5880x7530
1600/6000	16000	6000	5000	1000	600	1100	2x55	6280x5880x7730
1600/7000	16000	7000	5800	1000	600	1100	2x55	7280x5880x8030
1600/8000	16000	8000	6800	1000	600	1100	2x55	8280x5880x8330
1600/10000	16000	10000	8000	1000	600	1100	2x55	10280x5880x8730
1600/12000	16000	12000	9000	1000	600	1100	2x55	12280x5880x9600
2000/6000	20000	6000	5000	1100	600	1200	2x75	6280x6480x8270
2000/7000	20000	7000	5800	1100	600	1200	2x75	7280x6480x8570
2000/8000	20000	8000	6800	1100	600	1200	2x75	8280x6480x8870
2000/10000	20000	10000	8000	1100	600	1200	2x75	10280x6480x9270
2000/12000	20000	12000	9000	1100	600	1200	2x75	12280x6480x9860
2500/6000	25000	6000	5000	1200	600	1300	2x75	6280x7080x8980
2500/7000	25000	7000	5800	1200	600	1300	2x75	7280x7080x9180
2500/8000	25000	8000	6800	1200	600	1300	2x75	8280x7080x9480
2500/10000	25000	10000	8000	1200	600	1300	2x75	10280x7080x9880
2500/12000	25000	12000	9000	1200	600	1300	2x75	12280x7080x10280
