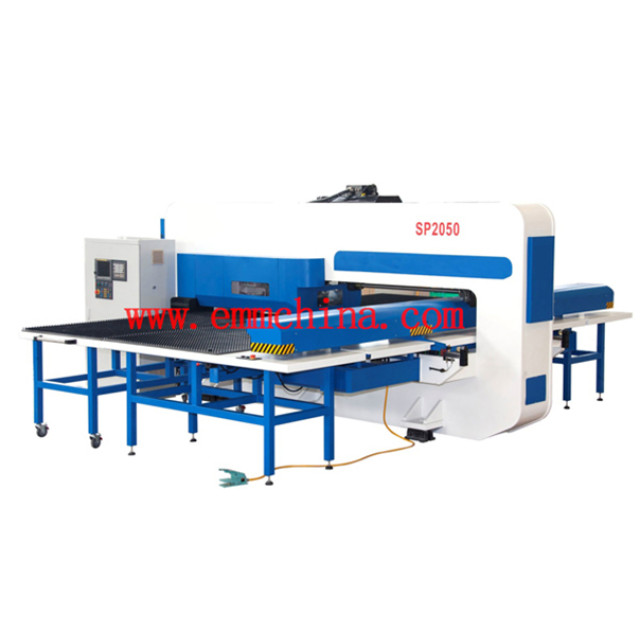

Servo CNC turret punch press

1

Type

SP2025

2

Punching force

250              KN

3

Max. punching diameter

Æ88.9            mm

4

Max. sheet size（One reposition）

1250×2500      mm

5

Max. sheet thickness

6                mm

6

Max. sheet weight

100               kg

7

Machining accuracy

±0.1             mm

8

Repeat positioning accuracy

±0.02            mm

9

Ram stroke

32               mm

10

Punching frequency

Max. speed

1200            h.p.m

1mmpitch

600            h.p.m

25mmpitch

340            h.p.m

11

Max. positioning speed（simultaneous）

140             m/min

12

X-Axistraverse length

1250           mm

13

Y-Axis traverse length

1250            mm

14

Turret rotation

30              r.p.m

15

Number of tool stations

（Including 2 index stations）

32(A16, B10，C2，D2，IT2)

16

CNC system

FANUC 0i-P  5 axes

17

CNC system configuer

10.4²Color monitor

RS232Cinterface

256K content

18

Main motor power

30               kW

19

Electrical consume of working process

1.6               kW

20

Electrical energy（AC 380V）

30               KVA

21

Compressed air

0.05 m3/min 0.55 Mpa

22

Machine dimensions（approx）

4995×2736×2250   mm

23

Machine weight（approx）

14              tons
