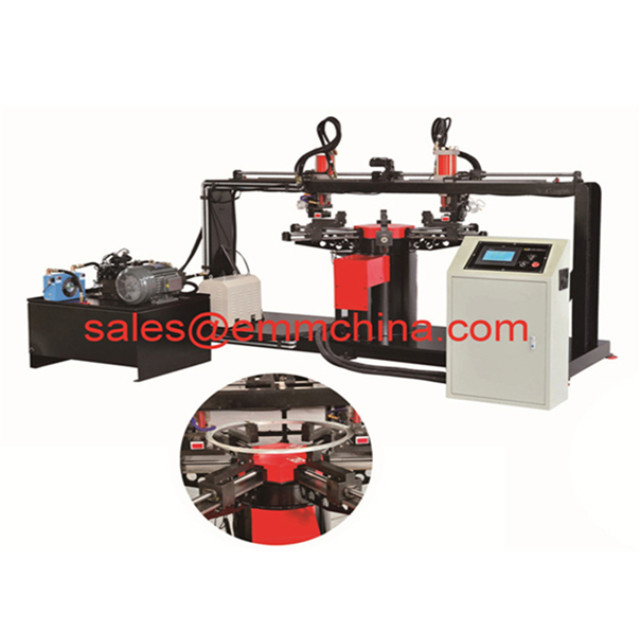

Machine description |
Function |
Flange forming and cutting |
|
TFT human machine interface display, Touch screen control, Numerical control, Mold storage memory function |
||
|
Oil Hydraulic System |
High power circuit design Hydraulic motor 10HP |
|
|
Working Mold |
9 station round screw die |
|
|
Electronic control system |
human machine interface, diameter forming locating wheel, diameter adjustable by location ruler. |
|
|
Cutter |
circular blade function |
|
|
Technical Parameter |
Mold Function |
Adjustable mold |
|
Min diameter of Flange |
Φ250mm (30×20) |
|
|
Max diameter of Flange |
φ2000mm |
|
|
Producing thickness |
stainless 2-4mm ,carbon steel 3-5mm |
|
|
Max producing capacity |
30*20,30*50, 40*40,50*50 , equilateral, in equilateral flange |
|
|
working speed |
9000mm/min |
|
|
L*W*H |
6200*2300*1500mm |
|
|
Working Processing |
Feeding- Forming-Rolling-Cutting |
|
|
Material of main Structure |
45# carbon steel, 40CR,SKD11 |
|
|
Color |
Red, black, white and etc |
|
|
Main parts |
Reduction box |
Taiwan or International famous brand |
|
Electronic control |
TAIDA PLC, touch screen |
|
|
Low Voltage electronic |
famous brand |
|
|
Transmission, bearing |
famous brand |
|
|
Frequency brake motor |
Dongyuan Taiwan |
|
|
Accessory list |
Allen key 1 set |
|
|
Adjustable wrench 1pcs |
||
|
Photoelectric proximity switch 2 sets |
||
|
Proximity switch 1pcs |
||
|
punch die 1 set |
||
|
punching head Φ11 long hole，Φ10，Φ12，Φ14 |
||
|
Wearing part |
Photoelectric proximity switch, proximity switch, punch die, shaft sleeve |
|
