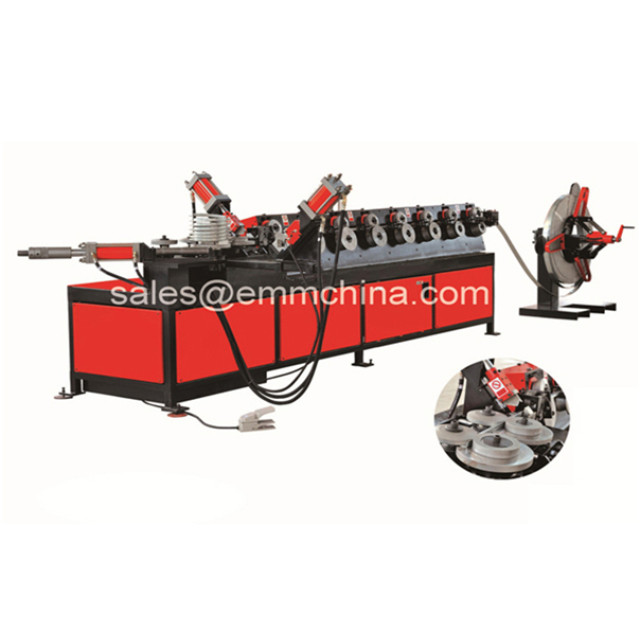

Machine description |
display |
TFT human machine interface display, touch controllable screen, NC control system, |
|
Motor |
10HP S.Y(Taiwan) |
|
|
Oil Hydraulic System |
circle design |
|
|
Electronic control system |
human machine interface display , rotary indexing, punching hole distance adjustable, use servo motor, high precision, easy operation. |
|
|
Reduction drive |
VGM |
|
|
advantage |
Diameter, hole distance, hole quantity can easily setting, high efficiency processing. |
|
|
Punching pressure |
stainless steel 3 mm , 13x15 hole double punching die. |
|
|
Technical Parameter |
Max punching capacity |
5mm |
|
Min punching diameter |
φ250mm |
|
|
Max punching diameter |
φ2000mm |
|
|
application |
30-40 angle steel equal or unequal side flange |
|
|
stainless |
2-3 mm |
|
|
mild steel |
3-4mm |
|
|
Punching hole quantity |
360° rotary any location |
|
|
Hydraulic motor |
10HP S.Y(Taiwan) |
|
|
L*W*H |
3800*1700*1600mm |
|
|
Working Processing |
Upload workpiece——clamp ——feeding blade——punching hole——rotary——punching hole——loose clip——finish |
|
|
Material of main structure |
45#mild steel，40CR，SKD11 |
|
|
Color |
Red ,black , white |
|
|
Main parts |
servo |
TECO（Taiwan） |
|
Reduction drive |
VGM（Taiwan） |
|
|
Electronic control |
DeltaPLC |
|
|
Low Voltage electronic |
famous brand |
|
|
Accessory list |
Transmission,bearings,lead screw |
famous brand |
|
Wearing part |
Allen key 1 set |
|
|
Adjustable wrench 1pcs |
||
|
Photoelectric proximity switch 2 sets |
||
|
Proximity switch 1pcs |
||
|
punch die 1 set |
||
|
punching head Φ11 long hole，Φ10，Φ12，Φ14 |
||
|
Photoelectric proximity switch, proximity switch, punch die, shaft sleeve |
||
