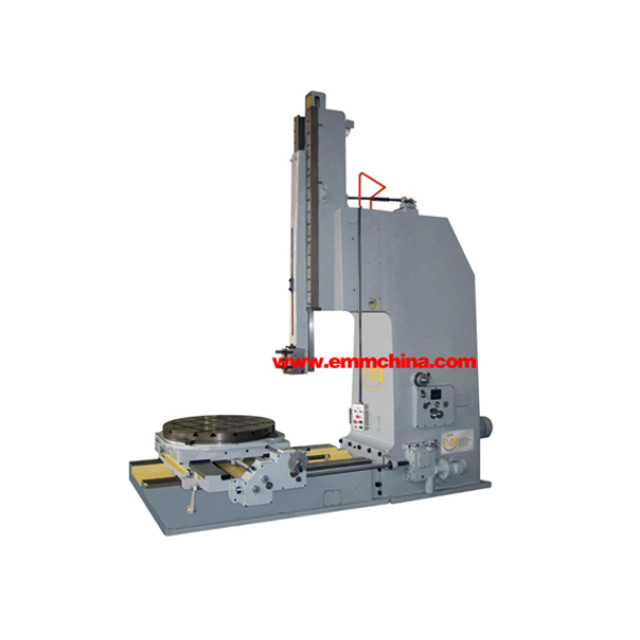

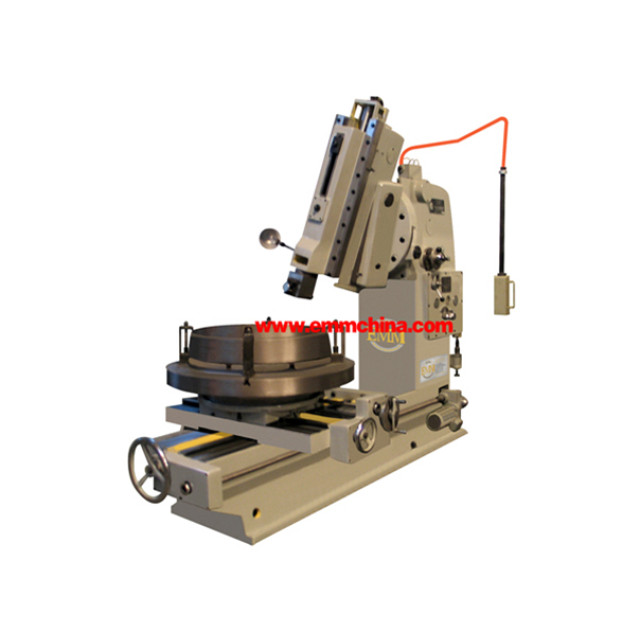

The machine used for cutting various parts in plane, formed surface (including curve) and the keyway etc, and could plug in cutting slope 0 ~ 10 ° range of molds and working material, suitable for single or small batch production.
The workbench of the machine has three different direction into to (vertical, horizontal and rotary), the product after a clamping continuously in the machine after several surface processing.
Features:
The machine used for cutting various parts in plane, formed surface (including curve) and the keyway etc, and could plug in cutting slope 0 ~ 10 ° range of molds and working material, suitable for single or small batch production.
The workbench of the machine has three different direction into to (vertical, horizontal and rotary), the product after a clamping continuously in the machine after several surface processing.
The machine has the slippery pillow reciprocating motion of the hydraulic transmission mechanism and workbench hydraulic into to the device. The slippery pillow in every trip speed, the slippery pillow movement speed with table all can be move stepless adjustment. Hydraulic pressure has for the slippery pillow reversing oil of commutation institutions, workbench unless the hydraulic and manual into to outside, still has the motor drive alone the vertical, horizontal and turn around move fast. The hydraulic into the slotting machines, is when work over the moment to return to turn into to give, so better than the mechanical slotting machines in round drum.
Model |
SY80E |
SY100E |
SY125E |
Unit |
Max. stroke length of ram |
800 |
1000 |
1280 |
mm |
Min. stroke length of ram |
125 |
125 |
300 |
mm |
Max. slotting length |
800 |
1000 |
1250 |
mm |
Distance of vertical adjust of ram |
732 |
1090 |
1020 |
mm |
Extreme high speed for work stroke of ram |
22 |
22 |
30 |
m/min |
Extreme low speed for work stroke of ram |
5 |
5 |
7 |
m/min |
Speed ratio of work stroke and return stroke of ram |
1:1.45 |
1:1.45 |
1:1.45 |
|
Speed adjust for work stroke |
stepless |
stepless |
stepless |
|
Max. slotting force |
27 |
27 |
KN |
|
Distance from tool holding surface to column front |
1246 |
1151 |
1600 |
mm |
Distance from worktable surface to underside of slide rack |
1000 |
1250 |
1620 |
mm |
Max. longitudinal travel of worktable |
1200 |
1400 |
1500 |
mm |
Max. transverse travel of worktable |
1070 |
1100 |
1250 |
mm |
Diameter of worktable |
Φ1000 |
Φ1400 |
Φ1400 |
mm |
Inclination of ram |
0-10 |
0-10 |
0-10 |
゚ |
Feed range of worktable in longitudinal direction(stepless) |
0-1.5 |
0-1.5 |
0-1.5 |
mm |
Feed range of worktable in transverse direction(stepless) |
0-3 |
0-3 |
0-3 |
mm |
Rotary feed range of worktable(stepless) |
0゚-1゚15' |
0゚-1゚15' |
0゚-1゚15' |
゚ |
Max loading weight on worktable |
4000 |
4000 |
6000 |
kg |
T-slot width in the center of worktable |
22H8 |
28H8 |
28H8 |
|
Power supply of main electric motor |
11KW,960r/min |
11KW,960r/min |
11KW,960r/min |
|
Power of motor for rapid traverse |
1.5KW,940r/min |
1.5KW,940r/min |
1.5KW,940r/min |
|
Cooling pump motor model |
DB-12B,40W 380W |
DB-12B,40W 380W |
DB-12B,40W 380W |
|
Net weight (approx.) |
14000 |
15500 |
17800 |
kg |
Dimensions of machine tool (Length×Width×High) |
4125*2742*4229 |
4125*2755*4888 |
4300*3050*5400 |
mm |
