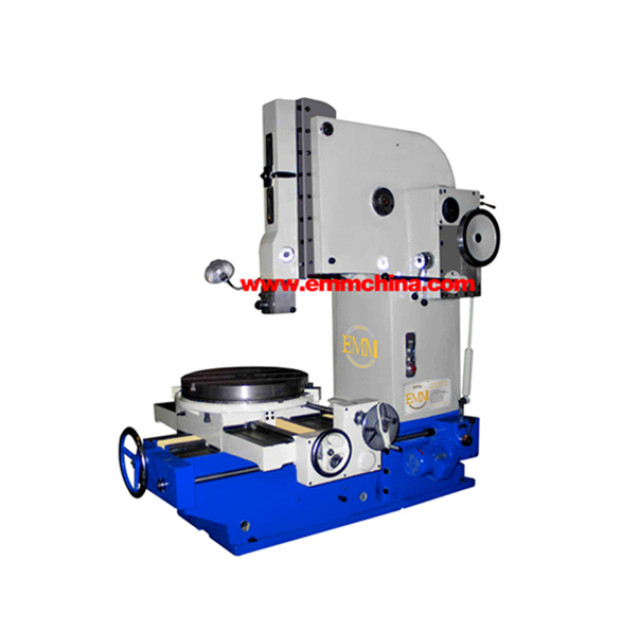

Being designed for cutting various planes, formed surface and key way of workpiece, the machine is suitable for single piece or small batch production.
|
Model |
S20E |
S32E |
S40E |
Unit |
|
Max. slotting length |
200 |
320 |
400 |
mm |
|
Number of ram reciprocation per minute |
32、50、80、125 |
20、32、50、80 |
20、32、50、80 |
No./min |
|
Inclination of ram |
0-8 |
0-8 |
0-8 |
ﾟ |
|
Diameter of worktable |
Φ460 |
Φ630 |
Φ630 |
mm |
|
Adjusting vertical distance of slide block |
200 |
315 |
315 |
mm |
|
Distance from tool holding surface to column front |
480 |
600 |
600 |
mm |
|
Distance from worktable surface to underside of slide rack |
320 |
455 |
615 |
mm |
|
Max. longitudinal travel of worktable |
420 |
560 |
560 |
mm |
|
Max. transverse travel of worktable |
420 |
535 |
535 |
mm |
|
Max. rotary angle of worktable |
360 |
360 |
360 |
ﾟ |
|
Feed range of worktable in longitudinal & transverse direction |
0.054-1.24 |
0.054-1.24 |
0.054-1.24 |
mm |
|
Rotary feed range of worktable |
0.035-0.805 |
0.035-0.805 |
0.035-0.805 |
ﾟ |
|
Max size of slotting tool (Length×High) |
25*40 |
25*40 |
25*40 |
mm |
|
Max. slotting force |
5 |
8 |
8 |
KN |
|
Max loading weight on worktable |
400 |
500 |
500 |
kg |
|
T-slot width in the center of worktable |
18H8 |
18H8 |
18H8 |
mm |
|
Power supply of main electric motor |
3 |
3 |
3 |
KW |
|
Speed of main motor |
1420 |
960 |
960 |
r/min |
|
Power of motor for rapid traverse |
0.75 |
0.75 |
0.75 |
KW |
|
Speed of motor for rapid traverse |
1390 |
1390 |
1390 |
r/min |
|
Net weight (approx) |
2200 |
2500 |
2900 |
kg |
|
Dimensions of machine tool |
1717*1221*1885 |
1930*1365*2270 |
1970*1365*2310 |
mm |
