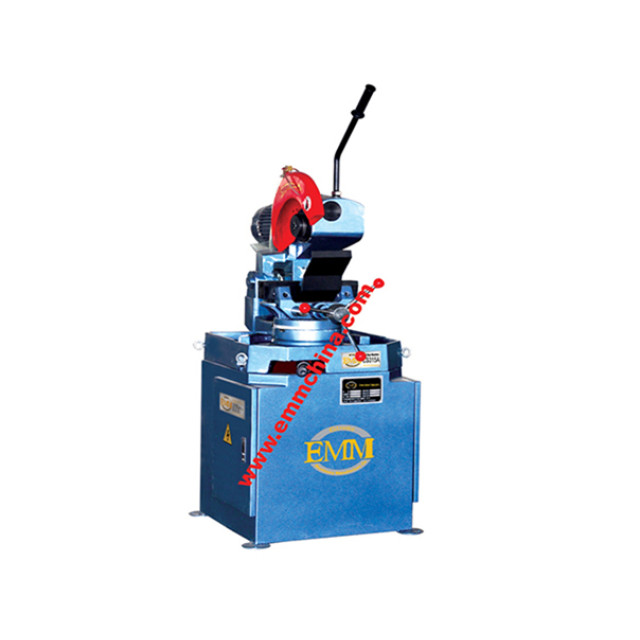

CS series manual metal circular sawing machine, with high performance worm and worm wheel, the bilateral-bidirectional clam has the work piece stable and the cutting face smooth without burr and dust power, and low noise and low pollution.
|
Cutting capacity(mild steel as reference) |
||||
|
sawing profile scale |
CS275 series |
CS315 series |
||
|
Blade position |
90ﾟ |
45ﾟ |
90ﾟ |
45ﾟ |
|
|
70 |
60 |
90 |
70 |
|
|
60*60 |
45*45 |
80*80 |
60*60 |
|
|
60*60 |
45*45 |
80*80 |
60*60 |
|
|
60*80 |
45*60 |
80*90 |
60*60 |
|
|
38 |
25 |
55 |
45 |
|
|
38 |
25 |
50 |
40 |
|
Technical data |
|||
|
Specification/Model |
CS275 series |
CS315 series |
|
|
Main motor |
Double speed motor 2/2.4kw |
Double speed motor 2.4/3kw |
|
|
Double speed motor 2/2.4kw |
Double speed motor 2.4/3kw |
||
|
Main shaft |
A |
RPM60/120 |
RPM60/120 |
|
B |
RPM60/120 |
RPM60/120 |
|
|
Suitable blade |
H.S.S Blade |
H.S.S BLADE |
|
|
OD 250/275mm |
OD 250/300/315mm |
||
|
Cooling pump |
90W |
90W |
|
|
Compressed air |
A/B |
A/B |
|
|
0.4-0.6Mpa |
0.4-0.6Mpa |
||
|
Weight(kg) |
A 180 |
A 200 |
|
|
B 190 |
B 210 |
||
