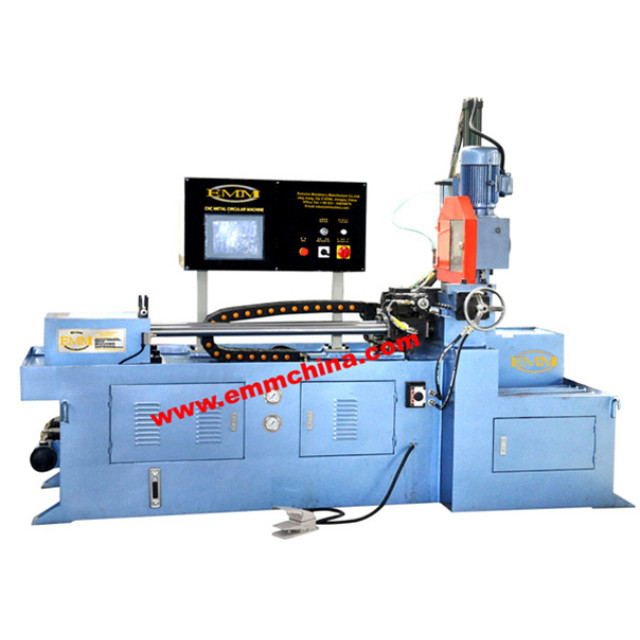

CNC Control + touch screen: Feeding is controlled by servo motor, it is suitable for sawing short pipes and setting to cut different size on one pipe.
|
Item |
Name |
FS350 |
||
|
1 |
Main motor |
2/4 pole 2.4/3kw |
||
|
2 |
speed of main shaft |
48/19 |
||
|
3.
|
Suitable saw Blade |
OD |
Φ250-370mm |
|
|
Center Bore |
Φ32mm |
|||
|
Pin hole |
2XΦ11X65mmPCD |
|||
|
6 |
Feeding length |
750mm*many times |
||
|
7 |
Oil pump system |
2.2KW, 4 Pole motor, double –ply pump operating pressure 25-35kg/cm |
||
|
8 |
Cooling system |
0.09Kw motor, automatic cooling circulation |
||
|
9 |
Weight |
1400KGS |
||
|
10 |
Size |
295x155x210cm |
||
|
Cutting capacity(mild steel as reference) |
|||
|
Specification/Model |
FS350 |
||
|
Blade size |
Φ350mm×3mm |
||
|
Pipe shape |
○ |
Φ120 |
|
|
□ |
100x100mm |
||
|
|
120x90mm |
||
|
Special mold, not standard, need to order separately |
|||
