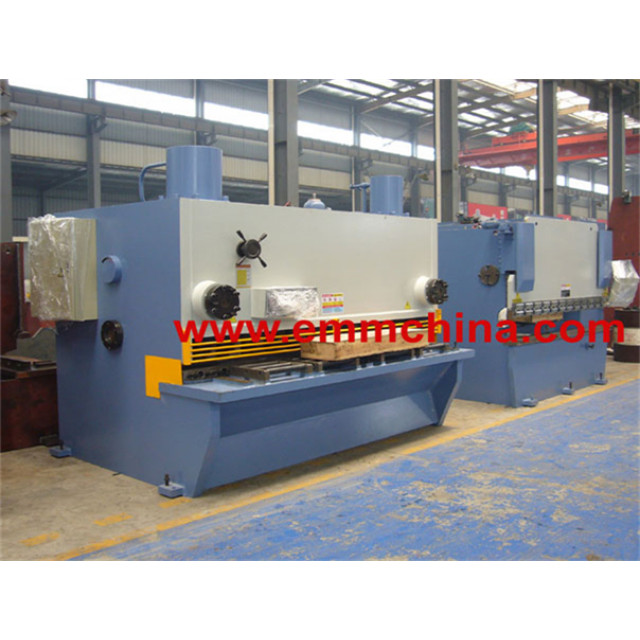

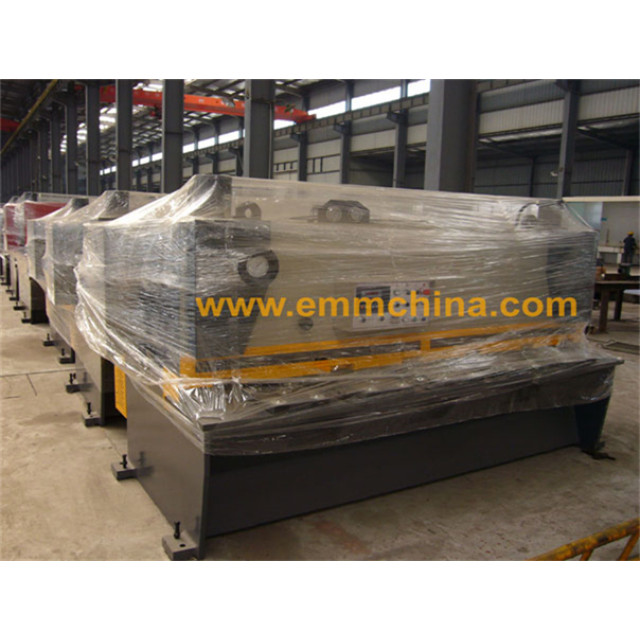

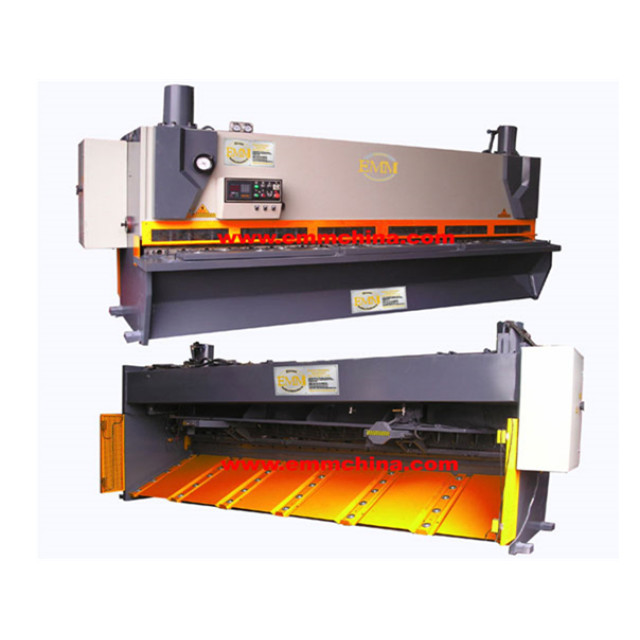

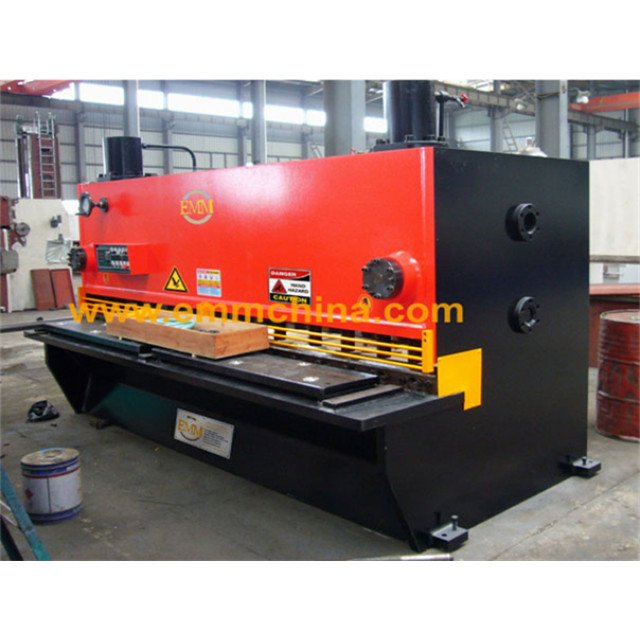

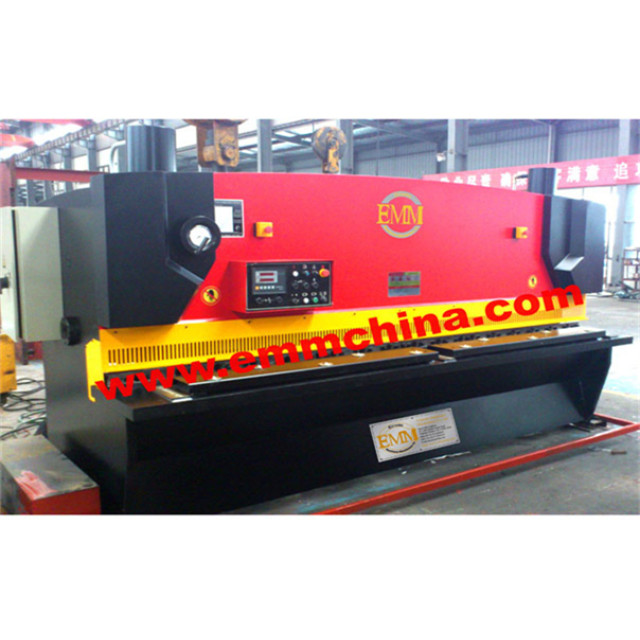

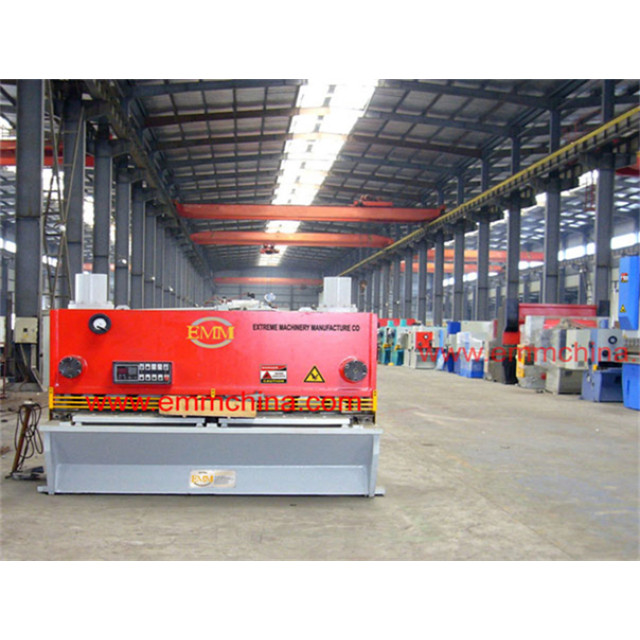

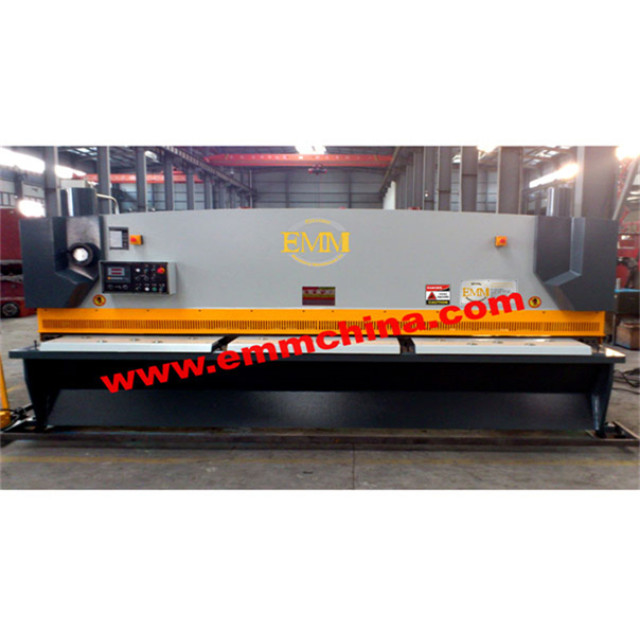

QC11K-13X3200 P40 Hydraulic Guillotine Shears

Serial No.

Name

Unit

QC11K-13X3200 P40

1-

 Cutting Capacity

<450N/mm2

mm

13

<700N/mm2

mm

10

2-

 Cutting Length

( A )

mm

3200

3-

Distance between columns

( B )

mm

3355

4-

Cutting Angle

degree

0.5°~3°50″

5-

Blade Clearance Adjustment

mm

0.05~0.8

6-

Number of Hold downs

Pcs.

23

7-

Stroke per minute

Cuts/min

12~15

8-

 Length of cutter blade

mm

3300

9-

Height of working table

( D )

mm

820

10-

Back gauge

Travel

mm

1000

Speed

mm / sec

180

11-

Sliding Front Arms

Number

Pcs.

3

Length

mm

1250

12-

Motor Power

kw

18.5

13-

Oil Tank Capacity

lt

390

14-

Length

( L )

mm

4150

15-

Width

( E )

mm

2050

16-

Height

( H )

mm

2350

17-

Weight

kg

9500

Serial No.

Part Description

Brief instruction/ Orignal

Other

1-

NC Control system

■P40 NC System □E21s NC System

2-

Electrical components

Schneider Electrical from French

Travel switch & Limit switch

3-

Main Motor

Siemens from Germany Brand

4-

Back Gauge & RAM Drive

Inverter from Taiwan delta

Accurate positioning control

5-

Foot switch

KACON from South Korea

6-

Hydraulic System

Bosch-Rexroth form Germany

Sealing Element

PARKER from U.S.A Brand

7-

Tubing connector

EMB form Germany Brand

8-

Ball screw/ Polished rod

HIWIN from TaiWan Brand

2. Equipment

1-

Pneumatic sheet support system

□Yes             ■No

2-

Rear sheet sliding plates

■Yes             □No

Fixed type(metal)

3-

Angle Gauge

□Yes             ■No

4-

Squaring Arm(800mm)

■Yes             □No

5-

Inverter accurate control

■Yes             □No

6-

Light curtains for finger Protection

■Yes             □No

Reset button

7-

Back safety Sensors

■Yes             □No

8-

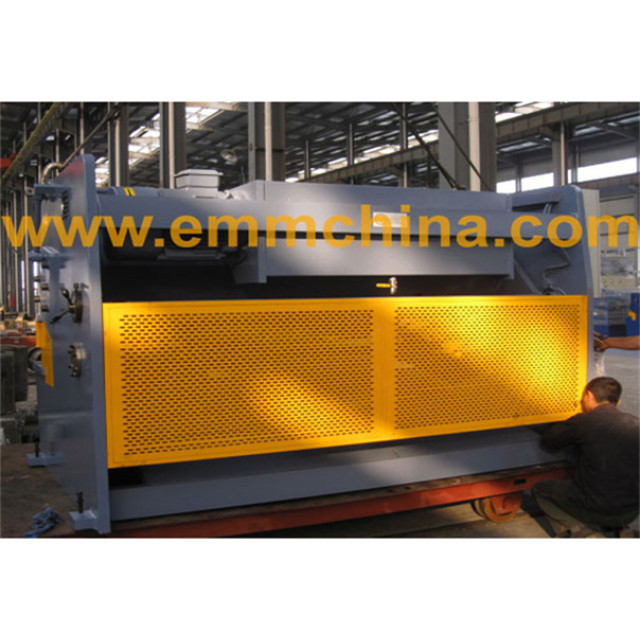

Back metal fence Safety

■Yes             □No

9-

Safety standards

■CE    □CSA    □NR-12    □OSHA
