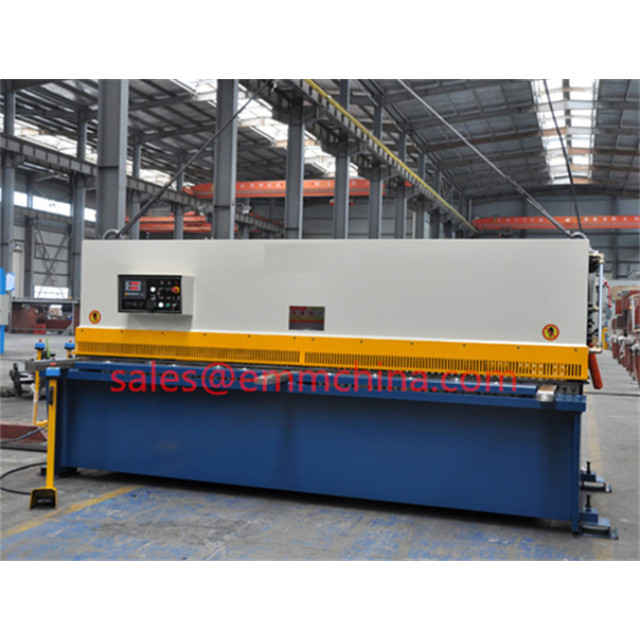

The frame is entirely welded with steel plates, and treated to relive stress by tempering.
Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder
The portable and prompt adjustment of the blades gap and the value of gap are indicated by digital , convenient and fast.
Equipped with lighting-alignment, so as to align when shearing,.The stroke of knife beam can be adjusted in stepless mode
Protection fence to ensure the operation satety.
The display devices o f the backgauge value and the shearing times are on the front of the machine.
The frame is entirely welded with steel plates, and treated to relive stress by tempering.
Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder
The portable and prompt adjustment of the blades gap and the value of gap are indicated by digital , convenient and fast.
Equipped with lighting-alignment, so as to align when shearing,.The stroke of knife beam can be adjusted in stepless mode
Protection fence to ensure the operation satety.
The display devices o f the backgauge value and the shearing times are on the front of the machine.
|
Model |
Cutting szie |
Shearing anle |
Number of stroke mm |
Backguagerangemm |
Throat depth mm |
Motor power kw |
Overall dimensions mm |
|
4x2500 |
4x2500 |
1°30 |
≥22 |
20-600 |
85 |
5.5 |
3100x1430x1450 |
|
4x3200 |
4x3200 |
1°30 |
≥18 |
20-600 |
85 |
5.5 |
3800x1555x1500 |
|
4x4000 |
4x4000 |
1°30 |
≥12 |
20-600 |
85 |
5.5 |
4600x1705x1600 |
|
6x2000 |
6x2000 |
1°30 |
≥16 |
20-600 |
145 |
7.5 |
2650x1500x1600 |
|
6x2500 |
6x2500 |
1°30 |
≥16 |
20-600 |
145 |
7.5 |
3150x1500x1600 |
|
6x3200 |
6x3200 |
1°30 |
≥12 |
20-600 |
145 |
7.5 |
3850x1600x1620 |
|
6x4000 |
6x4000 |
1°30 |
≥10 |
20-800 |
145 |
7.5 |
4650x1850x1700 |
|
6x6000 |
6x6000 |
1°30 |
≥7 |
20-800 |
140 |
11 |
6780x2450x2100 |
|
8x2500 |
8x2500 |
1°30 |
≥12 |
20-600 |
145 |
11 |
3180x1680x1700 |
|
8x3200 |
8x3200 |
1°30 |
≥10 |
20-600 |
145 |
11 |
3880x1830x1720 |
|
8x4000 |
8x4000 |
1°30 |
≥10 |
20-600 |
145 |
11 |
4680x1980x1780 |
|
8x5000 |
8x5000 |
1°30 |
≥8 |
20-800 |
300 |
18.5 |
5800x2390x2200 |
|
8x6000 |
8x6000 |
1°30 |
≥6 |
20-800 |
300 |
18.5 |
6820x2260x2080 |
|
12x2500 |
12x2500 |
2° |
≥10 |
20-800 |
300 |
18.5 |
3300x2030x1840 |
|
12x3200 |
12x3200 |
2° |
≥9 |
20-800 |
300 |
18.5 |
4000x2100x1940 |
|
12x4000 |
12x4000 |
2° |
≥8 |
20-800 |
300 |
18.5 |
4800x2270x2000 |
|
12x6000 |
12x6000 |
2° |
≥4 |
20-1000 |
320 |
30 |
6940x3045x2600 |
|
16x2500 |
16x2500 |
2° |
≥9 |
20-800 |
315 |
22 |
3310x2240x2000 |
|
16x3200 |
16x3200 |
2° |
≥8 |
20-800 |
320 |
22 |
4030x2390x2100 |
|
16x4000 |
16x4000 |
2° |
≥7 |
20-1000 |
320 |
30 |
3370x2545x2250 |
|
16x6000 |
16x6000 |
2° |
≥4 |
20-1000 |
320 |
37 |
3450x2650x2800 |
|
20x2500 |
20x2500 |
2°30 |
≥5 |
20-1000 |
325 |
30 |
3370x2650x2800 |
|
25x2500 |
25x2500 |
3° |
≥5 |
20-1000 |
325 |
37 |
3450x2650x2800 |
|
25x3200 |
25x3200 |
3° |
≥5 |
20-1000 |
325 |
37 |
4130x3100x2800 |
|
32x2500 |
32x2500 |
3°30 |
≥4 |
20-1000 |
350 |
45 |
3550x3100x2800 |
