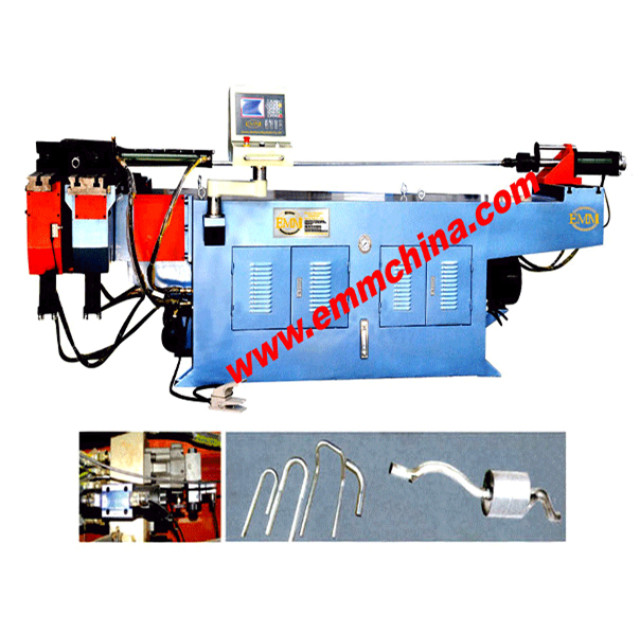

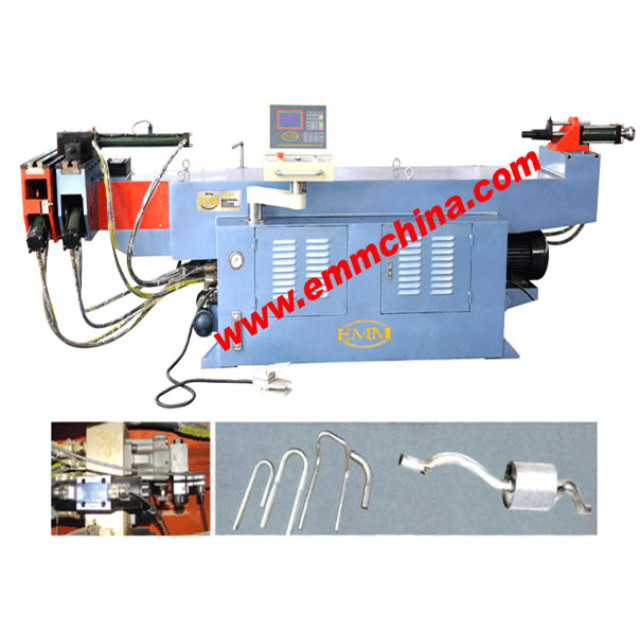

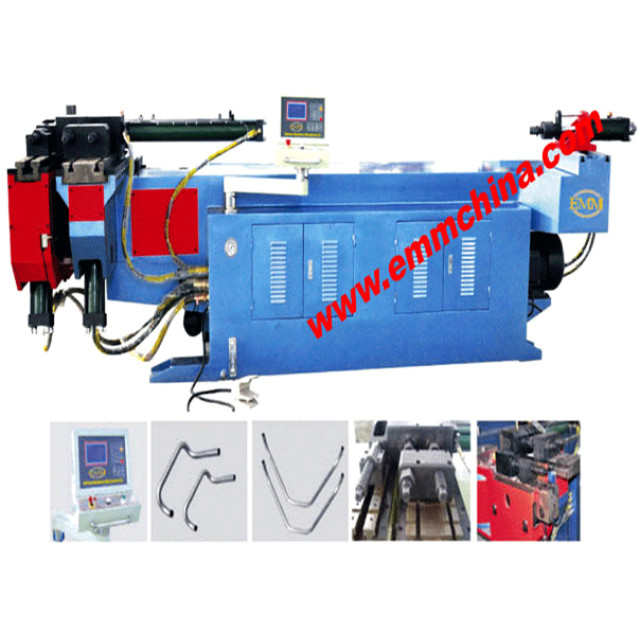

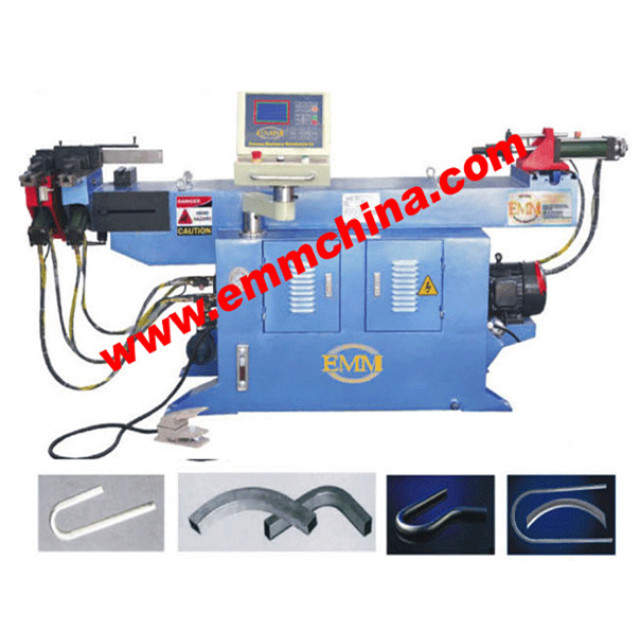

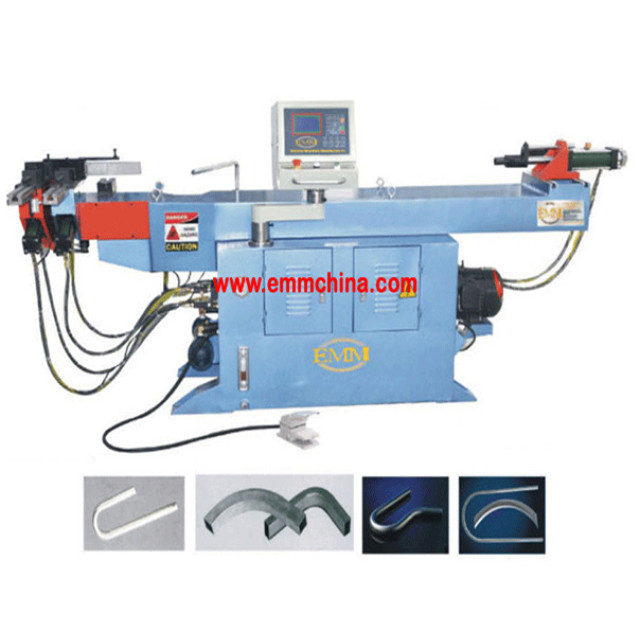

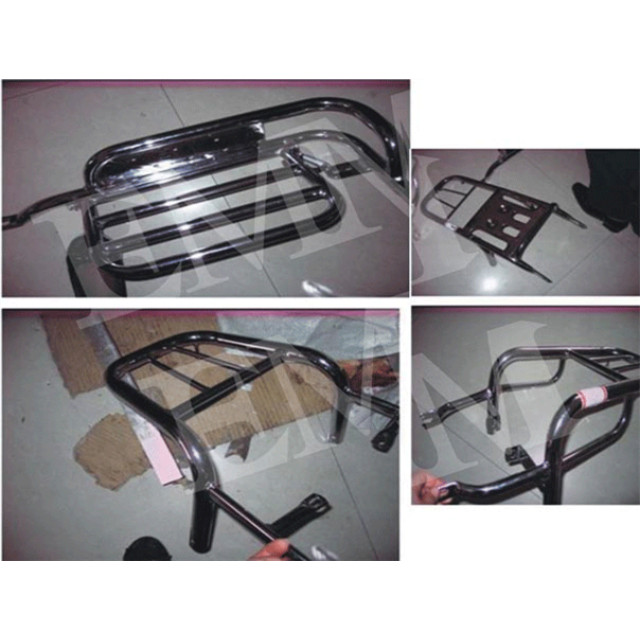

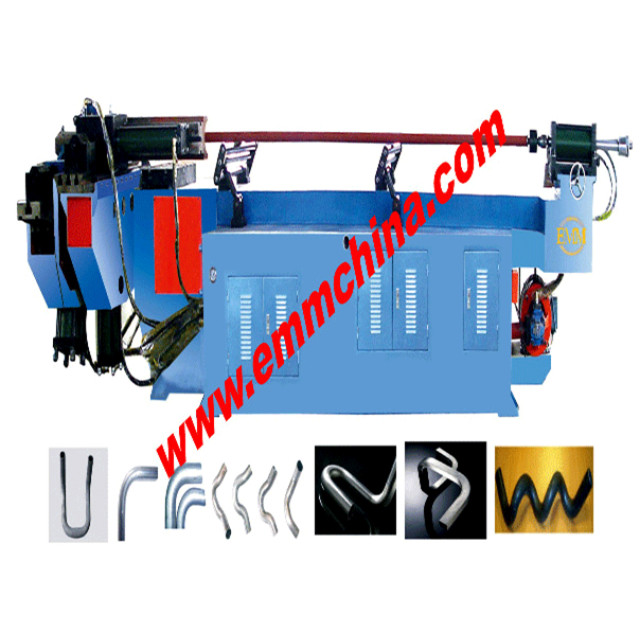

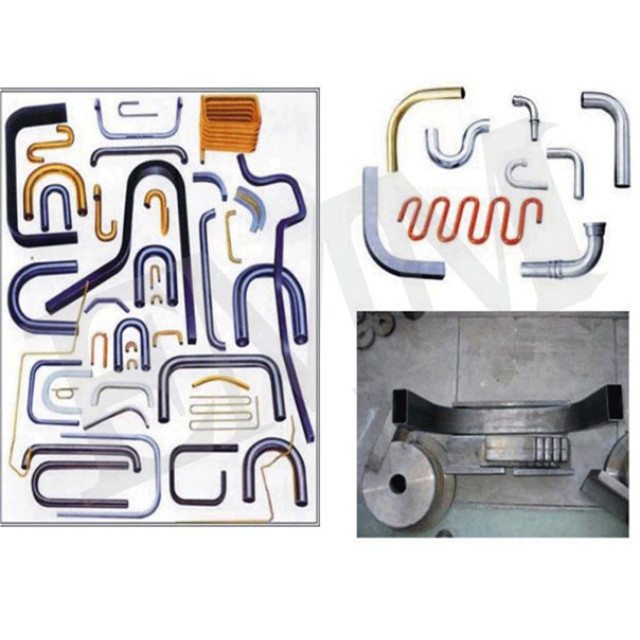

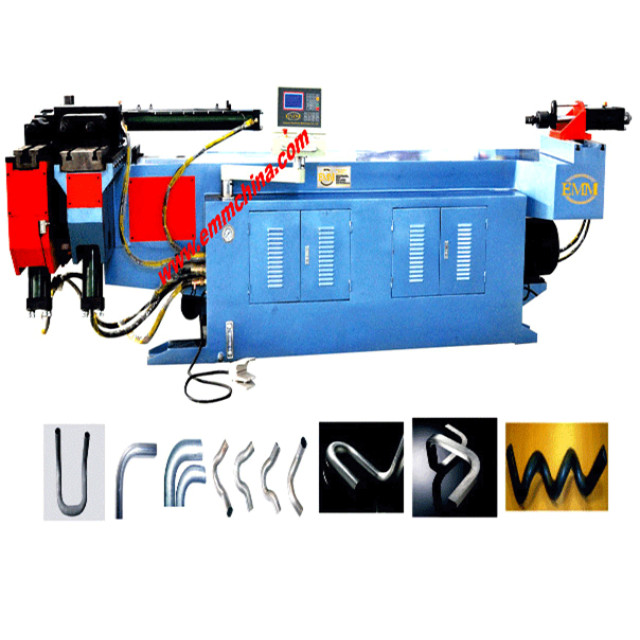

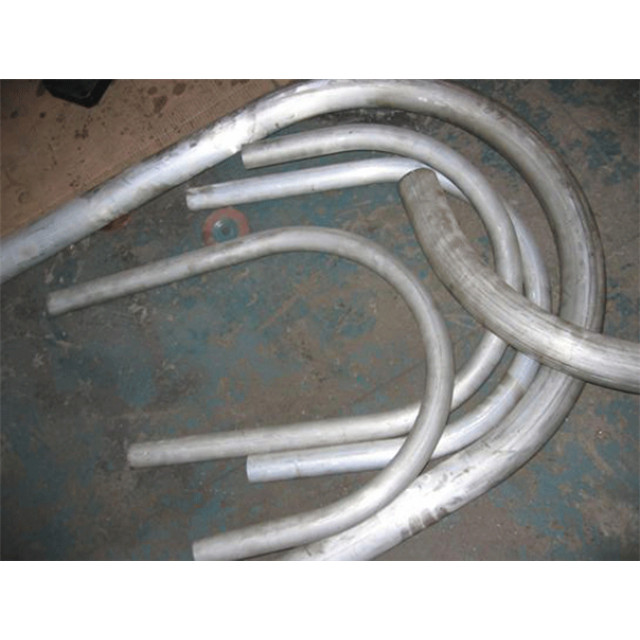

High performance middle size pipe bending machine, NC control, multi-groups program and multi angles setting, makes your operation and setting convenient. Widely used in mass production and standard products, such as: blast pipe, seat, fender guard, and all the steel furniture.
Technical Specification and Capacity:
|
Specification/Model |
Unit |
EM38 |
EM50 |
EM63 |
EM75 |
EM89 |
EM100 |
|
Max bending capability |
mm |
Φ38*2 |
Φ50*3 |
Φ63*4 |
Φ75*4 |
Φ89*8 |
Φ100*8 |
|
Max bending radius |
mm |
R260 |
R350 |
R350 |
R400 |
R450 |
R500 |
|
Min bending radius |
mm |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
|
Max bending angle |
degree |
190 |
|||||
|
Max effective distance of mandrel |
mm |
1600 |
2200 |
2600 |
2800 |
3500 |
3600 |
|
Control System |
|
NC Control |
|||||
|
Max elbow bend pipe |
unit |
16 |
|||||
|
Max storable sections |
unit |
16*16 |
|||||
|
Motor power |
kw |
4 |
5.5 |
5.5 |
7.5 |
11 |
15 |
|
Max. Hydraulic Pressure |
mpa |
12 |
12 |
12 |
12 |
14 |
14 |
|
Hydraulic System Control |
|
Electromagnetic Valve |
|||||
|
Oil Tank Capacity |
L |
110 |
150 |
220 |
250 |
260 |
300 |
|
Measurement |
mm |
2600*600*1000 |
3000*700*1030 |
3500*750*1100 |
4000*1000*1100 |
4550*1300*1300 |
5000*1600*1200 |
|
Weight of Machine |
kg |
750 |
1220 |
1500 |
2000 |
3500 |
5000 |
|
Specification/Model |
Unit |
EM110 |
EM115 |
EM130 |
EM168 |
EM189 |
EM219 |
|
Max bending capability |
mm |
Φ110*8 |
Φ115*10 |
Φ130*8 |
Φ168*14 |
Φ189*14 |
Φ219*16 |
|
Max bending radius |
mm |
R500 |
R520 |
R520 |
R750 |
R750 |
R800 |
|
Min bending radius |
mm |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
According to the pipe diameter |
|
Max bending angle |
degree |
190 |
|||||
|
Max effective distance of mandrel |
mm |
3700 |
4500 |
4500 |
5000 |
5500 |
6000 |
|
Control System |
|
NC Control |
|||||
|
Max elbow bend pipe |
unit |
16 |
|||||
|
Max storable sections |
unit |
16*16 |
|||||
|
Motor power |
kw |
15 |
15 |
22 |
22 |
30 |
37 |
|
Max. Hydraulic Pressure |
mpa |
14 |
14 |
14 |
16 |
16 |
16 |
|
Hydraulic System Control |
|
Electromagnetic Valve |
|||||
|
Oil Tank Capacity |
L |
320 |
350 |
400 |
650 |
700 |
800 |
|
Measurement |
mm |
5000*1400*1200 |
5500*1600*1200 |
6100*1600*1300 |
7100*2000*1800 |
8000*1800*1660 |
8800*2450*1980 |
|
Weight of Machine |
kg |
6000 |
7000 |
8000 |
15000 |
20000 |
35000 |
