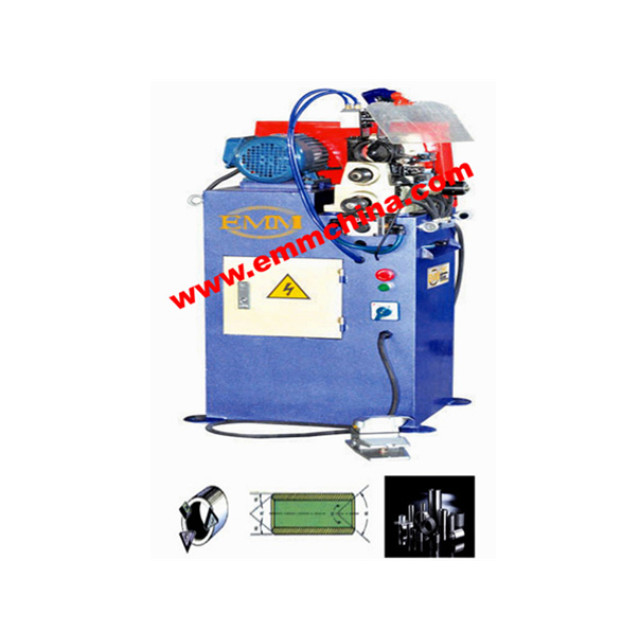

Semi-automatic accurate chamfering machine

Semi-automatic accurate chamfering machine. Manual feeding, automatic clamping, automatic forwarding and returning.

Product Detail

Features:
Semi-automatic accurate chamfering machine. Manual feeding, automatic clamping, automatic forwarding and returning.
1. Gripped die and blade surface are designed elaborately to make sure that the processed object and centre line of blade surface maintain still. It can equably finish the process of tube end and its outer angle, inner angle at one time.
2. It can make use of variety of strap wheel to transform several rotating speed and guarantee the longest use life of blade according to different metal blade.
3. Two phase of blade advance speed can save the work hours and is easy to adjust slowness of speed to reach perfect process.

Technology parameters:

Model	PV52	AC80
Main motor power	0.75KW	2.2KW
Main shaft speed	According to different material to choose rotating speed by changing leather belt
Processing diameter	9-52(mm)	30-82(mm)
Processing external angle diameter	9-25(mm)	20-50(mm)
Compressed air	6-8KGS/cm²	6-8KGS/cm²
Compressed air	60ml/min	120ml/min
Standard attachment	1. Mainframe 2. One tongs 3. One standard tool bit 4. One group blade
Special attachment	1. Different size tongs 2. Special tool apron and blade 3. Special tool bit

Note: PV52 need special small tool bit and blade when process pipe with diameter 9mm-18mm
