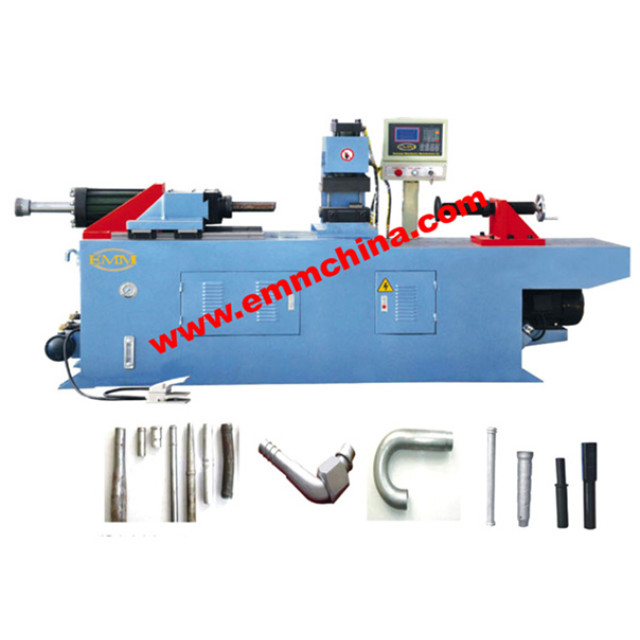

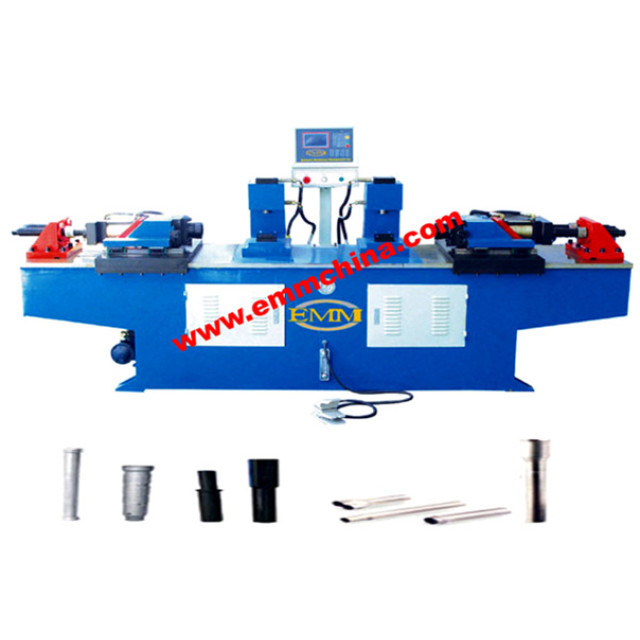

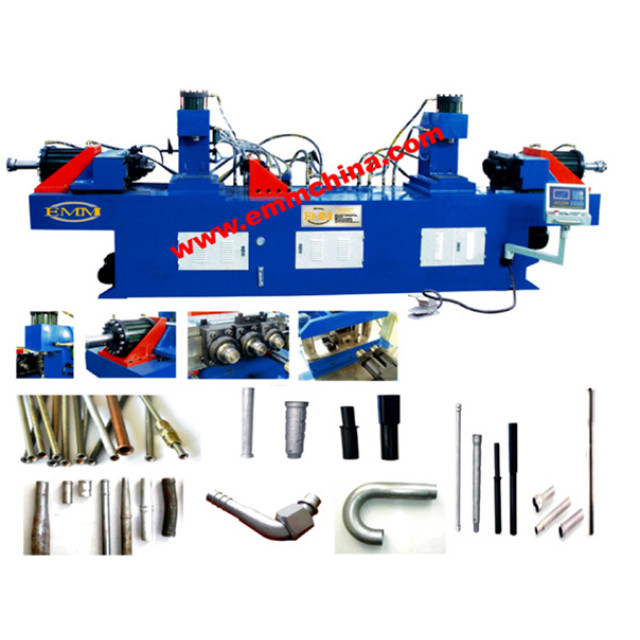

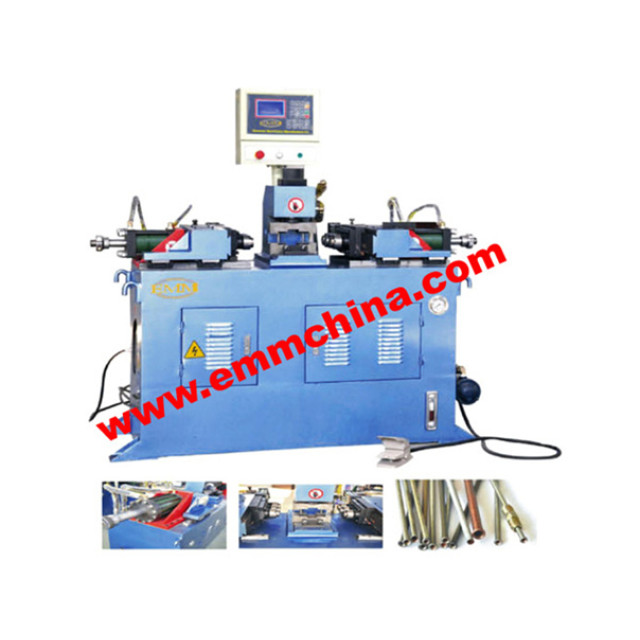

Pipe end forming machine, with the straight guide roller as the carrier, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in iron pipes, furniture, automobile air conditioners and fuel oil pipes.
TechnicalSpecification and Capacity:
Specification/Model |
EF401H-2S |
EF601H-2S |
EF801H-2S |
EF1001H-2S |
EF1101H-2S |
Max processing capability |
Φ40*2.0t |
Φ60*2.0t |
Φ80*2.0t |
Φ100*2.0t |
Φ110*2.0t |
Max processing length |
100mm |
130mm |
150mm |
150mm |
150mm |
Oil pressure |
4.5Mpa |
12Mpa |
12Mpa |
14Mpa |
14Mpa |
Working speed |
100mm in 3-4sec |
100mm in 3-4sec |
130mm in 5-6sec |
140mm in 6-7sec |
140mm in 8-9sec |
Size |
200*55*130cm |
200*60*140cm |
290*70*140cm |
300*75*150cm |
350*90*180cm |
Weight |
1100kg |
1250kg |
1600kg |
1800kg |
2500kg |
