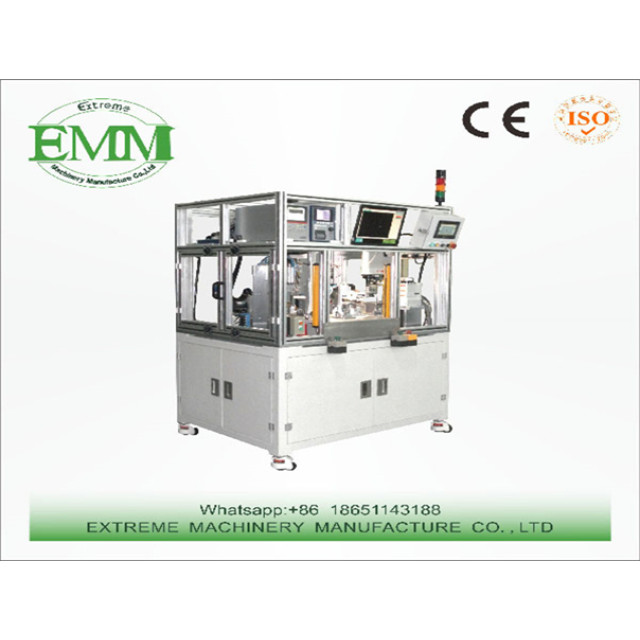

The device is used for MS12 chip assembly, inspection and soldering. Equipped with Yamaha robot hand assembly chip, industrial camera detection chip assembly quality, Miaji welding machine for chip pin welding, NG product automatic cutting, NG products can be reworked and can not be reworked two types of equipment, Alarm prompt
Process flow：
1, manually take semi-finished products to the turntable carrier.
2, IC through the suction material and assembled into the plastic body.
3, CCD detection ASIC location is correct.
4, IC pin is automatically welded.
5, artificially removed (bad products automatically discharged).
Equipment main components and related technical parameters：
|
Main components and specification |
set |
|
1.ASIC feed system |
One set |
|
2.ASIC assembly institutions |
One set |
|
3.CCD test system |
One set |
|
4.Welding（including the cooling system） |
One set |
|
5. Electrode cleaning agency |
One set |
|
6. Non-conforming eduction institutions |
One set |
