Machine adopts manual, full automatic and matches emergency off device function. Hydraulic feed-in and tight clamping work. Step less adjustable, automatic power off and protect the equipment after finished cutting.
The main features:

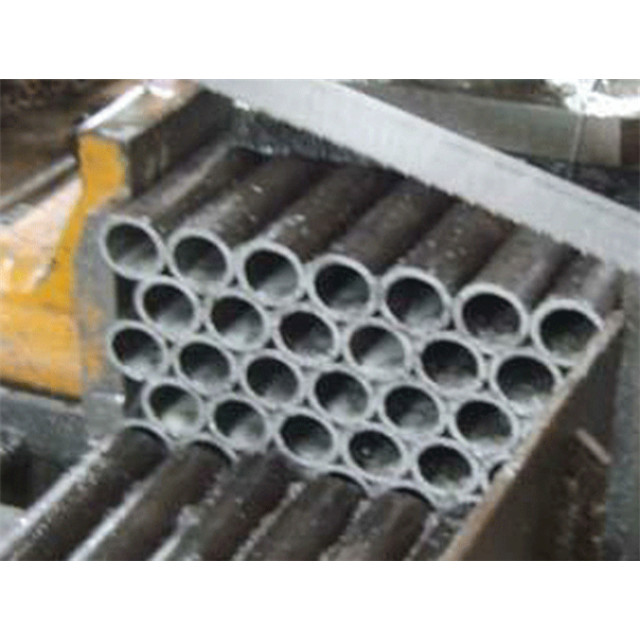

1. CNC band saw machine series apply to cutting large batch same material , and the machine have the advantage of high cutting speed , high efficiency , work stable , energy saving and saving material. Can install a small beam clamping device.
2. Machine adopts manual, full automatic and matches emergency off device function. Hydraulic feed-in and tight clamping work. Step less adjustable, automatic power off and protect the equipment after finished cutting.

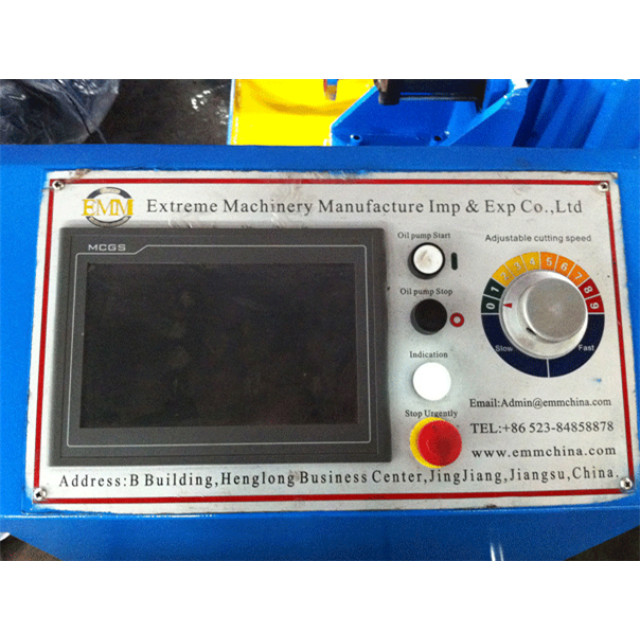

3. Man-machine interface replace the function of traditional control panel, digital setting, indicator lamp etc. display the equipment state, operation instruction and parameter setting at any time. All the setting are finished through the man-machine interface and all the information are English, easy to operate.
4. PLC (programmable logic controller) set the cutting / sawing whole process automatically.
5. Feeding length of material was controlled by grating ruler tolerance less than 0.2 mm, can set 5 groups sawing parameter by once.
6. Can increase the rotating angle function as customers’ requests.

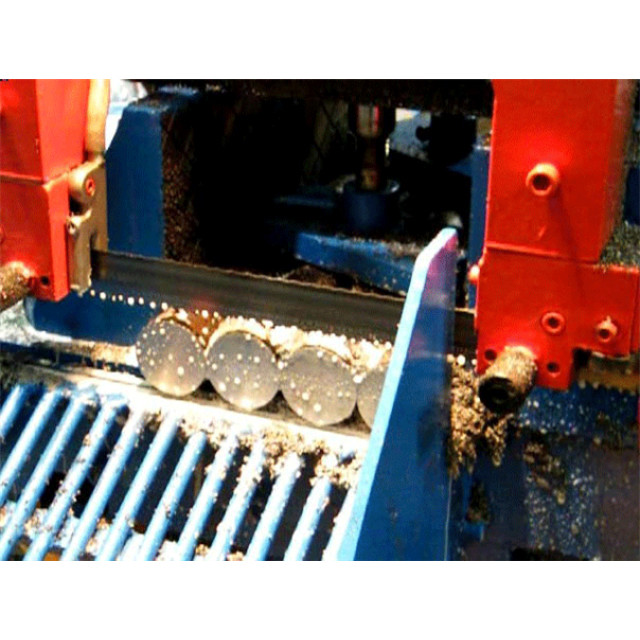

7. CNC Cutting Machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.With the advantages of narrow saw cut, saving material, energy-saving, the structure of the machine tools is reasonable and reliable performance and high precision.
|
Model/Name |
Cutting capacity |
Saw blade speed line |
Working way clamping |
Specifications band saw |
The main electrical power |
Pump motor power |
Package size |
|

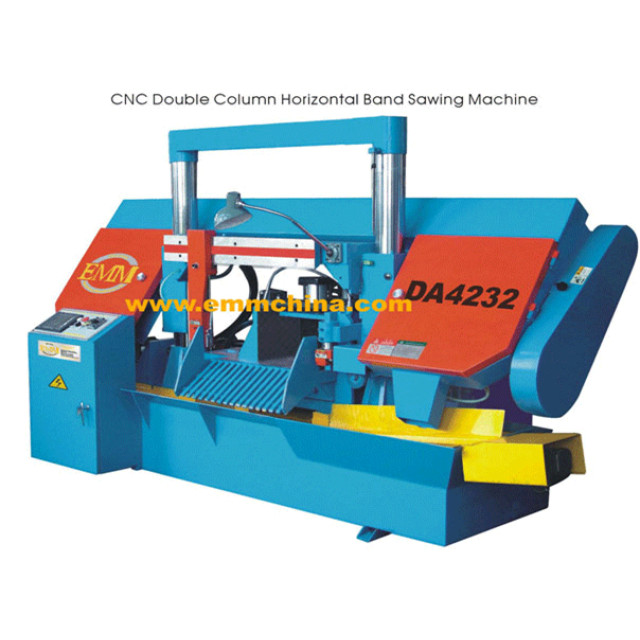

DA4232 |
Round 320mm, plate 320*320mm |
22, 40, 60 m/min (3 steps) |
hydraulic |
1.1*34*4470mm |
4.0KW,380V,50HZ |
0.75KW,380V,50HZ |
2000*2900*1600 mm |
|
DA4235 |
Round 350mm, plate 350*350mm |
22, 40, 60 m/min (3 steps) |
hydraulic |
1.1*34*5100mm |
4.0KW,380V,50HZ |
0.75KW,380V,50HZ |
3070*2150*1950 mm |
|
DA4240 |
Round 400mm, plate 600mm |
22, 40, 60 m/min (3 steps) |
hydraulic |
1.3*41*5800mm |
4.0 KW |
1.1KW |
2600*1800*1900 mm |
|
DA4250 |
Round 500mm, plate 500mm |
22, 40, 60 m/min (3 steps) |
hydraulic |
1.3*41*6430mm |
4.0 KW |
1.5KW |
3100*2150*2150 mm |
|
DA4265 |
Round 650mm, plate 650mm |
step less adjustable |
hydraulic |
1.3*41*6860mm |
7.5KW |
1.5KW |
3600*2200*2100 mm |
|
DA4280 |
Round 800mm, plate 800*1200mm |
22, 40, 60 m/min (3 steps) |
hydraulic |
1.6*67****（as per the actual situation） |
11.0 KW |
2.2KW |
5000*2000*2800 mm |
|
DA42100 |
Round 500-1000mm |
step less adjustable |
hydraulic |
1.6*67*9850mm |
11.0 KW |
2.2KW |
4800*2400*2900 mm |
|
DA42120 |
Round 1200mm, plate 1200mm |
step less adjustable |
hydraulic |
1.6* 67*11800 mm |
15kW,380V,50HZ |
3.75kW,380V,50HZ |
5200*1900*3000 mm |
|
DA4230-X |
Round 300mm, plate 300*300mm |
22, 40, 60 m/min (3 steps) |
hydraulic |
1.1*34*3880 mm |
3.0KW,380V,50HZ |
0.75KW,380V,50HZ |
1800*1800*1500 mm |
