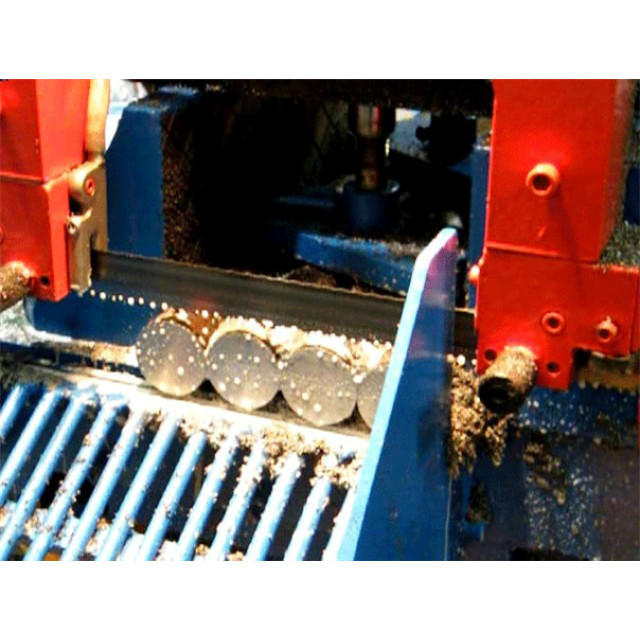

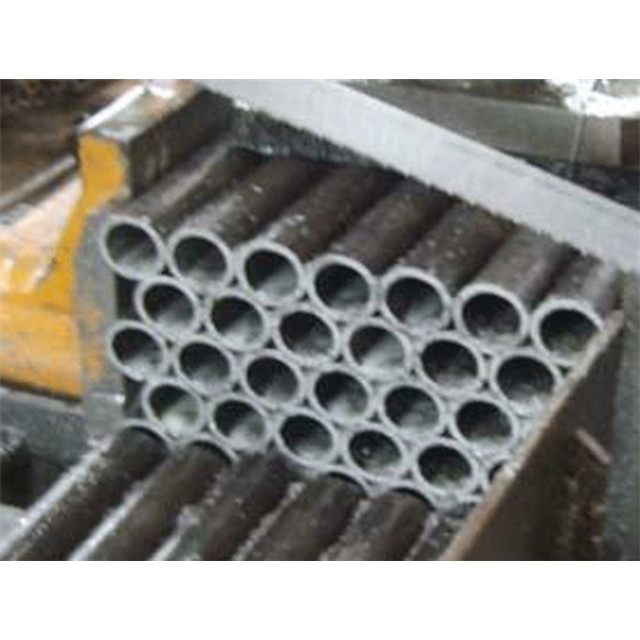

Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.
The structure of the machine tools is reasonable and reliable performance and high precision.
It is the ideal equipment for material sizing of medium /small lot.
The main features:
Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.
The structure of the machine tools is reasonable and reliable performance and high precision.
It is the ideal equipment for material sizing of medium /small lot.
Specification:
|
Model/Name |
S4028 |

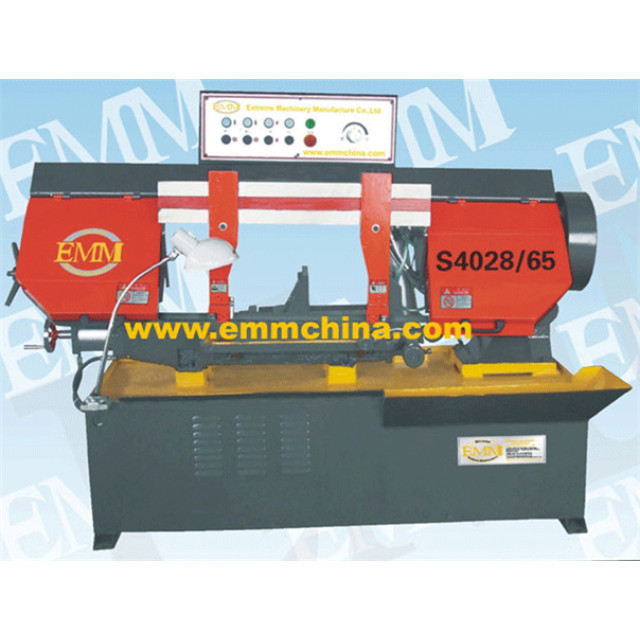

S4028/65 |

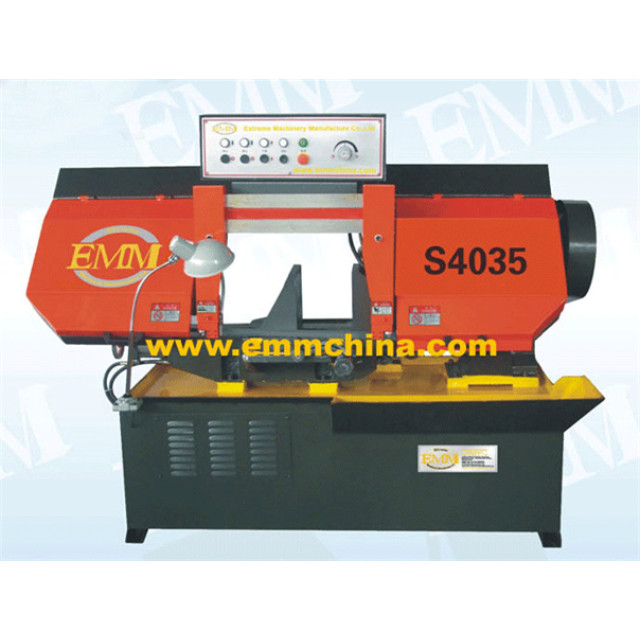

S4035 |
|
Cutting capacity |
round material 280mm , plate 400mm |
round material 280mm , plate 650mm |
round material 350mm , plate 400mm |
|
Saw blade speed line |
three steps 22/40/60 m/min |
three steps 25/40/70 m/min |
three steps 25/40/70 m/min |
|
Working way clamping |
hydraulic and manual |
hydraulic and manual |
hydraulic and manual |
|
Specifications band saw |
0.9*27*3505 mm |
1.1*34*3880 mm |
1.1*34*4115 mm |
|
The main electrical power |
2.2KW 380V 50HZ |
3.0KW 380V 50HZ |
3.0KW 380V 50HZ |
|
Pump motor power |
0.55KW 380V 50HZ |
0.55KW 380V 50HZ |
0.55KW 380V 50HZ |
|
Package size |
1800*950*1400mm |
2000*950*1400 mm |
2100*1100*1550 mm |
