Hydraulic control the cutting speed;
Large scale band saw machine adopt dual cylinders control, cutting/sawing stable ,high precision;
Except the vertical cutting function, the saw log can rotate 0till 45 degree by manual ;
Can customized hydraulic tension saw blade as requests;
Can customized NC automatic machine.
The main features:

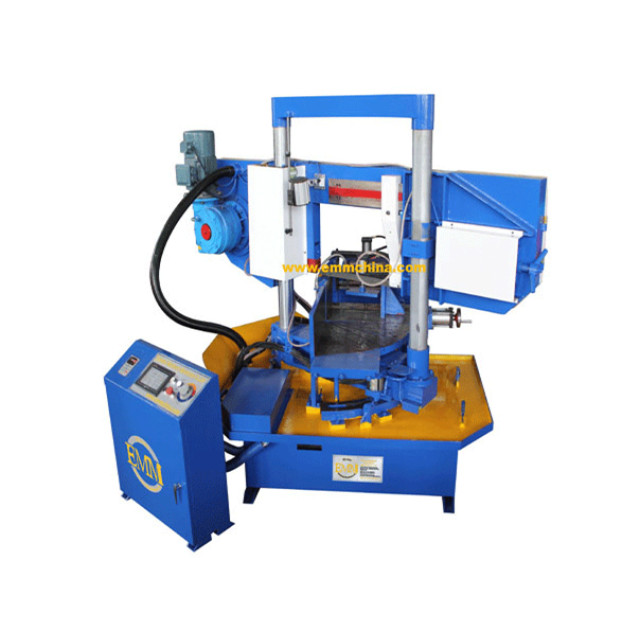

Rotating metal band saw machine is one of the most advanced band saw machine in domestic market.

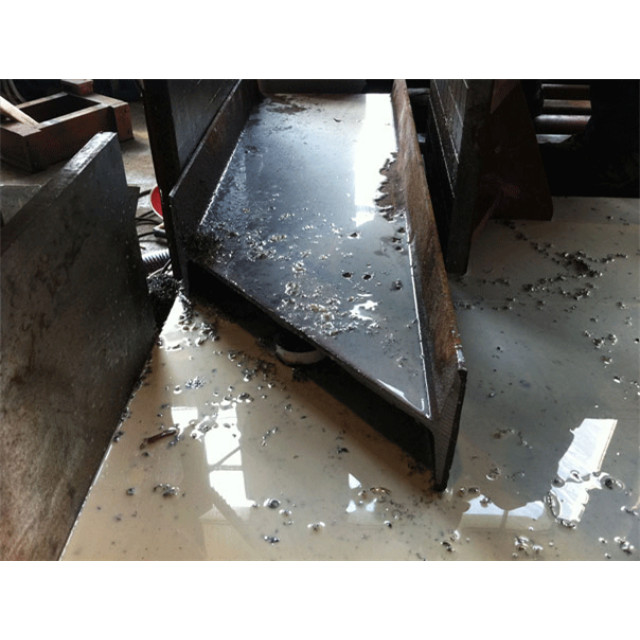

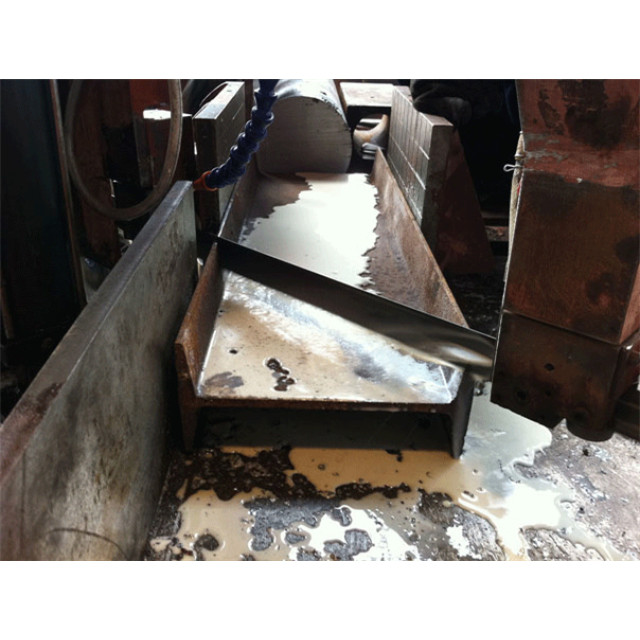

except the vertical cutting function the saw log can rotating 0till 45 degree by manual implementation of oblique , this band saw machine apply to the channel steel , H steel ,and other special-shaped steel ,round steel , pipe ,plate metal and other metal materials , compact and rational layout ,easy to operate ,and convenient to maintenance .
Hydraulic control the cutting speed
Large scale band saw machine adopt dual cylinders control, cutting/sawing stable ,high precision
Except the vertical cutting function, the saw log can rotate 0till 45 degree by manual
Can customized hydraulic tension saw blade as requests
Can customized NC automatic machine
Specification:
|
Model/Name |

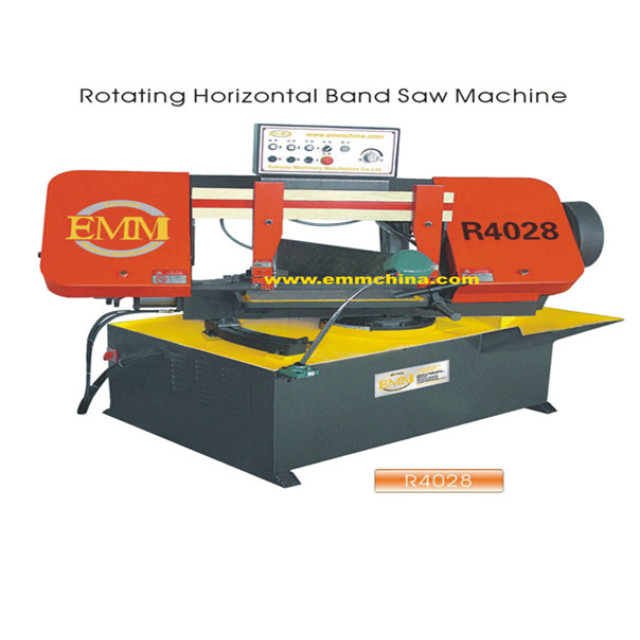

R4028 |
R4235 |
R4240 |

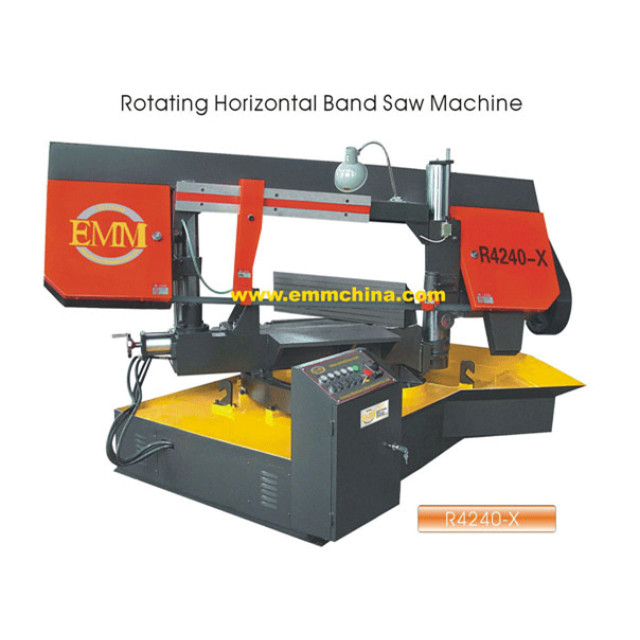

R4240-X |
R4250 |

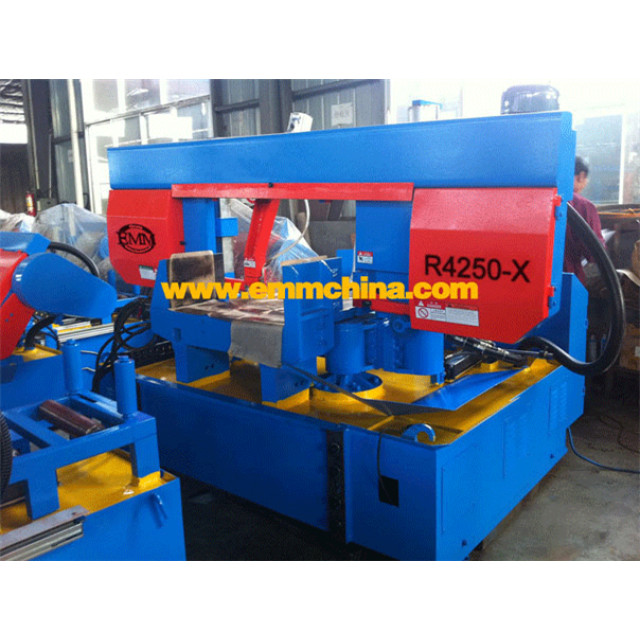

R4250-X |

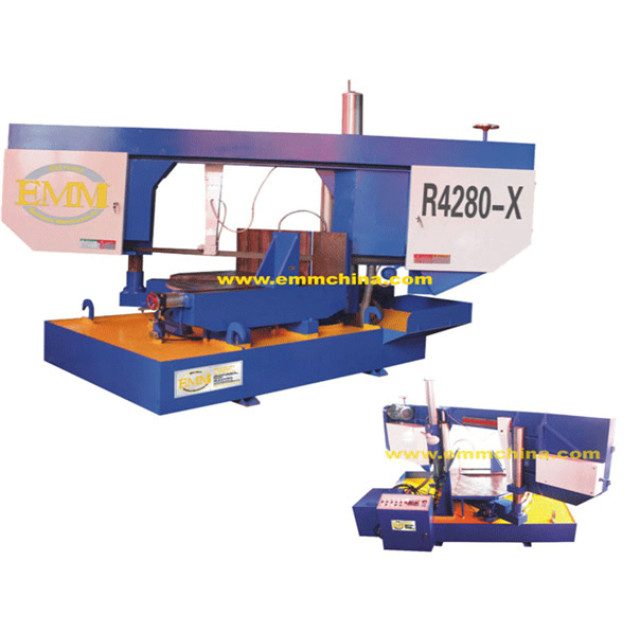

R4280-X |
|
Cutting capacity |
Φ280mm |
90°: 400mm 45°: 230mm |
Φ400mm, plate 350mm |
Φ400mm, plate 400mm |
Φ500mm, plate 400mm |
Φ500mm, plate 500mm |
Φ800mm, plate 800mm |
|
Saw blade speed line |
22, 40, 60 m/min (3steps) |
22/40/60 m/min (3 steps) |
22/40/60 m/min (3 steps) |
22/40/60 m/min (3 steps) |
22/40/60 m/min (3 steps) |
22/40/60 m/min (3 steps) |
18-60 m/min |
|
Working way clamping |
hydraulic/manual |
hydraulic |
hydraulic/manual |
hydraulic |
hydraulic |
hydraulic |
|
|
Specifications band saw |
0.9*27*3880mm |
1.1*3.4*4730mm |
1.3*41*4900mm |
1.3*41*5800mm |
1.3*41*6660mm |
1.3*41*6660mm |
1.3*41*8400mm |
|
The main electrical power |
2.2KW,380V,50Hz |
3KW,380V 50HZ |
4.0KW,380V,50HZ |
4.0KW,380V,50HZ |
4.0KW,380V,50HZ |
4.0KW,380V,50HZ |
7.5KW,380V,50HZ |
|
Pump motor power |
0.55KW,380V,50HZ |
0.55KW,380V, 50HZ |
1.1KW,380V,50HZ |
1.1KW,380V,50HZ |
1.5KW,380V,50HZ |
1.5KW,380V,50HZ |
1.5KW,380V,50HZ |
|
Package size |
2000*1000*1500mm |
2400*1300*1700mm |
2600*1500*1700mm |
3000*1800*1700mm |
3300*1900*2000mm |
3300*1900*2000mm |
5000*3200*2800mm |
