1. Feeding material adopt dual bilinear rail with high precision, low abrasion and long blade lifetime.
2. Work piece feeding adopt transducer step less adjustable, feeding stable.
3. Can install electronic automatic material feeding work table, convenient to feed in.....
The main features:
1. Feeding material adopt dual bilinear rail with high precision, low abrasion and long blade lifetime.
2. Work piece feeding adopt transducer step less adjustable, feeding stable.
3. Can install electronic automatic material feeding work table, convenient to feed in.
4. Work table design is reasonable, convenient to change saw blade.
5. Mainly used for cutting various kinds of ferrous metal and non-ferrous metal. The structure of the machine tools is reasonable and reliable performance and high precision.
6. We can also do OEM as customers requirements as the height, throat depth, length.
Specification:
|
Model/Name |

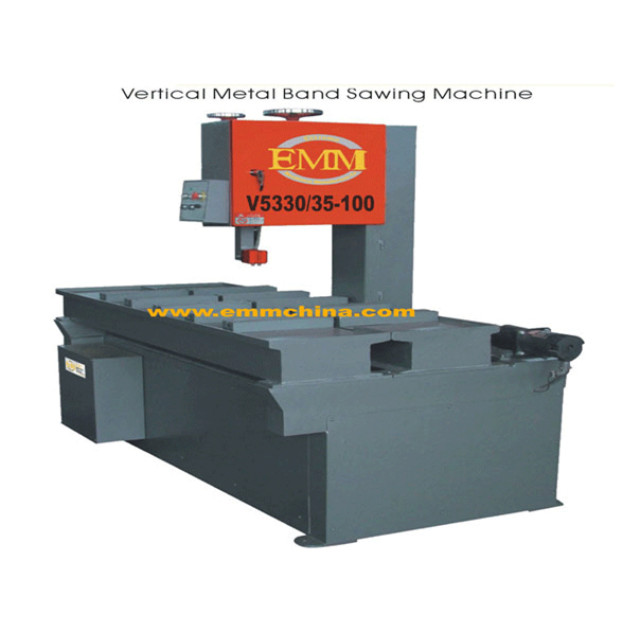

V5330*35-100 |

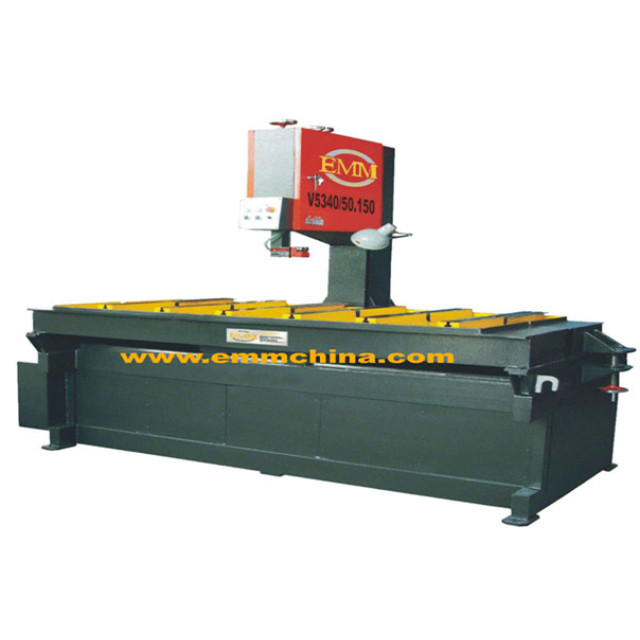

V5340*50-150 |

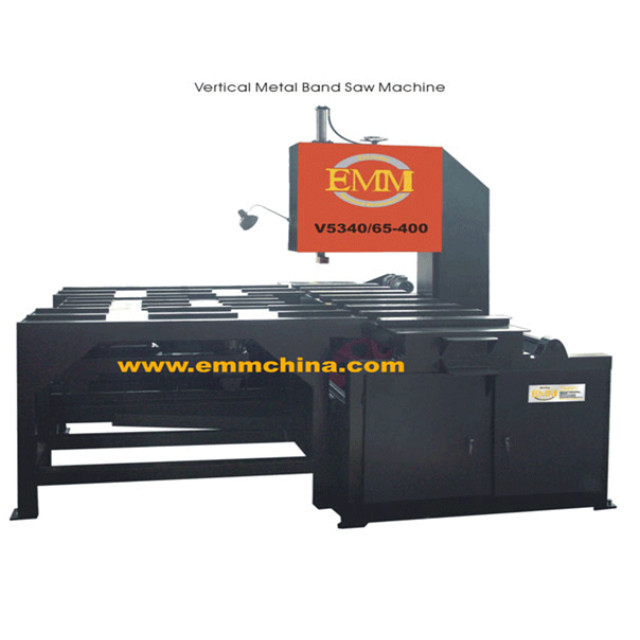

V5340*65-400 |

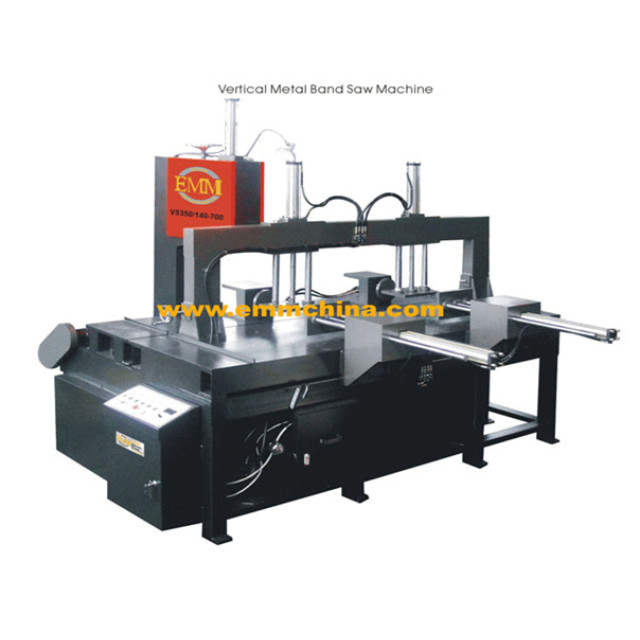

V5350*140-700 |
|
Cutting capacity |
300*350*1000mm |
400*500*1500mm |
400*650*4000mm |
500*1400*7000mm |
|
Saw blade speed line |
10-60 stepless speed |
10-60 stepless speed |
10-60 stepless speed |
13-79 stepless speed |
|
Working way clamping |
manual |
manual |
manual |
manual |
|
Specifications band saw |
0.9*27*3860 mm |
1.1*34*4400 mm |
1.3*54*5740 mm |
1.3*54*7690 mm |
|
The main electrical power |
1.8 KW 380V 50HZ |
4.0 KW 380V 50HZ |
5.5 KW 380V 50HZ |
5.5 KW 380V 50HZ |
|
Load-bearing capacity of the working table |
5000kg |
5000kg |
10000kg |
10000kg |
|
Package size |
2200*1100*1400 mm |
2400*1280*2300 mm |
6250*2500*3200 mm |
9000*4000*3000 mm |
