Man-machine interface replace the function of traditional control panel, digital setting, indicator lamp etc. display the equipment state all the time. Operation instruction and parameter setting. All the setting are finished through the man-machine interface and all the information are English, easy to operate. PLC (programmable logic controller) set the cutting / sawing whole process automatically.
The main features:
Band sawing machinery

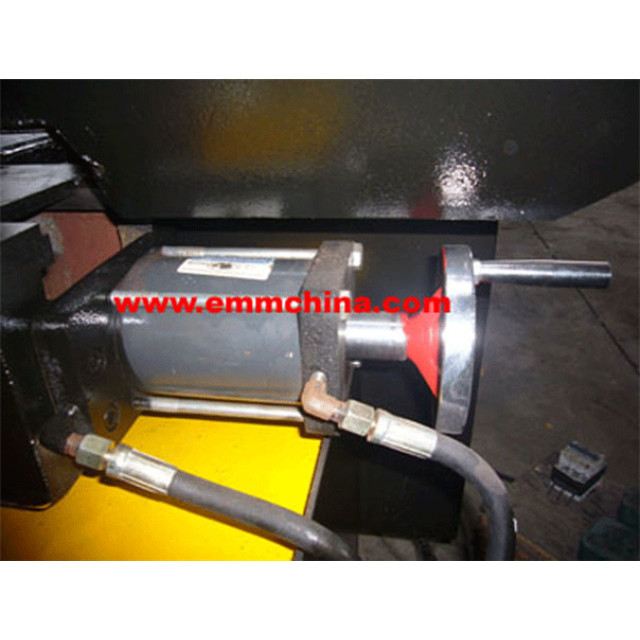

Machine adopts manual, full automatic and matches emergency off device function. Hydraulic feed-in and tight clamping work. step less , automatic power off and protect the equipment after finished cutting .
Man-machine interface replace the function of traditional control panel, digital setting, indicator lamp etc. display the equipment state all the time. Operation instruction and parameter setting. All the setting are finished through the man-machine interface and all the information are English, easy to operate.
PLC (programmable logic controller) set the cutting / sawing whole process automatically.
Feeding length of material was controlled by grating ruler tolerance less than 0.2 mm, can set 5 groups sawing parameter by once.
|
Model/Name |

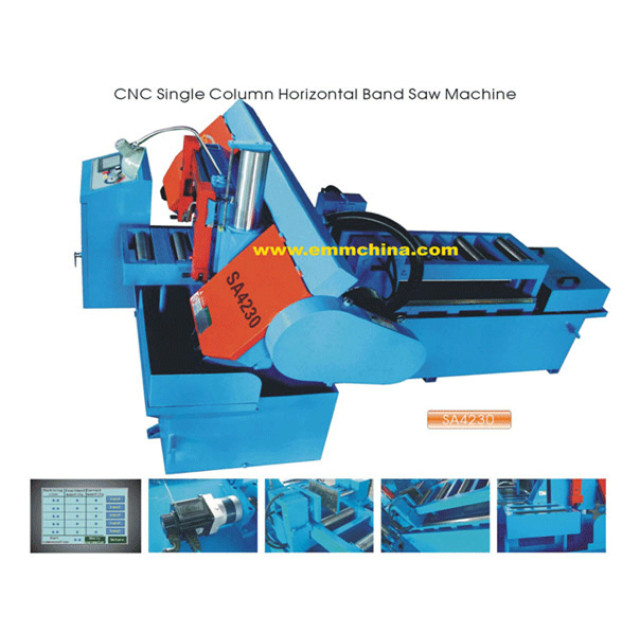

SA4230 |

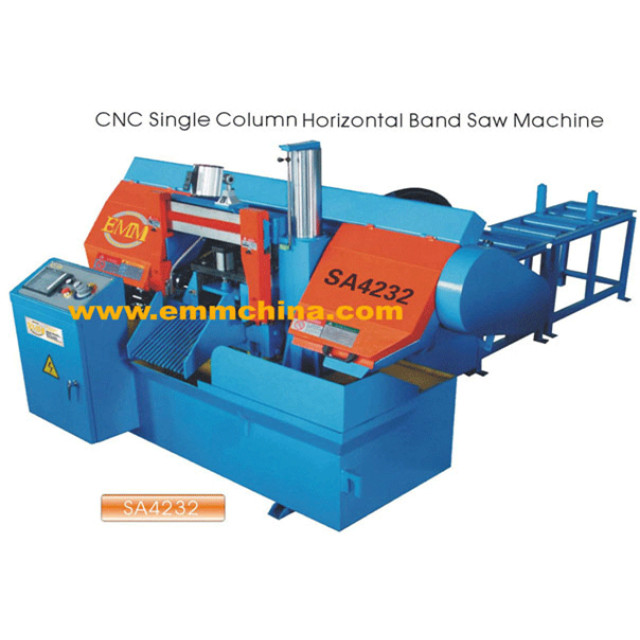

SA4232 |

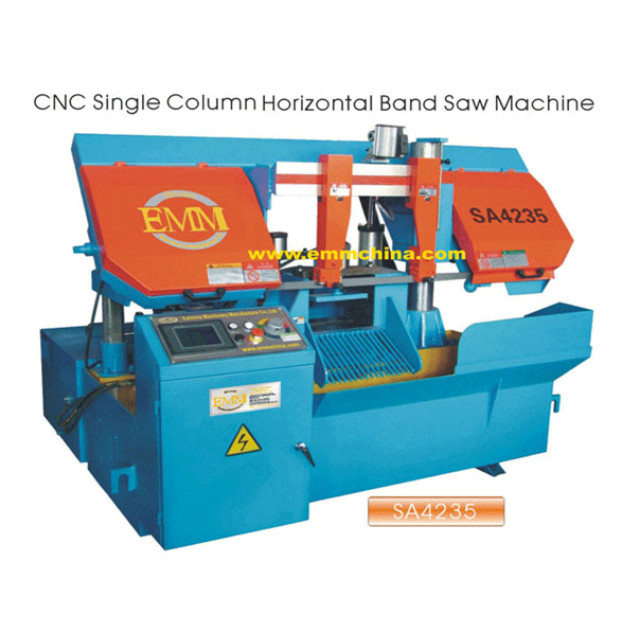

SA4235 |

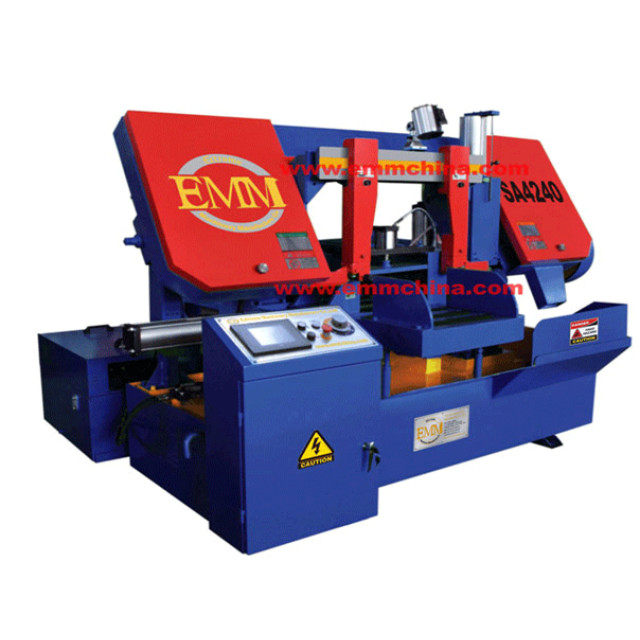

SA4240 |

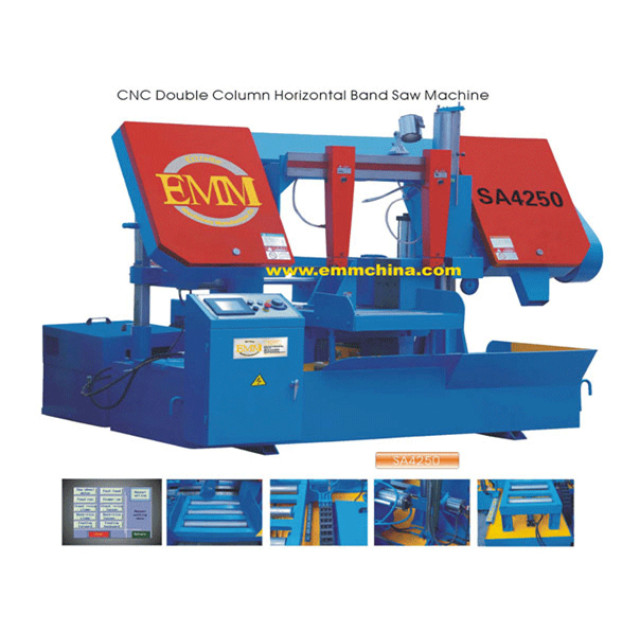

SA4250 |
|
Cutting capacity |
Round Φ300mm, plate300*400 mm |
Round Φ320mm, plate320*320mm |
Round Φ350mm, plate350*400mm |
Round Φ400mm, plate600mm |
Round Φ500mm, plate 500mm |
|
Saw blade speed line |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
|
Working way clamping |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
|
Specifications band saw |
1.1x 34x 3880 mm |
1.1x 34x 4060 mm |
1.1x 34x 4470mm |
1.3x 41x 4900mm |
1.3x 41x 5550mm |
|
The main electrical power |
3.0kW,380V,50HZ |
3.0kW,380V,50HZ |
3.0kW,380V,50HZ |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
|
Pump motor power |
0.75kW,380V,50HZ |
0.75kW,380V,50HZ |
0.75kW,380V,50HZ |
1.1kW,380V,50HZ |
1.5kW,380V,50HZ |
|
Package size |
2220*2170*1750 mm |
2000*2900*1600 mm |
2300*1700*1600 mm |
2600*1700*1700 mm |
2800*1800*1800 mm |
