Mainly used for cutting various kinds of ferrous metal and non-ferrous metal. With the advantages of narrow saw cut, saving material, energy-saving, the structure of the machine tools is reasonable and reliable performance and high precision. It is the ideal equipment for material sizing of medium /small lot.
The Main Features:

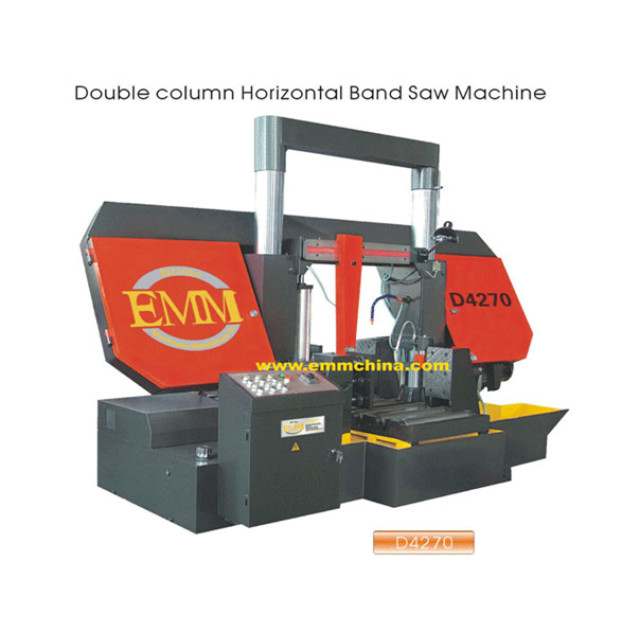

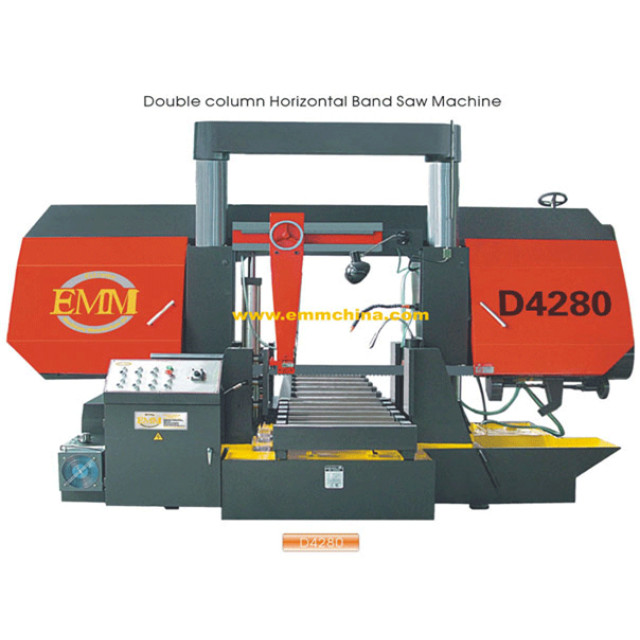

Double-Column metal band saw series have automatic and semi-automatic mode separate large and middle sized machine .It is mainly used for cutting ferrous and non-ferrous metal .It has the advantages of narrow sawing cut , material saving , energy saving ,high sawing precision ,convenient to operate and high production efficiency and so on .
Mainly used for cutting various kinds of ferrous metal and non-ferrous metal. With the advantages of narrow saw cut, saving material, energy-saving, the structure of the machine tools is reasonable and reliable performance and high precision. It is the ideal equipment for material sizing of medium /small lot.
|
Model/Name |
D4240 |
D4240/60 |
D4240/70 |
D4250 |
D4250/70 |
D4265 |
|
Cutting capacity |
Round Φ400mm, plate 500mm |
Round Φ400mm, plate 600mm |
Round Φ400mm, plate 700mm |
Round Φ500mm, plate 600mm |
Round Φ500mm, plate 700mm |
Round Φ650mm, plate 650mm |
|
Saw blade speed line |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
|
Working way clamping |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic and manual combination |
|
Specifications band saw |
1.3*41*5230 mm |
1.3*41*5430 mm |
1.3*41*5630 mm |
1.3*41*6230 mm |
1.3*41*6430 mm |
1.6*54*7320 mm |
|
The main electrical power |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
5.5kW,380V,50HZ |
|
Pump motor power |
1.1kW,380V,50HZ |
1.1kW,380V,50HZ |
1.1kW,380V,50HZ |
1.5kW,380V,50HZ |
1.5kW,380V,50HZ |
1.5kW,380V,50HZ |
|
Package size |
2600*1500*1700mm |
2700*1500*1700mm |
2800*1600*1700mm |
3000*1500*2000mm |
3100*1500*2000mm |
3500*1500*2150mm |
