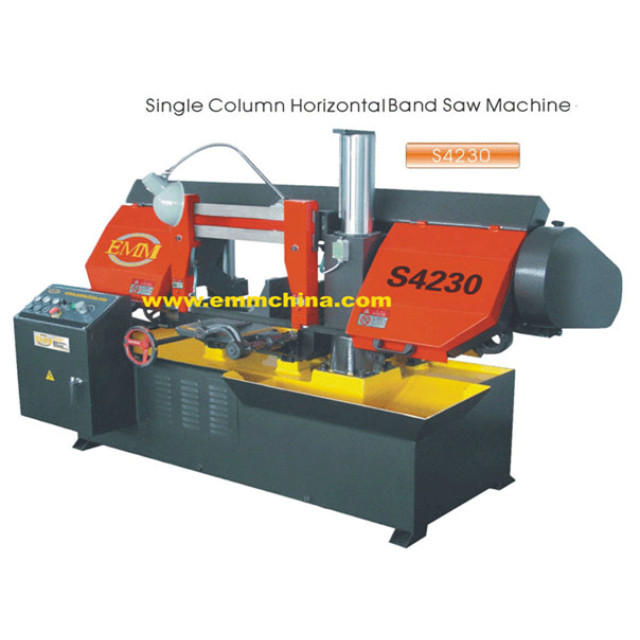

This kind of band sawing machine is mainly used for cutting various kinds of ferrous metal and non-ferrous metal. With the advantages of narrow saw cut, saving material, energy-saving, the structure of the machine tools is reasonable and reliable performance and high precision. This metal band saw machine is the ideal equipment for material sizing of medium /small lot.
The Main Features:
Hydraulic vice clamping
Hydraulic cylinder control the feeding speed
Scientific structure of blade guide to improve the blade lifetime
This kind of band sawing machine is mainly used for cutting various kinds of ferrous metal and non-ferrous metal. With the advantages of narrow saw cut, saving material, energy-saving, the structure of the machine tools is reasonable and reliable performance and high precision. This metal band saw machine is the ideal equipment for material sizing of medium /small lot.
|
Model/Name |
S4230 |
S4230/60 |

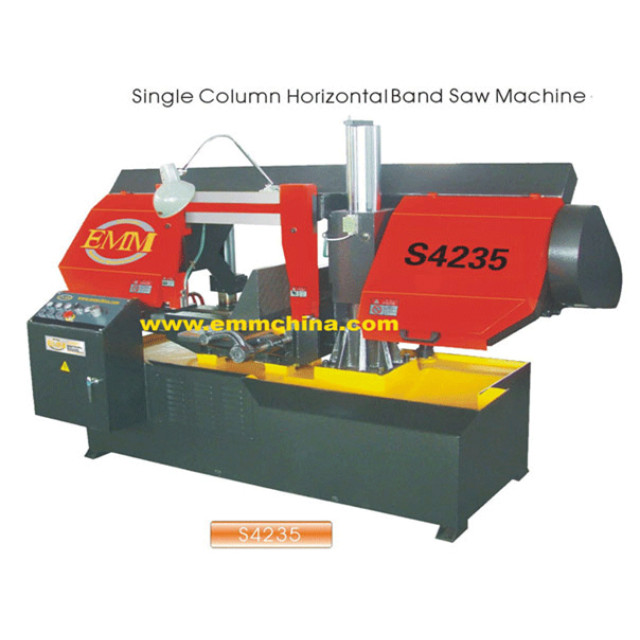

S4235 |
S4240 |
S4240/60 |
|
Cutting capacity |
Round Φ300mm, plate 400mm |
Round Φ300mm, plate 600mm |
Round Φ350mm, plate 400mm |
Round Φ400mm, plate 600mm |
Round Φ400mm, plate 600mm |
|
Saw blade speed line |
25, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
25, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
|
Working way clamping |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic |
|

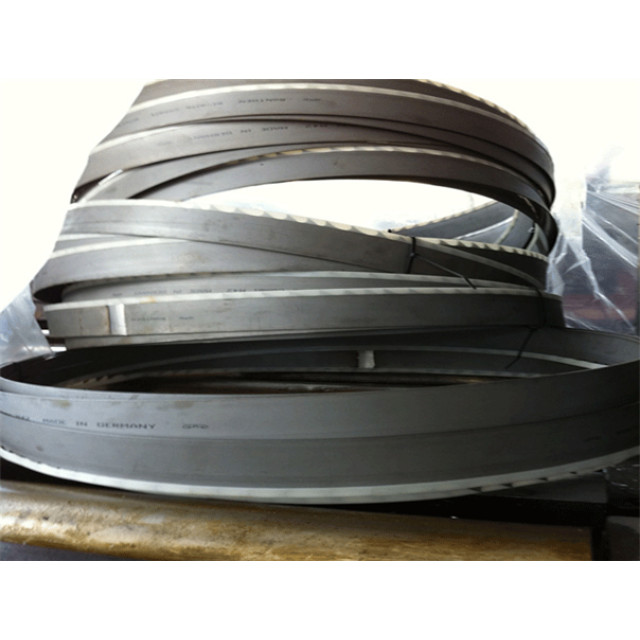

Specifications band saw |
0.9 x 27 x 3880mm |
1.1 x 34 x 4115mm |
1.1 x 34 x 4470mm |
1.1 x 34 x 4470mm |
1.1 x 41 x 4900mm |
|
The main electrical power |
2.2kW,380V,50HZ |
3.0kW,380V,50HZ |
3.0kW,380V,50HZ |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
|
Pump motor power |
0.55kW,380V,50HZ |
0.55kW,380V,50HZ |
0.55kW,380V,50HZ |
1.1kW,380V,50HZ |
1.1kW,380V,50HZ |
|
Package size |
2000 x 1100 x 1450mm |
2200 x 1100 x 1450mm |
2250 x 1200 x 1500mm |
2500 x 1500 x 1700mm |
2500 x 1500 x 1700mm |
|
Model/Name |

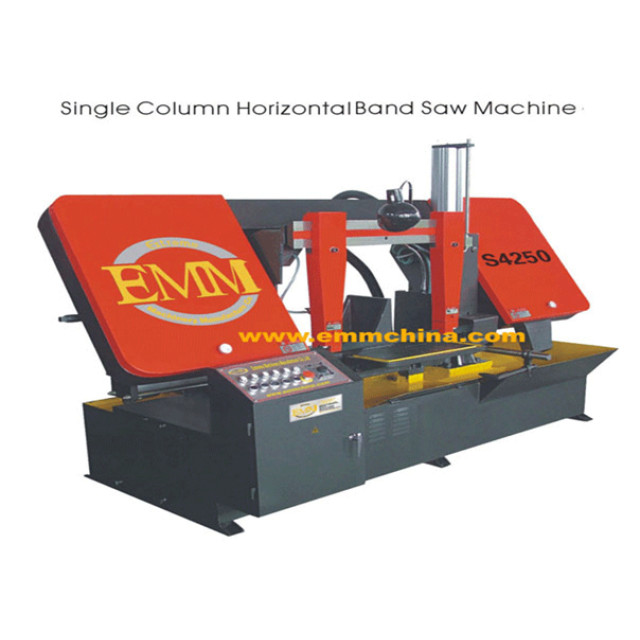

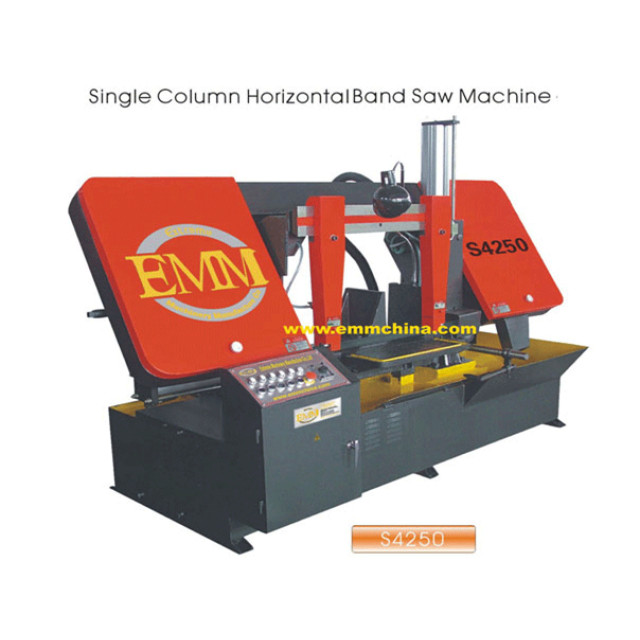

S4250 |
S4250/70 |

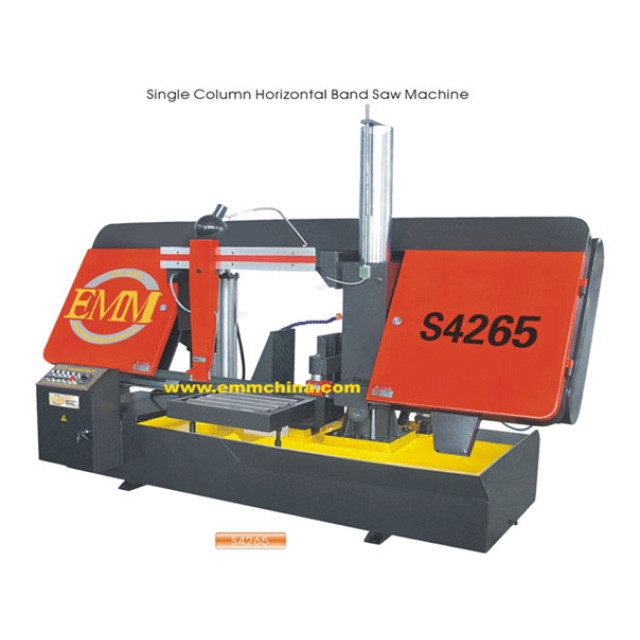

S4265 |
S4270 |

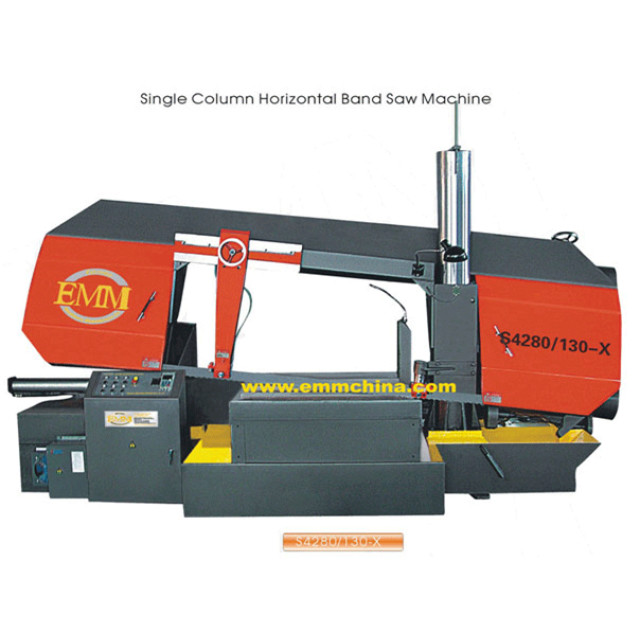

S4280/130-X |
|
Cutting capacity |
Φ500mm,plate 600mm |
Φ500mm,plate 700mm |
Φ650mm,plate 650mm |
Φ700mm,plate 700mm |
Φ800mm,plate 1300mm |
|
Saw blade speed line |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
22, 40, 60 m/min (3 steps) |
Step less adjustable |
|
Working way clamping |
hydraulic |
hydraulic |
hydraulic and manual combination |
hydraulic and manual combination |
hydraulic |
|
Specifications band saw |
1.3 x 41 x 5550mm |
1.1 x 41 x 5750mm |
1.3 x 41 x 5430mm |
1.3 x 41 x 4900mm |
1.6 x 54 x 9500mm |
|
The main electrical power |
4.0kW,380V,50HZ |
4.0kW,380V,50HZ |
5.5kW,380V,50HZ |
5.5kW,380V,50HZ |
11kW,380V,50HZ |
|
Pump motor power |
1.5kW,380V,50HZ |
1.1kW,380V,50HZ |
1.5kW,380V,50HZ |
1.5kW,380V,50HZ |
1.5kW,380V,50HZ |
|
Package size |
2700 x 1500 x 1800mm |
2800 x 1500 x 1800mm |
3200 x 1500 x 2000mm |
3300 x 1500 x 2100mm |
4500 x 1800 x 2800mm |
