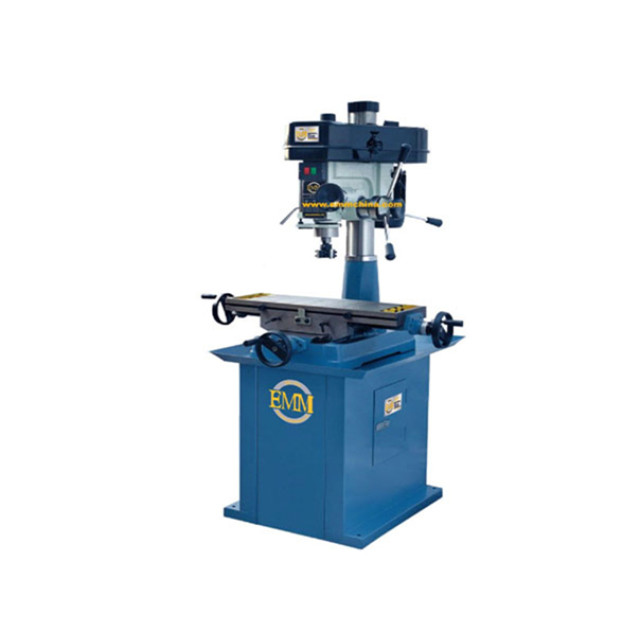

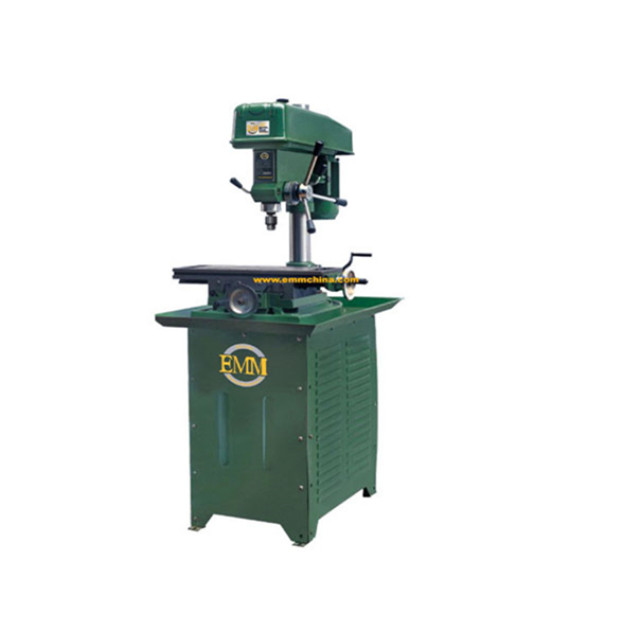

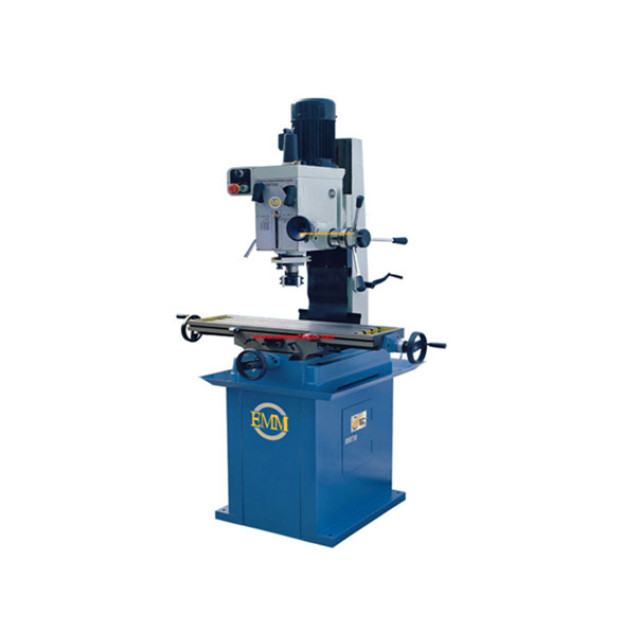

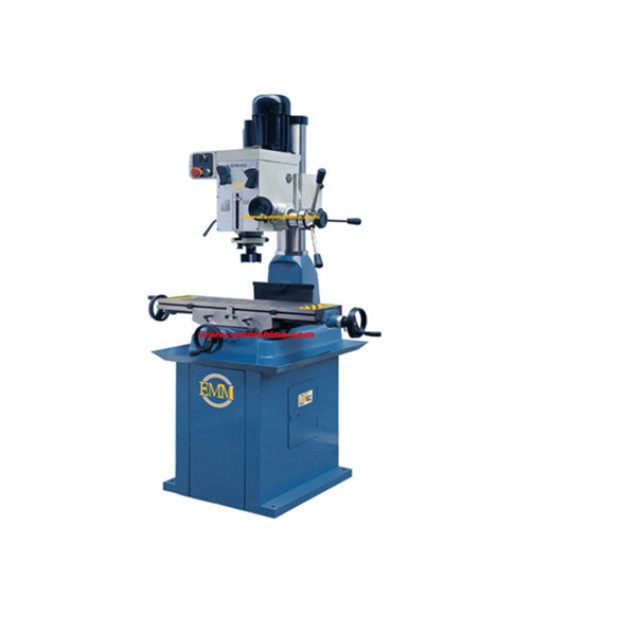

The machine tool applies to drilling, boring and reaming on non-ferrous metal. It has face milling and vertical milling. The machine tool apply cutting operation of single or mass parts, it has good performance, easy operation, and stronger power than belt drive.
Features:
The machine tool applies to drilling, boring and reaming on non-ferrous metal. It has face milling and vertical milling. The machine tool apply cutting operation of single or mass parts, it has good performance, easy operation, and stronger power than belt drive.
Specification:
|
Model |
Unit |
DM7045 |
DM40 |
DM7032 |
DM7025 |
DM7020 |
DM7016 |
|
Max. Drilling Capacity |
mm |
45 |
31.5 |
31.5 |
25 |
20 |
16 |
|
Max Width of face milling |
mm |
80 |
80 |
80 |
63 |
50 |
50 |
|
Max Tapping capacity |
mm |
12 |
12 |
12 |
|
|
|
|
Diameter of vertical milling |
mm |
28 |
28 |
22 |
12 |
12 |
12 |
|
Spindle travel |
mm |
120 |
120 |
120 |
90 |
125 |
100 |
|
Spindle taper |
|
MT.4 |
MT.3 |
MT.3 |
MT.3 |
MT.2 |
MT.2 |
|
Spindle speeds |
r/min |
65,120,190,370,670,1380 |
95,170,280, 540, 960,1600 |
65,120,190,370,670,1380 |
100,170, 200, 250, 280, 360,600, 700, 950, 1290, 1590, 2150 |
320, 500, 820, 1320 |
480, 800, 1400, 2400, 4100 |
|
Distance from spindle axis to column surface |
mm |
260 |
272.5 |
202.5 |
380 |
70-375 |
5-300 |
|
Distance from spindle axis to worktable |
mm |
475 |
450 |
460 |
202 |
240 |
193 |
|
Worktable size |
mm |
820×240 |
730×210 |
730×210 |
585×190 |
560×200 |
500×170 |
|
Travel of worktable(LXW) |
mm |
550×180 |
500×175 |
500×175 |
370×145 |
280×150 |
200×90 |
|
Motor power |
W |
1100 |
750 |
1500 |
750 |
1100 |
550 |
|
N.W./G.W. |
kg |
370/320 |
307/275 |
310/275 |
225/185 |
210/180 |
150/145 |
|
Ship measurement |
cm |
103×98×123 |
100×86×122 |
105×88×123 |
95×90×113 |
90×74×100 |
85×66×940 |
