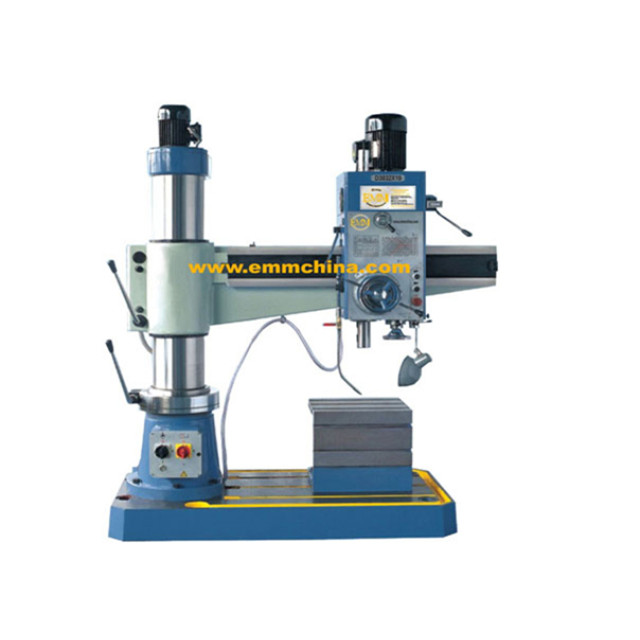

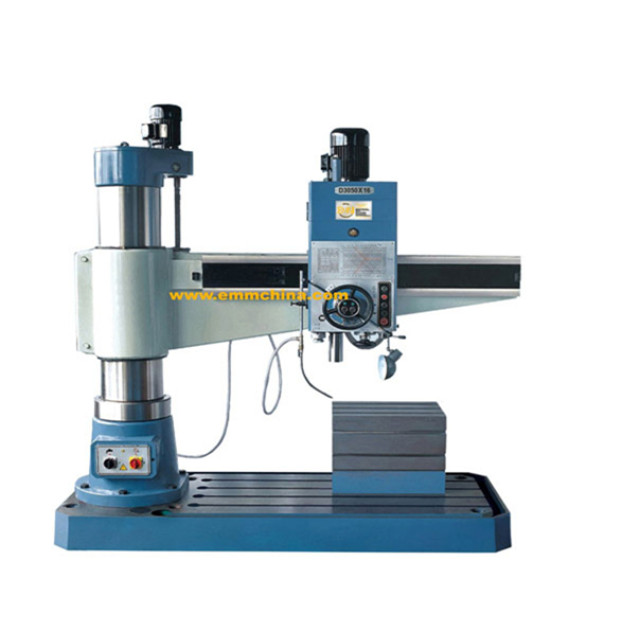

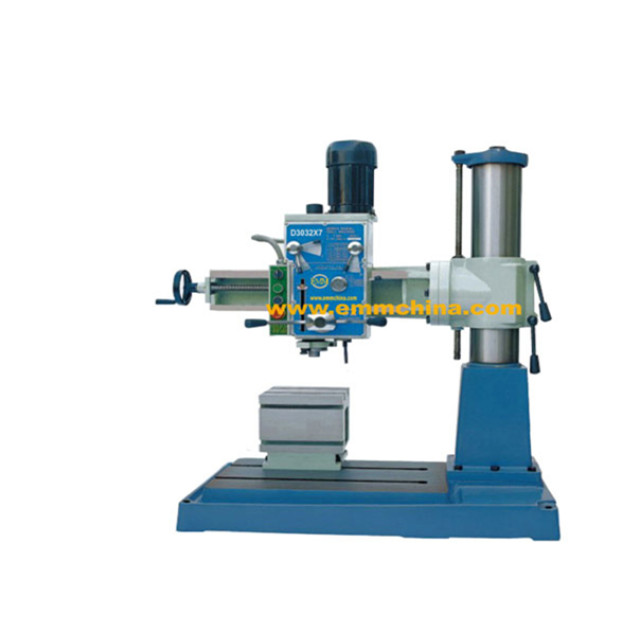

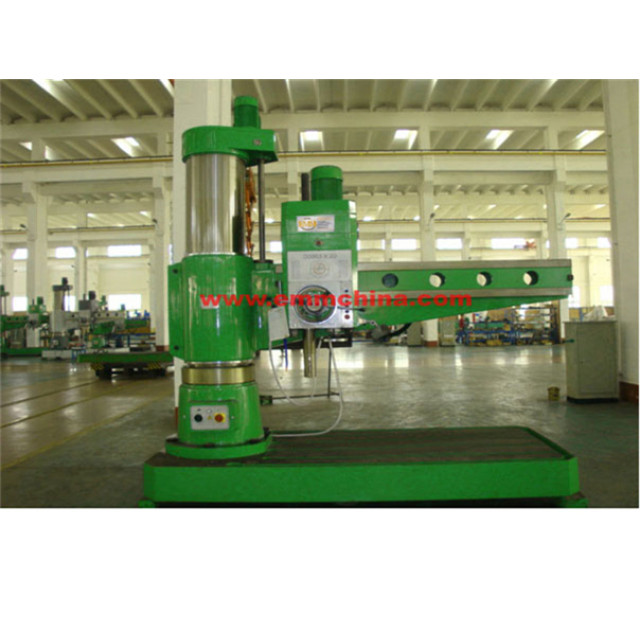

Light and flexible with drilling and reaming operation on metal or non-metal materials, It can be used not only in machine processing, repairing but also daily implements repairing.
Features:
Light and flexible with drilling and reaming operation on metal or non-metal materials, It can be used not only in machine processing, repairing but also daily implements repairing.
Main technology parameter：
|
Model |
Unit |
DHX-13 |
DL4113 |
DL4125D |
DL4119 |
DL4116 |
DL4125 |
|
Max drilling capacity |
mm |
13 |
13 |
25 |
19 |
16 |
25 |
|
Diameter of column |
mm |
48 |
70 |
85 |
70 |
70 |
85 |
|
Spindle travel |
mm |
50 |
85 |
110 |
85 |
85 |
110 |
|
Distance spindle axis to column surface |
mm |
103 |
180 |
200 |
180 |
180 |
200 |
|
Distance spindle nose to worktable surface |
mm |
220 |
318 |
490 |
432 |
432 |
485 |
|
Distance spindle nose to base surface |
mm |
330 |
475 |
1240 |
592 |
560 |
670 |
|
Taper of spindle hole |
|
short taper B16 |
B16 |
MT.3 |
MT.3or B18 |
MT.3or B18 |
MT.3 |
|
Spindle speeds range |
rpm |
515/2580 |
450/2650 |
200/2260 |
270/2880 |
270/2880 |
200-2260 |
|
Spindle speeds |
|
5 |
4 |
9 |
12 |
12 |
9 |
|
Worktable size (LXW) |
mm |
165×162 |
240×240φ300 |
φ360 |
240×240/φ300 |
240×240/φ300 |
280×280/φ360 |
|
Effective dimension of base(LXW) |
mm |
310×172 |
220×220 |
300×300 |
220×220 |
220×220 |
300×300 |
|
Overall height |
mm |
581 |
858 |
1680 |
950 |
956 |
1109 |
|
Motor |
W |
180 |
370 |
550 or 750 |
370/550 |
370/550 |
750 |
|
G.W/N.W. |
KG |
23/22 |
70/60 |
125/116 |
75/70 |
75/70 |
115/105 |
|
Packing size |
CM |
51×37×32 |
92×52×32 |
168×77×34 |
92×52×32 |
92×52×32 |
110×77×34 |
