High precision with high speed is widely used in instrument and camera area and so on.
Features:
High precision with high speed is widely used in instrument and camera area and so on.

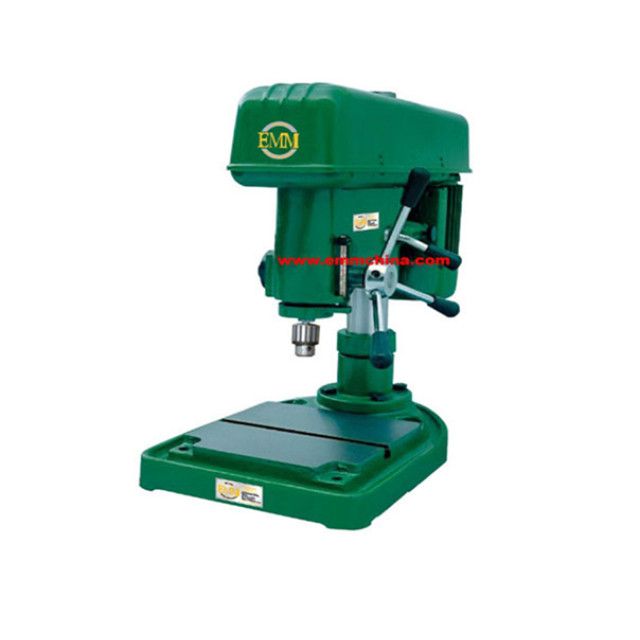

Industrial bench drill：
|
Model |
DWG-4B |
D406/D406C |
D406B |
D512-2 |
D512B |
D516A/D516B(inner cone) |
D4120B |
D4125B |
D4120 |
D4116 |
D4116D |
|
|
Max. Drilling Capacity |
mm |
4 |
6 |
6 |
12.7 |
12.7 |
16 |
20 |
25 |
20 |
16 |
16 |
|
Diameter of column |
mm |
40 |
|
50 |
70 |
70 |
70 |
80 |
80 |
85 |
85 |
85 |
|
Spindle Travel |
mm |
40 |
60 |
60 |
100 |
100 |
100 |
100 |
100 |
125 |
125 |
200 |
|
Distance spindle axis to column surface |
mm |
127 |
140 |
140 |
193 |
193 |
193 |
202.5 |
202.5 |
240 |
240 |
240 |
|
Distance spindle nose to worktable |
mm |
/ |
/ |
/ |
326 |
326 |
326 |
315 |
315 |
367 |
367 |
530 |
|
Distance spindle nose to base |
mm |
170 |
225 |
225 |
556 |
556 |
556 |
556 |
556 |
630 |
630 |
793 |
|
Spindle Taper |
|
B10 |
B10 |
B10 |
B16 |
B16 |
B18/MT.2 |
MT.2/MT.3 |
MT.2/MT.3 |
MT.2 |
MT.2 |
MT.2 |
|
Spindle Seeds Range |
rpm |
2800-9000 |
1400-5600 |
2000-12000 |
480-4100 |
480-4100 |
480-4100 |
480-3200 |
480-3200 |
365-3150 |
365-3151 |
145-2830 |
|
Spindle Speeds |
|
3 |
3 |
3 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
9 |
|
Dimension of worktable surface |
mm |
/ |
/ |
/ |
265×265 |
265×266 |
265×267 |
265×269 |
265×270 |
280×300 |
280×301 |
280×302 |
|
Dimension of base surface |
mm |
180×175 |
200×200 |
200×202 |
300×258 |
300×259 |
300×260 |
300×262 |
300×258 |
315×335 |
315×336 |
315×337 |
|
Overall height |
mm |
618 |
556/606 |
556/608 |
1037 |
1037 |
1037 |
1037 |
1037 |
1127 |
1127 |
1423 |
|
Motor |
W |
180 |
250 |
250 |
370 |
370 |
550 |
750 |
750 |
750 |
750 |
1100 |
|
N.W./ G.W. |
kg |
25/22.5 |
50/38 |
50/40 |
100/120 |
100/120 |
100/120 |
110/130 |
110/130 |
145/200 |
145/200 |
180/210 |
|
Packing size |
cm |
52.5×33×27 |
64×33×61 |
64×33×63 |
80×46×99 |
80×46×99 |
80×46×99 |
80×46×99 |
80×46×99 |
90×56×108 |
90×56×109 |
95×56×142 |
