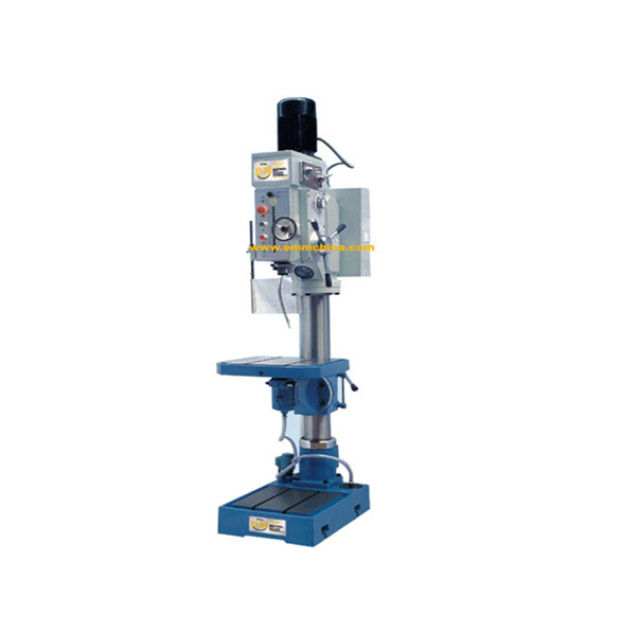

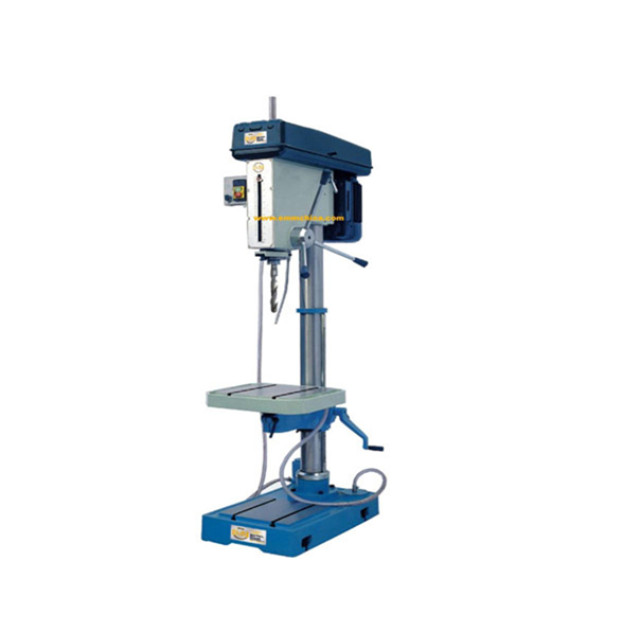

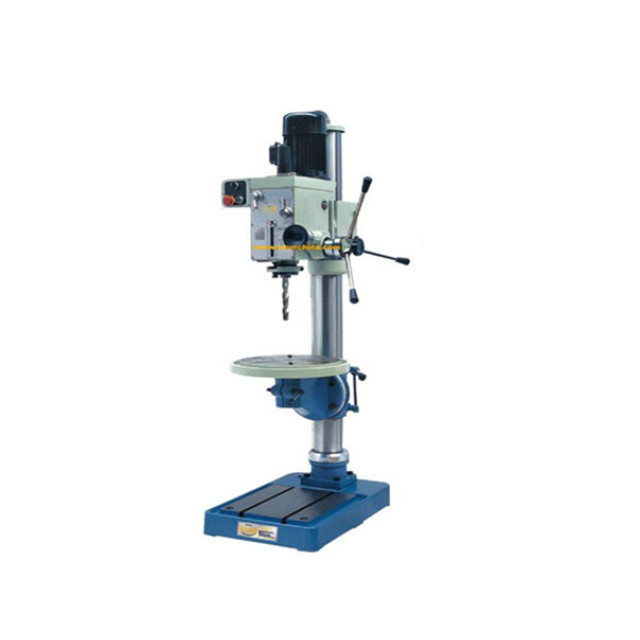

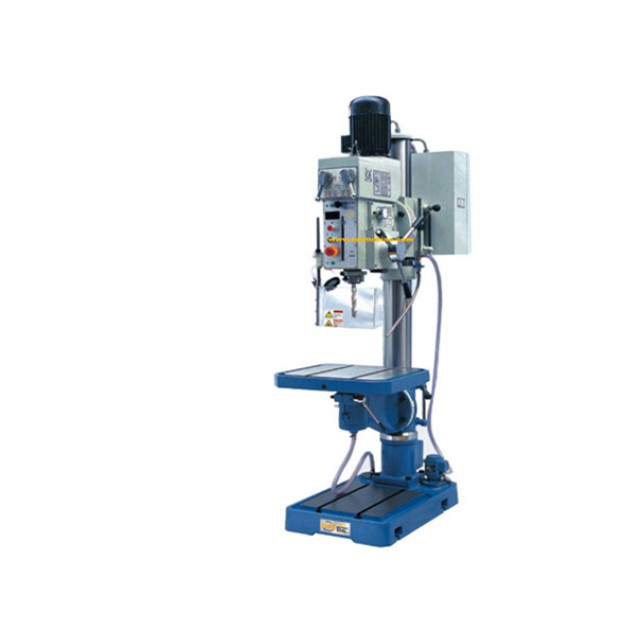

The machine has the function of drilling, enlarging holes, reaming, tapping, countersink, milling etc., the machining function and use range can be enlarged by installing special accessories, which makes it a universal machine tool with extensive functions. So this type of machine can be not only applied to part manufacturing shops but also maintaining shops.
Features:
The machine has the function of drilling, enlarging holes, reaming, tapping, countersink, milling etc., the machining function and use range can be enlarged by installing special accessories, which makes it a universal machine tool with extensive functions. So this type of machine can be not only applied to part manufacturing shops but also maintaining shops.
The bracket for supporting the worktable can be elevated along the column and turned ±180°
around the column. The worktable can be turned±180° along the bracket, besides, the worktable can be turned ±45° on the cross transverse plane together with the bracket support.
|
Model |
Unit |
D5050A |
D5040A |
D5032 |
D5032A |
D4125D |
|
Max. Drilling Capacity |
mm |
(cast iron)50/ (steel)40 |
(cast iron)40/ (steel)32 |
31.5 |
32 |
25 |
|
Max tapping capacity |
mm |
M30X3 |
M27 |
|
M22 |
|
|
Max milling capacity |
mm |
80 |
|
|
|
|
|
Spindle travel |
mm |
225 |
190 |
120 |
155 |
250 |
|
Distance spindle axis to column |
mm |
360 |
330 |
270 |
330 |
230 |
|
Distance spindle nose to worktable surface |
mm |
590 (550) |
630 |
750 |
685 |
710 |
|
Distance spindle nose to base surface |
mm |
1190 |
1200 |
1200 |
1260 |
1049 |
|
Spindle taper |
|
MT.4 |
MT.4 |
MT.3 |
MT.4 |
MT.3 |
|
r/min |
a. 54, 75, 100, 130, 185, 260; b. 340, 450, 600, 830, 1100, 1450 |
a. 67, 100,140, 210, 300; b. 450, 555, 775, 1170, 1640, 2500 |
65, 120, 190, 370, 670, 1380 |
a. 125, 205, 250, 360, 410, 535;
b. 715, 865, 1070, 1520, 1720, 3030
|
160, 230, 380, 540, 800, 950, 1200, 1420, 1880 |
|
|
Spindle speeds |
|
12 |
12 |
6 |
12 |
9 |
|
Worktable size |
mm |
510×390 |
450×390 |
φ380 |
450×390 |
380x330 |
|
Base Dimension(LXW) |
mm |
470×435 |
410×395 |
370×420 |
420×370 |
320×300 |
|
Overall height |
mm |
2400 |
2300 |
1910 |
2190 |
1874 |
|
Electromotor |
KW |
3 |
1.5/2.2 |
1.1 |
1.1/1.5 |
1.5 |
|
G.W./N.W. |
kg |
800/750 |
550/500 |
360/320 |
390/350 |
270/240 |
