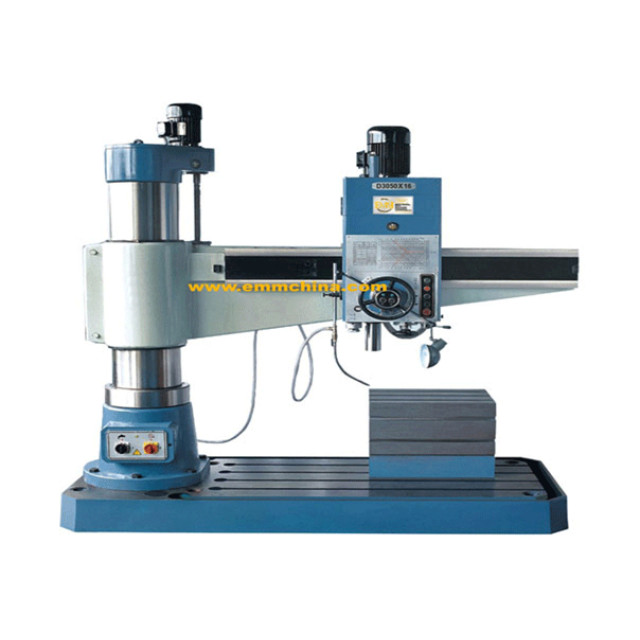

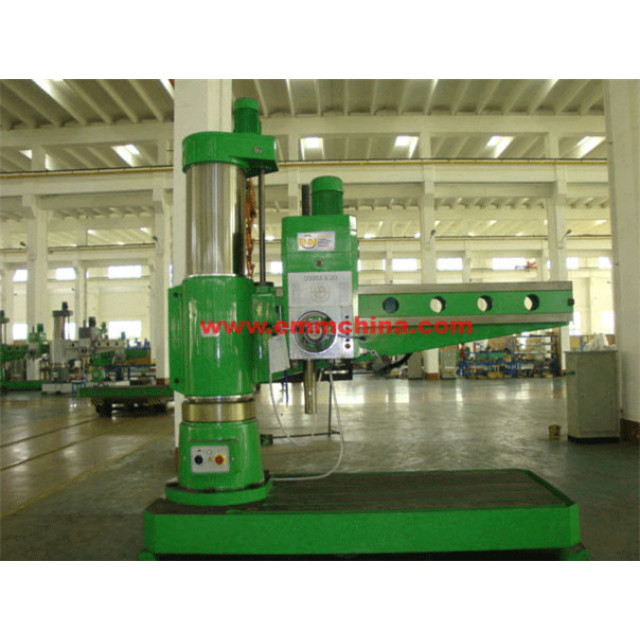

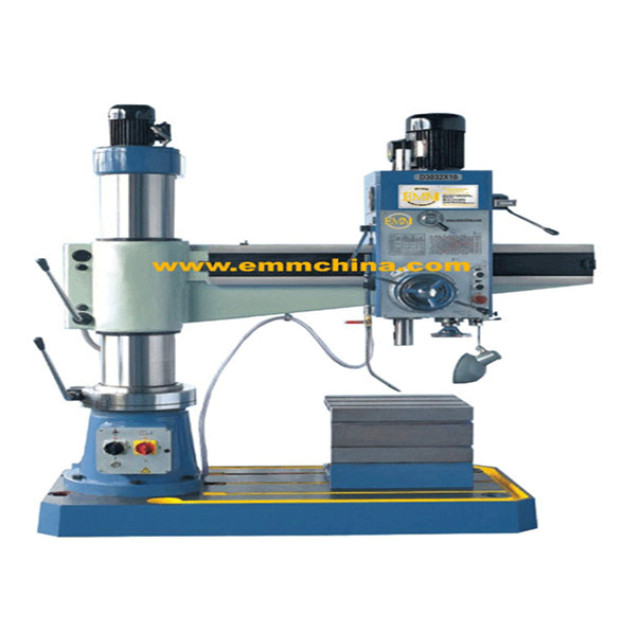

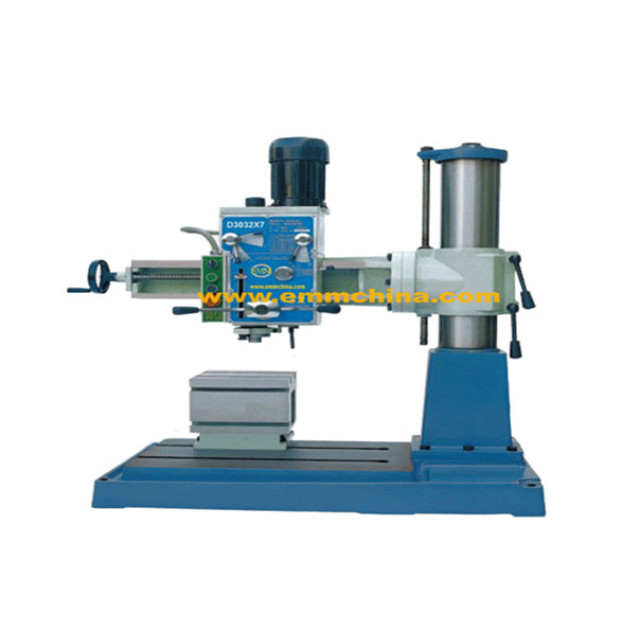

Radial drilling machine have universal purposes, adaptable for drilling, reaming, milling on middle and large workpieces, boring can also be operated if craftwork equipment is available. This type of machine has a high universal purpose.
Radial drilling machine have universal purposes, adaptable for drilling, reaming, milling on middle and large workpieces, boring can also be operated if craftwork equipment is available. This type of machine has a high universal purpose.
|
Model |
Unit |
D3063X20 |
D3050X16 |
D3040X13 |
D3032X10 |
DL3032X7 |
|
Max. Drilling capacity |
mm |
63 |
50 |
40 |
32 |
31.5/25 |
|
Spindle travel |
mm |
400 |
315 |
275 |
250 |
140 |
|
Distance spindle axis to column surface |
mm |
370-2000 |
350-1600 |
200-1300 |
200-1000 |
300-720 |
|
Distance spindle nose to base worktable |
mm |
400-1580 |
320-1220 |
300-1250 |
264-1064 |
275-680 |
|
Horizontal travel of headstock |
mm |
1630 |
1250 |
1100 |
800 |
|
|
Speed of arm elevation |
m/min |
1.2 |
1.2 |
1.13 |
1.13 |
|
|
Revolving angle of arm |
|
360° |
360° |
±180° |
360° |
360° |
|
Spindle taper |
|
MT.5 |
MT.5 |
MT.4 |
MT.4 |
MT.3 |
|
Range of spindle speed |
rpm |
25-1700 |
25-2000 |
54-1360 |
71-1800 |
100-1660 |
|
Spindle speed |
|
16 |
16 |
8 |
8 |
8 |
|
Table size |
mm |
800*630*500 |
630*500*500 |
600*400*350 |
450*400*400 |
250*250*250 |
|
Base size |
mm |
1200*2800 |
1000*2400 |
840*1900 |
740*1500 |
1050*550 |
|
Overall height |
mm |
3050 |
2840 |
2540 |
2354 |
1195 |
|
Motor |
KW |
5.5 |
4 |
3 |
2.2 |
0.75 |
|
G.T./N.T. |
KW |
5180/5000 |
3850/3500 |
2100/2000 |
1500/1400 |
400/380 |
|
Packing size |
cm |
313*139*290 |
275*113*255 |
215*100*226 |
185*90*210 |
119*64*133 |
