Drilling and milling machine table can be vertical, horizontal direction, vertical shaft layout, usually in the table, head can be up and down lifting, drilling and milling machine appearance with drilling, milling, boring, milling, tapping and so on the many kinds of machine tool cutting function. Spindle box can turn 90 ° around within a vertical plane, some workbench can turn around in the plane of the 45 °, most models workbench can be longitudinal automatic feeding.
Description:
Drilling and milling machine table can be vertical, horizontal direction, vertical shaft layout, usually in the table, head can be up and down lifting, drilling and milling machine appearance with drilling, milling, boring, milling, tapping and so on the many kinds of machine tool cutting function. Spindle box can turn 90 ° around within a vertical plane, some workbench can turn around in the plane of the 45 °, most models workbench can be longitudinal automatic feeding.
Use:
Suitable for all kinds of small and medium-sized parts processing, especially non-ferrous metal materials; Plastic; Nylon cutting, has simple structure, flexible operation etc., are widely used in single piece or a batch of mechanical manufacturing; Instrument industry; Building decoration and repair department. Drilling and milling machine is a kind of small and medium-sized general metal cutting machine tool, which can lie milling, end milling. It is suitable for drilling, expanding, boring, reaming, processing; Milling machine, Angle cutter, such as wafer form milling and face milling cutter, milling plane, inclined plane, vertical surface and grooves, etc. Mount accessories after vertical milling head, can be used as much in the direction of the milling work. In mount accessories after dividing head, can make touch number m = 3 mm below the straight tooth bevel gear and helical gear milling work. Is widely used due to the machine, suitable for general repair and tool shop; It is advisable to use single piece or small batch production workshop.
|

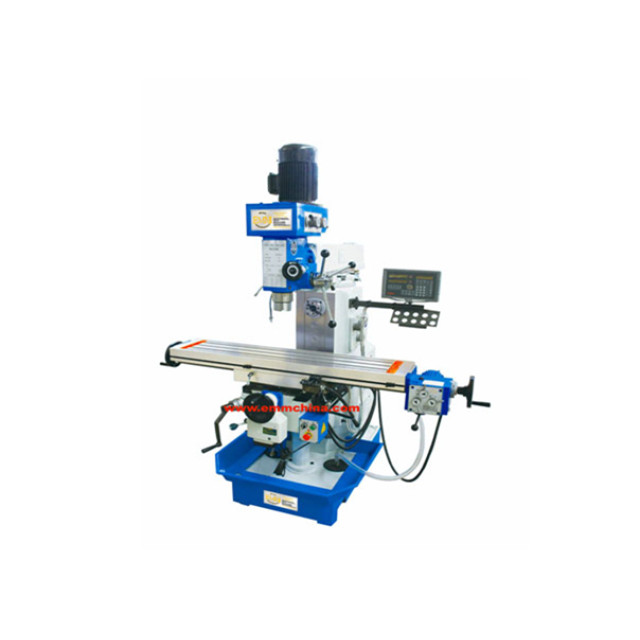

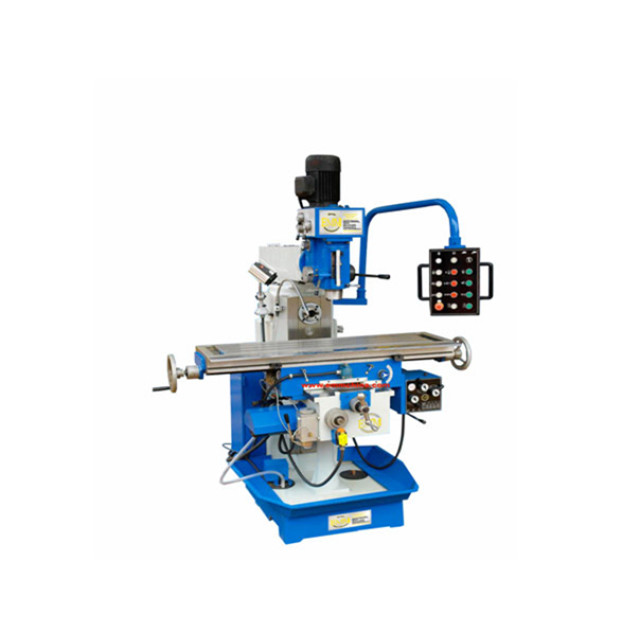

Specifications |
MD4530 |
MD4532 |
MD4523B |
MD4523C |
|
Max horizontal milling dia.(mm) |
100 |
|
|
|
|
Max drilling dia.(mm) |
50 |
50 |
50 |
50 |
|
Spindle taper |
ISO40 |
|
|
|
|
Max vertical milling dia.(mm) |
25 |
25 |
25 |
25 |
|
Max end milling dia.(mm) |
|
100 |
100 |
100 |
|
Max tapping dia.(mm) |
|
M16 |
|
|
|
Max boring dia.(mm) |
120 |
120 |
|
|
|
Distance from spindle to table surface(mm) |
150-650 |
80-460 |
70-420 |
70-420 |
|
Spindle speed range(r.p.m) |
60-1500(8)(vertical)/40-1300(12)(horizontal) |
115-1750(vertical) 40-1300(horizontal) |
110-1760(vertical) 58-1355(horizontal) |
110-1760(vertical) |
|
Spindle travel(mm) |
120 |
120 |
120 |
120 |
|
Table size |
1250x320 |
1200x280 |
800*240 |
800*240 |
|
Table travel |
600x300 |
480x260 |
400*230 |
400*230 |
|
Main motor(kw) |
0.85/1.5(vertical) 2.2(horizontal) |
0.85/1.5(vertical) 2.2(horizontal) |
0.85/1.5(vertical) 1.5(horizontal) |
0.85/1.5(vertical) |
|
N.W/G.W (kg) |
1400/1550 |
1200/1350 |
970/1120 |
610/770 |
|

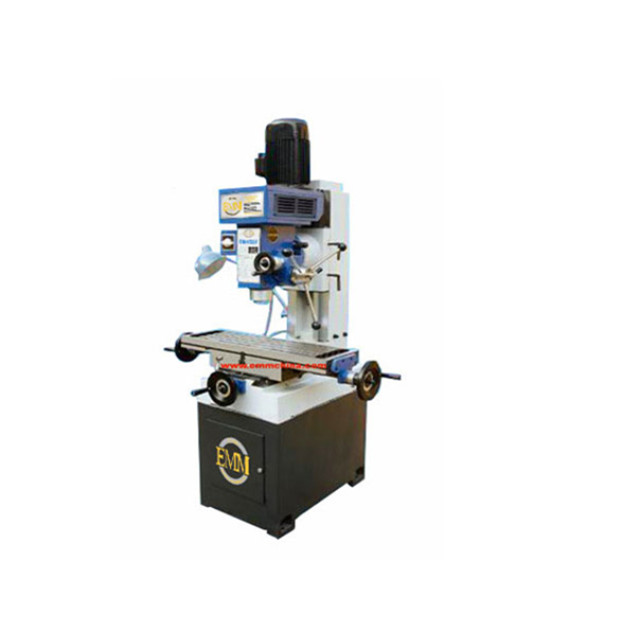

Specification |
MD4523 |
|
|
Table size (mm) |
800x240 |
|
|
Table travel (mm) |
400x230 |
|
|
Overall dimensions (mm) |
1290x1140x2100 |
|
|
Spindle |
Taper(mm) |
NT30 R8 (NT40) |
|
Drilling dia(mm) |
15 |
|
|
Sleeve travel(mm) |
27 |
|
|
Spindle speeds |
Low(r/min) |
80, 135, 210, 325, 660, 1110, 1750, 2720 |
|
High(r/min) |
160, 270, 420, 650, 1320, 2220, 3500, 5400 |
|
|
Main parts of size |
Distance from spindle to
table surface (mm)
|
70-420 |
|
Drill press head swivels(left- right) |
±90° |
|
|
Drill press head swivels(Before- Behind) |
±45° |
|
|
Main Motor |
Voltage |
380V |
|
Frequency |
50HZ |
|
|
Motor |
3HP |
|
|
N.W/G.W (Kg) |
970/1120 |
|
|

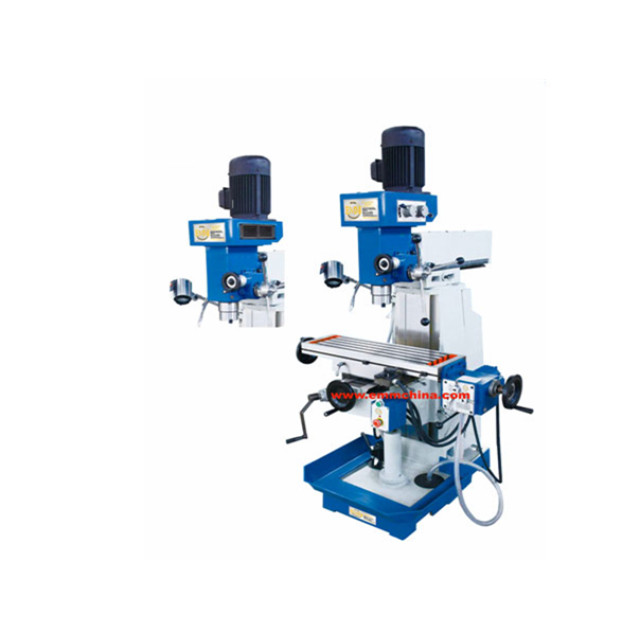

Specification |
DM450F |
DM450C |
|
Max. drilling dia (mm) |
50 |
50 |
|
Max. end milling width (mm) |
100 |
100 |
|
Max. vertical milling dia. |
25mm |
25mm |
|
Max. boring dia |
120mm |
120mm |
|
Max. tapping dia. |
M16 |
M16 |
|
Distance from spindle nose to table surface |
38-430mm |
50-410mm |
|
Spindle speed range |
230-1825rpm |
110-1760rpm |
|
Spindle travel |
120mm |
120mm |
|
Table size |
800x240mm |
800x240mm |
|
Table travel |
400x230mm |
400x215mm |
|
Overall dimension |
1100x970x1650mm |
1270x950x1800mm |
|
Motor power |
0.85/1.5kw |
0.85/1.5kw |
|
N.W/G.W |
500/600kg |
500/600kg |
