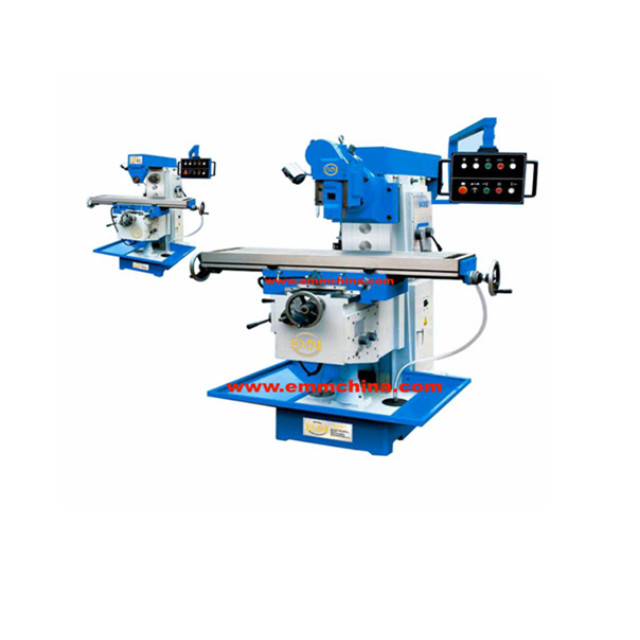

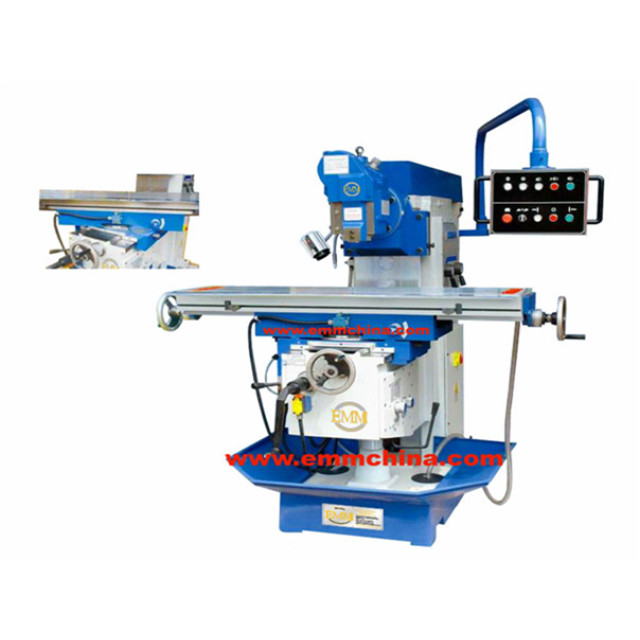

This series of milling machine is installation of rotary table 45 degrees; can be achieved shaped pieces of processing.
Rectangular guide ways are on bed and Z axis high stability and rigidity. Hardened on X, Y, Z axes.
Swivel head 90°left and tight rotary table 45°.
Automatic feeds on X, Y, Z axes.
This series of milling machine is installation of rotary table 45 degrees; can be achieved shaped pieces of processing.
Rectangular guide ways are on bed and Z axis high stability and rigidity. Hardened on X, Y, Z axes.
Swivel head 90°left and tight rotary table 45°.
Automatic feeds on X, Y, Z axes.
|
K436A |
K436B |
||
|
Milling vertical shaft inner cone hole |
ISO50 |
ISO50 |
|
|
Difference from spindle axis to guide way(mm) |
345 |
405 |
|
|
Slotting maximum traveling range (mm) |
105 |
105 |
|
|
Inserts works as extreme breadth |
16 |
16 |
|
|
Slotting stroke number of times (/minute) |
≤80 |
≤80 |
|
|
Stroke number of times and transformation progression |
with variable speed and milling horizontal axis series are the same |
with variable speed and milling horizontal axis series are the same |
|
|
Horizontal axis turning |
positive rotation |
positive rotation |
|
|
Tool rest rotation angle (°) |
±90 |
±90 |
|
|
Slotting tool cutter bar center to milling machine guide rail distance |
525 |
525 |
|
|
The mounting dimensions |
With milling machine main axle joint taper |
ISO50 |
ISO50 |
|
The mill subscribes the vertical guide rail angle |
55° dovetailed way, rectangular guide way |
55° dovetailed way, rectangular guide way |
|
|
Milling machine vertical guide rail width |
260、280、300、320、360 |
260、280、300、320、360 |
|
|
Horizontal axis center altitude |
0-480 |
0-480 |
|
|
Table size(mm) |
360*1500 |
360*1500 |
|
|
Table travel(mm) |
900*250 |
900*250 |
|
|
Overall dimensions(mm) |
2300*2000*2000 |
2300*2000*2000 |
|
|
Main motor(kw) |
4KW |
4KW |
|
|
Feeding motor(kw) |
1．5KW |
1．5KW |
|
|
Feeding speed |
30、55、100 |
30、55、100 |
|
|
190、350、630 |
190、350、630 |
||
|
2000 |
2000 |
||
|
Spindle speed |
60-1800 |
60-1800 |
|
|
Horizontal axis hole |
ISO：50 |
ISO：50 |
|
|

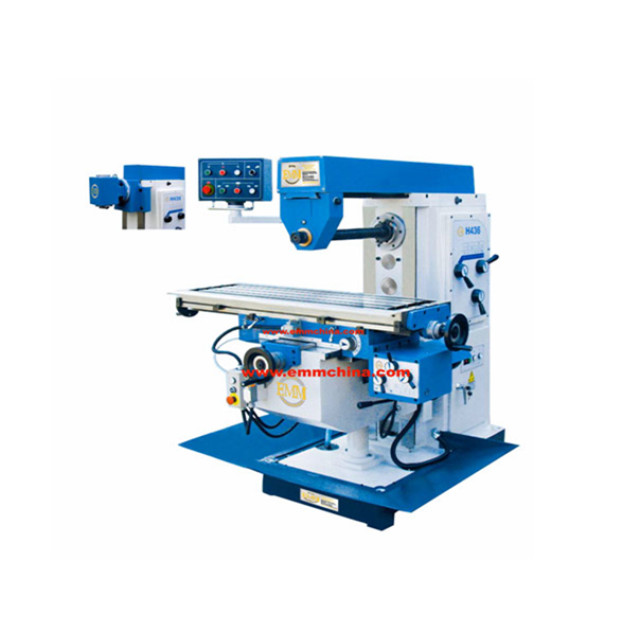

Main technical parameters |
H436 |
|
Spindle taper |
7:24 ISO50 |
|
Distance from spindle nose to table surface(mm) |
0-440 |
|
Distance from spindle axis to arm (mm) |
170 |
|
Spindle speed range(r.p.m) |
60-1700 12 steps |
|
Table size |
1250*360 |
|
Spindle travel(mm) |
600x320x400 |
|
cantilever travel (mm) |
500 |
|
Range of longitudinal cross travel |
30-740mm/min 8 steps 1080mm/min (rapid) |
|
Z speed of table (mm/min) |
590 |
|
T-slot (number-width-distance) (mm) |
3-18-80 |
|
Main motor(kw) |
4 kw |
|
Motor for rapid device of table (X、Y) |
0.75kW |
|
Motor for vertical device of table(Z) |
0.75kw |
|
Overall dimensions(mm) |
1880×1700×1700 |
|
N.W/G.W (kg) |
1850/1950 |
|

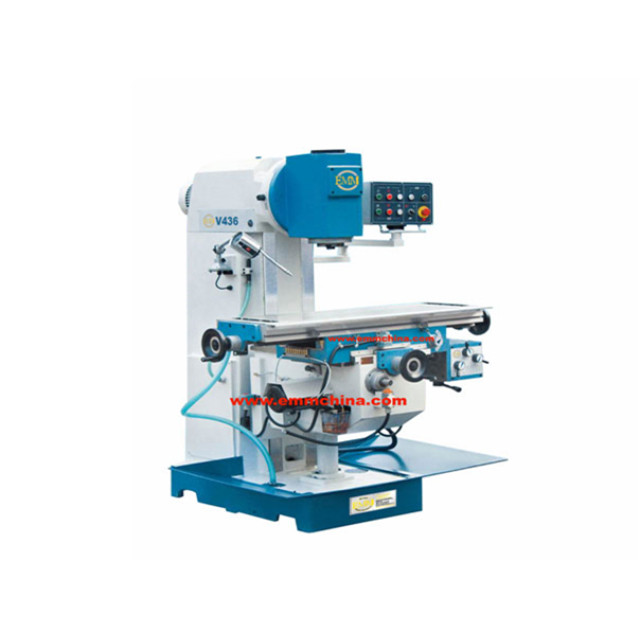

Specifications |
V436 |
|
Spindle taper |
ISO50 |
|
Spindle travel(mm) |
600x300x400 |
|
Distance from spindle axis to column guide way(mm) |
325 |
|
Distance from spindle nose to table surface(mm) |
60-460 |
|
Spindle speed range(r.p.m) |
60-1700 12 steps |
|
Table size |
1250*360 |
|
Main motor(kw) |
4 kw |
|
Motor for rapid device of table (X、Y) |
0.75kW |
|
Motor for vertical device of table(Z) |
0.75kw |
|
Range of longitudinal cross travel |
30-740mm/min 8 steps 1080mm/min (rapid) |
|
Z speed of table (mm/min) |
590 |
|
T-slot (number-width-disance) (mm) |
3-18-80 |
|
Cooling pump motor power (kw) |
0.09 |
|
Cooling pump flow |
25L/M |
|
Overall dimensions(mm) |
1700×1680×1880 |
|
N.W/G.W (kg) |
2200/2300 |
