Universal milling machine is suitable for using a variety of bar cutter, circle cutter, Angle cutter for milling flat, slant, trench, etc. If you are using a universal milling head, rotary table, dividing head milling machine accessories, can expand the machining range. The machine has enough rigidity and power, has a strong processing capacity, for high speed and can work under heavy load cutting, gear processing.
Universal Milling Machine：
Universal milling machine is suitable for using a variety of bar cutter, circle cutter, Angle cutter for milling flat, slant, trench, etc. If you are using a universal milling head, rotary table, dividing head milling machine accessories, can expand the machining range. The machine has enough rigidity and power, has a strong processing capacity, for high speed and can work under heavy load cutting, gear processing.
|
Model |

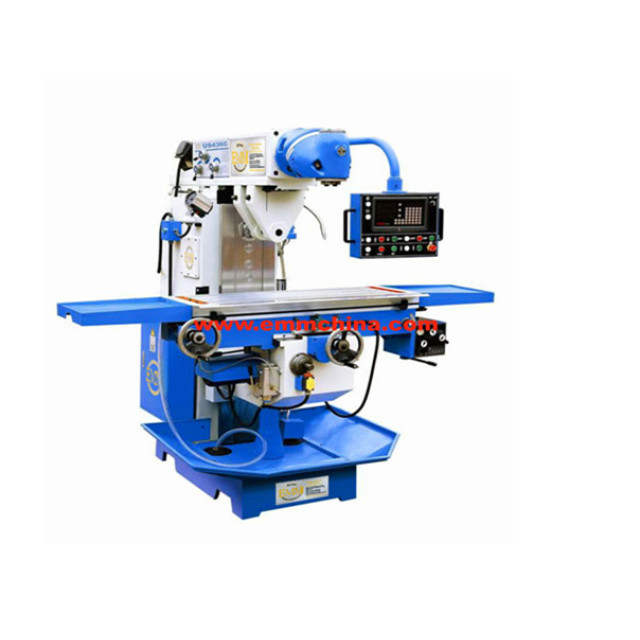

US436C |

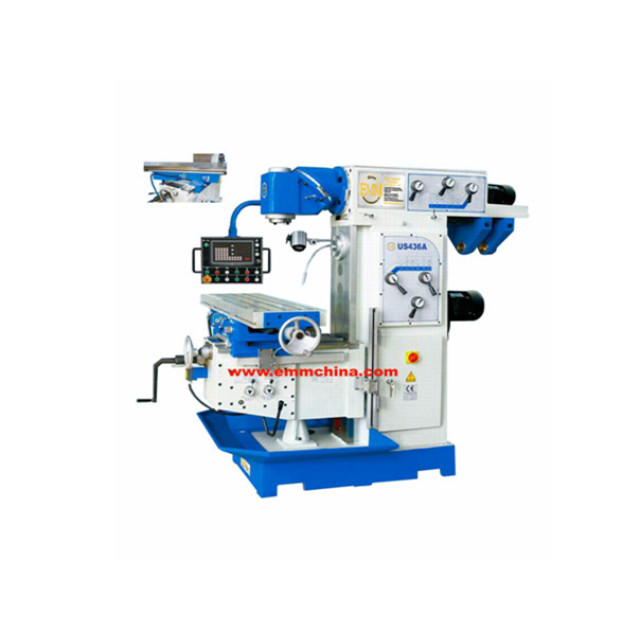

US436A |
|
Table size (mm) |
1250x360 |
1630*360 or 1800*360 (Optional) |
|
T-slot(number-width-distance)(mm) |
3/16/80 |
3/18/80 |
|
The max. load weight |
300kg |
350 |
|
Table travel |
970（1000）/300/390 |
1000/1200（optional） * 320 * 420 |
|
Feed speed |
15/370 end milling |
30/55/100/190/350/630/2000 |
|
15/370 horizontal milling |
||
|
Feeding speed |
660/660/760mm/min |
|
|
End milling spindle taper |
IS040 |
ISO50(V) |
|
Horizontal milling spindle taper |
IS040 |
ISO50(H) |
|
Speed grades |
12 |
12 |
|
35-1600 (v) |
60-1800(H) (12 step) |
|
|
40-1300 (h) |
60-1700(V) (12step) |
|
|
Fore bearing diameter |
90 |
|
|
Main motor power |
3KW |
4kw(H) 4kw(V) |
|
Feeding motor power |
XY/0.75KW Z/1.1KW |
1.5kw |
|
Distance from horizontal spindle to table (mm) |
0-420 |
0-480 |
|
Spindle center distance to milling machine guide rail |
505 |
|
|
Distance from spindle to column (mm) |
0-500 |
|
|
Distance from vertical spindle to table(mm) |
150-690 |
|
|
Vertical spindle reach distance (mm) |
350-850 |
|
|
360º |
360° |
|
|
Max. milling dia (mm) |
125（V）-100( H ) |
|
|
Overall dimension (mm) |
1750*1700*2250 |
2000*2000*2250 |
|
N.W/G.W (kg) |
2650/2850 |
2950/3000 kgs |
|
Model |
Unit |
US432B |
US426 |
UM426B(without horizontal milling) |

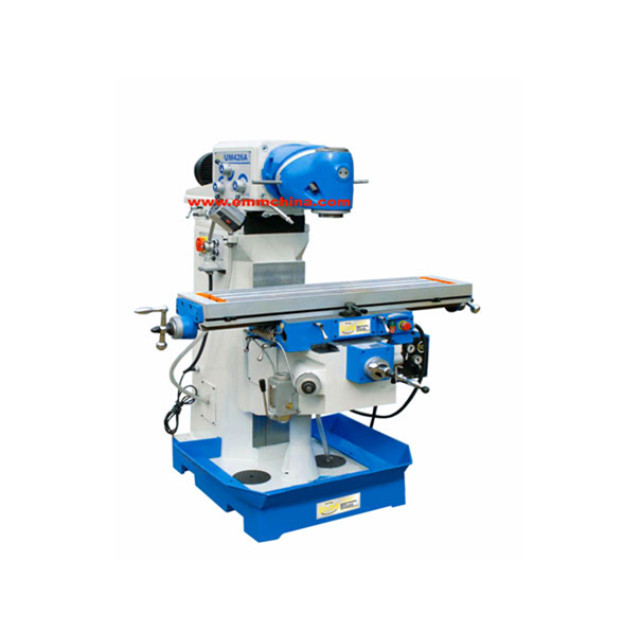

UM426A(without horizontal milling) |
|
Max end milling width |
mm |
|
|
125 |
125 |
|
Max horizontal milling diameter |
mm |
100 |
125 |
|
|
|
Max vertical milling diameter |
mm |
28 |
28 |
25 |
25 |
|
Distance between spindle nose and table surface |
mm |
100-500 |
560 |
80-500mm |
80-500 |
|
Spindle speed |
r.p.m |
35-1600(vertical milling) |
35-1600 |
40-1600 |
40-1600 |
|
40-1300 (12) (horizontal milling) |
40-1300 (horizontal milling) |
||||
|
Head swivel angle |
|
± 360 ° |
± 360 ° |
360° |
360° |
|
RAM stroke |
|
|
420 |
|
|
|
Table size |
mm |
1250x320 |
1270 × 260 |
1120×260 |
1120×260 |
|
Table travel |
mm |
600x 340 x 350 |
750 × 300 |
600×270 |
600×270 |
|
Packing size |
mm |
1550x1650x2200 |
1550 × 1650 × 2200 |
1650×1550×2200 |
1655×1500×1730 |
|
Main motor power |
kw |
3 |
3 （H） 3（v） |
2.2 |
2.2 |
|
N.W/G.W |
Kg |
1550/1700 |
1480/1660 |
1400/1600 |
1400/1600 |
|
Spindle taper |
|
ISO40 |
|
|
|
