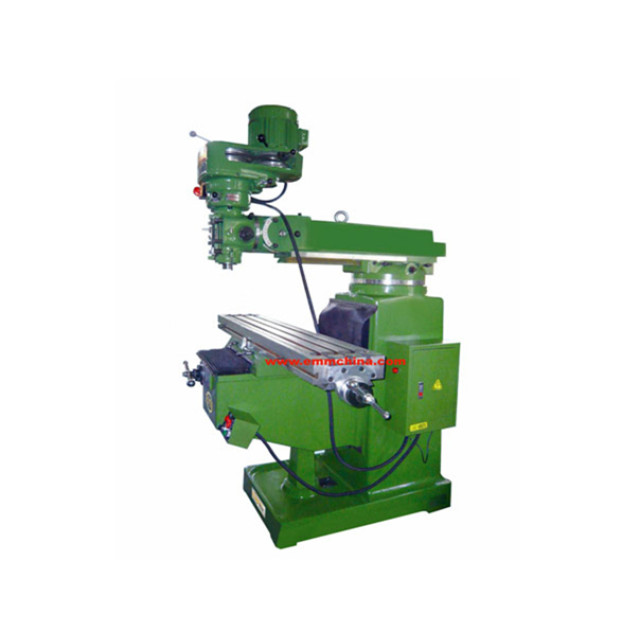

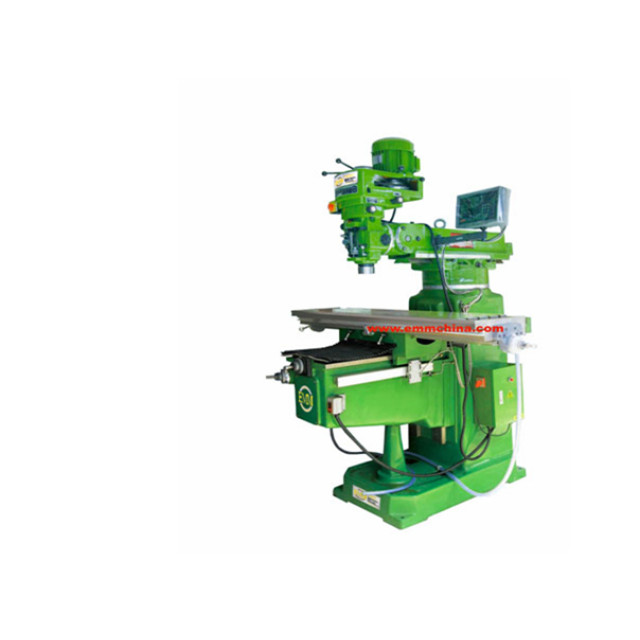

Turret milling machine can also be referred to as the rocker milling machine, radial milling.
Universal radial milling machine body adopts advanced cast iron, after artificial aging treatment, high precision, long service life. Lifting platform adopts rectangular guideway, contact, rigid. By high frequency processing and fine grinding, slide model, movement accuracy and life manner. Universal radial milling machine spindle made of chromium molybdenum alloy with grade precision angular contact bearing, the quenched and tempered treatment and fine grinding, strong cutting force, high precision.
Comprehensive product description:
Turret milling machine can also be referred to as the rocker milling machine, radial milling.
Universal radial milling machine body adopts advanced cast iron, after artificial aging treatment, high precision, long service life. Lifting platform adopts rectangular guideway, contact, rigid. By high frequency processing and fine grinding, slide model, movement accuracy and life manner. Universal radial milling machine spindle made of chromium molybdenum alloy with grade precision angular contact bearing, the quenched and tempered treatment and fine grinding, strong cutting force, high precision.
use：
Turret milling machine is a kind of light universal metal cutting machine tool, with functions of two vertical and horizontal milling, milling medium and small parts of the plane, slant, trench, spline, etc. Widely used in mechanical processing, mold, instruments, meters and other industries.

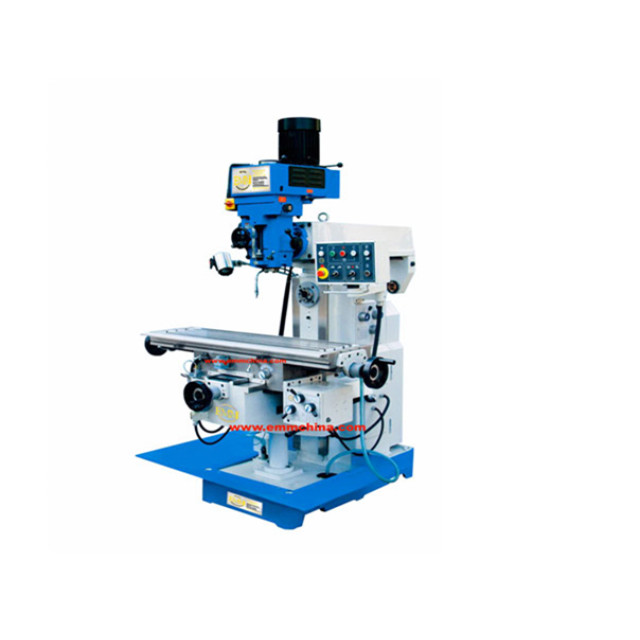

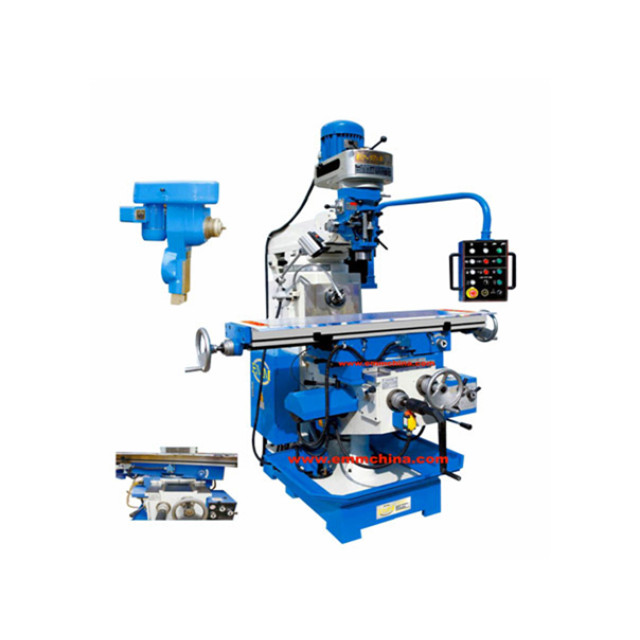

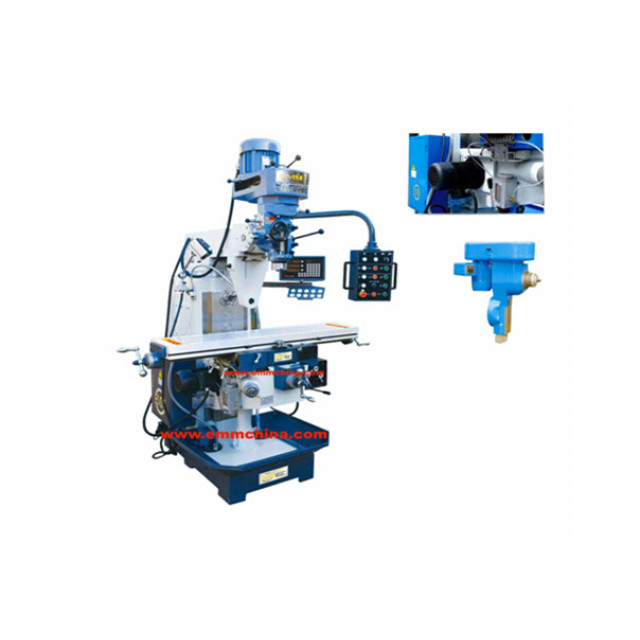

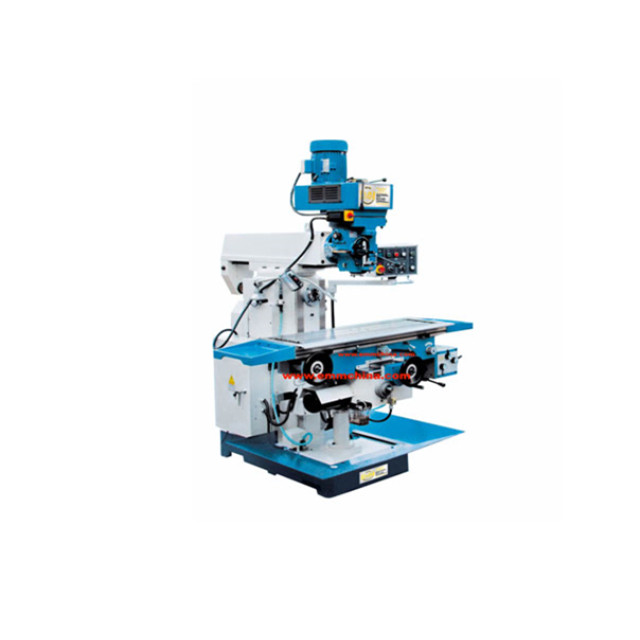

UT436B: Taiwan high speed milling head type steel head, 5 HP, workbench can turn 45 degrees, the processing range, 3 axis automatically feed, torque force is strong, 2 HP, fast moving 2000 mm/min.
UT436: adopt Taiwan high-speed milling head, high precision, high rotational speed. Set bed and large working table stroke leads to stability, two axis feed, Z axis electric hoist, triaxial hardening treatment.
UT432C UT432B: USES the high speed milling head, big power, high speed. Biaxial automatic feed. The Z axis.
UT432D: the original 3 s. Based on the 4 s turret milling with independent lie milling system, two axis feed. Z axis can according to customer needs to be equipped with lifting system, can be equipped with the plug, suitable for parts processing and mould manufacturing.
Specification:
|
3S /4S |
5S |
|
|
Table size |
(Standard) 254mm*1270mm (Optional) 254mm*1370mm |
305*1370mm(12’’X54”) |
|
Table travel (X,Y,Z) |
850mm*425mm*400mm |
800*480*460 |
|
T-Slot Number / width / spacing |
3 / 16 / 63.35 mm |
3 / 16 / 63.35 mm |
|
Ram travel |
469mm |
|
|
Distance from spindle nose to table surface |
0-445mm |
|
|
140-609mm |
|
|
|
Spindle taper |
(Standard): R8/ISO30 (Optional): ISO40 |
NT30#R8/NT40 |
|
Quill Diameter |
￠85.7mm/￠3.37in |
￠105 mm/￠4.13in |
|
Spindle travel |
127mm / 5in |
127mm/5in |
|
Spindle speed range |
50HZ 65-4660(16 Rank) 60HZ 80-5440RPM(16 Rank) |
50HZ 65-4660(16 Rank) |
|
Variable: 60-4200 |
60HZ 80-5440(16 Rank) |
|
|
Auto. quill feed |
(three steps): 0.04(0.0015") / 0.08(0.003") / 0.15(0.006") mm/revolution |
|
|
Head swivel/ Head tilting |
90°/ 45° |
90°/ 45° |
|
Spindle Motor |
2.25 KW / 3HP |
3HP/5HP |
|
N.W. |
1380Kg |
1650 KGS |
|
Specifications |
UT436B |
UT436 |
UT432A |
UT432C |
UT432B |
|
Spindle taper |
ISO40(V) ISO50(H) |
7:24 ISO40(V)/7:24 ISO50(H) |
ISO40 |
ISO40 |
ISO40 |
|
Spindle travel |
|
|
127 |
150 |
150 |
|
Distance from vertical spindle to table surface(mm) |
160-565 |
135-485 |
|
200-600(V) |
200-500(V) |
|
Distance from horizontal spindle to table surface(mm) |
270-770 |
0-350 |
100-500 |
0-300(H) 155-455 (V) |
0-300(H) 155-455 (V) |
|
Spindle speed range(r.p.m) |
70-7200(v) (20 steps) |
70-7200(v) 20 steps |
80-5400 V |
70-7200 (V)(20 steps) |
70-7200 (V)(20 steps) |
|
60-1800(h) (12 steps) |
60-1800(h) |
40-1300 H(12 steps) |
60-1350 H(12 steps) |
60-1350 H(12 steps) |
|
|
Table size |
1500/1630*360mm |
1250*360mm |
1250*320 |
1250*320 |
1250*320 |
|
Table travel |
900/1000 * 340* 420mm |
1000*350*400 |
600*340 |
800*300*300 |
600*300*300 |
|
T-slot (number- width- distance) |
3/18/80mm |
3-16mm-80mm |
|
3/14/70 |
3/4/70 |
|
automatic feed (X,Y) |
30-630mm/min |
22-555mm/min |
|
|
|
|
rapid feed (X,Y) |
2000mm/min |
700mm/min |
|
|
|
|
Up and down speed(Z) |
666mm/min |
540mm/min |
|
|
|
|
Main motor power |
3.7/5HP(V) 4.0(H) |
4.0(H) 3.7(V)/5.5(optional) |
2.2 V 3 H |
3.7(V) / 2 (H) |
3.7(V) / 2 (H) |
|
Feeding motor |
1500w |
750W |
|
|
|
|
Cooling motor power |
60 |
|
|
|
|
|
Machine size |
2000*2080*2250 |
2000*1750*2200mm |
1520*1630*2200 |
2000*2200*2250 |
1700*1520*2260 |
|
Net weight /Gross weight |
3000/3100 |
2600/2750 |
1550/1700 |
1850/2050 |
1750/1950 |
|
Specifications |
UT432D |
UT426 |
||
|
Table size |
1250*320 |
1270*260 |
||
|
Table travel |
800*300*300 |
700*280*450 |
||
|
Spindle speed |
Low (r/min) |
80-2720 |
80, 135, 210, 325, 660, 1110, 1750, 2720 |
|
|
High (r/min) |
160-5400 |
160, 270, 420, 650, 1320, 2220, 3500, 5400 |
||
|
Spindle taper |
Taper(mm) |
ISO 30 R8 ISO 40 |
NT30 R8 NT40 |
|
|
Drilling dia(mm) |
15 |
15 |
||
|
Sleeve travel(mm) |
127 |
27 |
||
|
Milling head swivels |
Left-Right |
±90° |
±90° |
|
|
Before-Behind |
±45° |
±45° |
||
|
main motor |
Voltage |
380V |
380V |
|
|
Frequency |
50HZ |
50HZ |
||
|
Motor |
3HP |
3HP |
||
|
Distance from spindle to table surface(mm) |
100-490 |
100-490 |
||
|
Overall dimensions(mm) |
1655x1650x2300 |
1655*1650*2300 |
||
