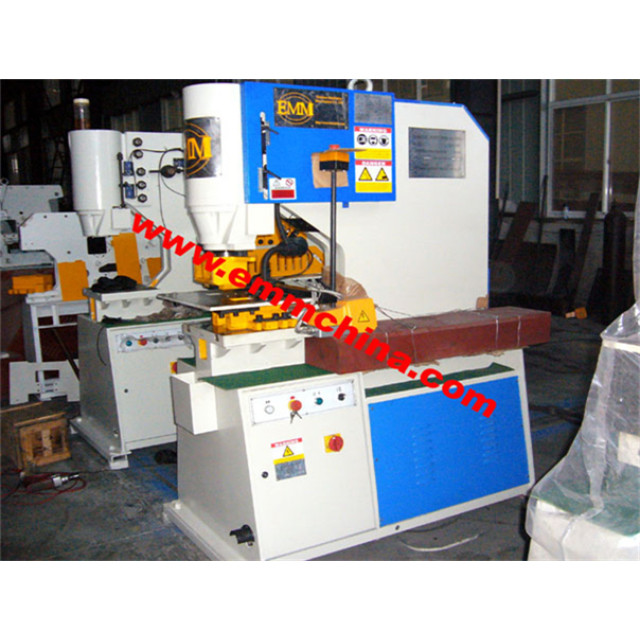

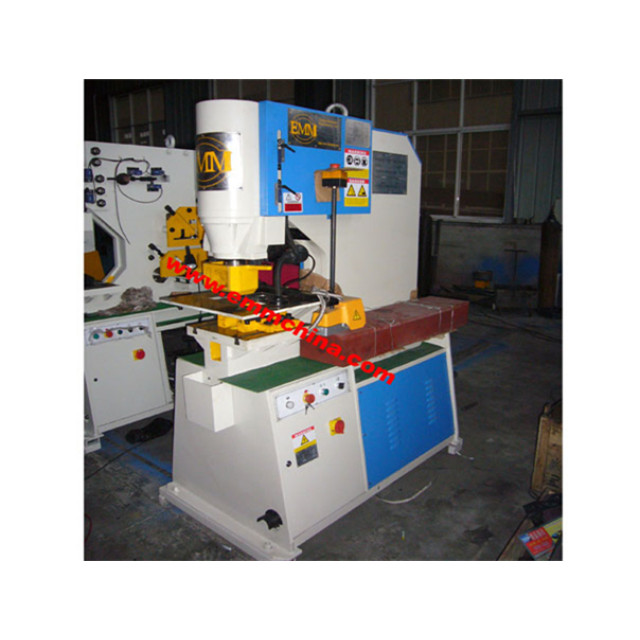

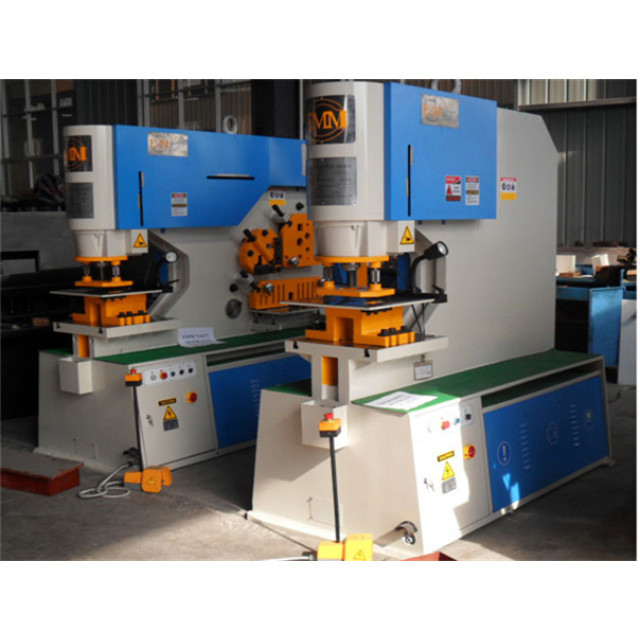

The EMM model of hydraulic punching machines all come equipped with a deep throat of 600mm as standard. Heavy-duty support tables with scales and backstops, universal die holder for punching in plate, flat bar, angle iron and flange of channel and beam are all part of the standard execution. The EMM hydraulic punching machines are available from 60 ton to 200 ton. Furthermore, tooling from competitor’s machines and or other brand-names can be used without special machine-modifications. The standard machine comes equipped with a deep throat and universal die-bolster, punching up to 57mm diameter/slot. The front part of the table can be removed in order to punch in large format angle-iron.
The EMM model of hydraulic punching machines all come equipped with a deep throat of 600mm as standard. Heavy-duty support tables with scales and backstops, universal die holder for punching in plate, flat bar, angle iron and flange of channel and beam are all part of the standard execution. The EMM hydraulic punching machines are available from 60 ton to 200 ton. Furthermore, tooling from competitor’s machines and or other brand-names can be used without special machine-modifications. The standard machine comes equipped with a deep throat and universal die-bolster, punching up to 57mm diameter/slot. The front part of the table can be removed in order to punch in large format angle-iron.
|
Model |
Q55Y-60 |
Q55Y-90 |
|
Punching Pressure (Ton) |
600 |
900 |
|
Max punching thickness(mm) |
16 |
20 |
|
Max. capacity(mm) |
25x16 |
30x20 |
|
Tensile strength of sheet metal(N/mm²) |
≤450 |
≤450 |
|
Stroke length(mm) |
80 |
80 |
|
Number of stroke(times/min) |
8 |
8 |
|
Depth of throat(mm) |
380 |
450 |
|
Main motor power (KW) |
4 |
5.5 |
|
Machine length(mm) |
1180 |
1420 |
|
Machine width(mm) |
770 |
790 |
|
Machine height(mm) |
1760 |
1990 |
|
Machine weight(kg) |
970 |
1600 |
