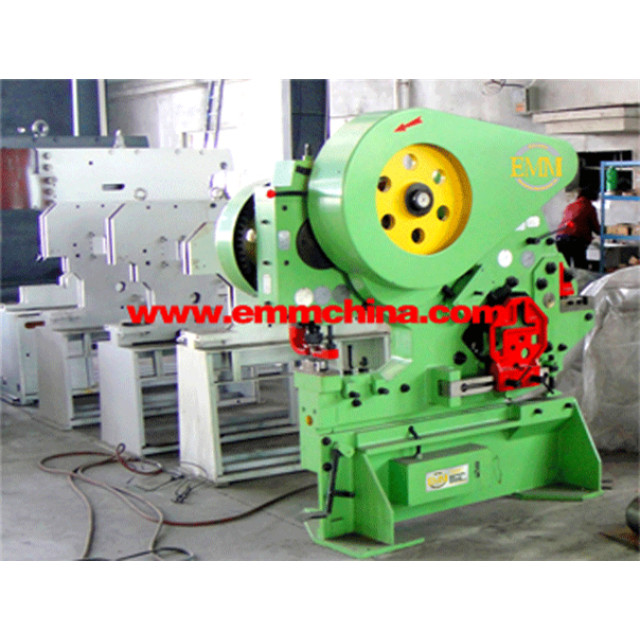

The mechanical ironworker machine is an ideal equipment for shearing square bar, angle, round bar, C channel, I beam, punching and notching.
Mechanical Ironworker：
The mechanical ironworker machine is an ideal equipment for shearing square bar, angle, round bar, C channel, I beam, punching and notching.
| Model | Q35-16 |
| Punching pressure(ton) | 63 |
| Max. Shearing thickness of steel plates(mm) | 16 |
| Tensile strength of sheet metal(N/mm²) | ≤450 |
| Angle of shearing | 13° |
| Shearing sizes of one stroke(WXH)(mm) | 20x140 |
| Ram stroke(mm) | 26 |
| Number of stroke(times/min) | 36 |
| Depth of throat(mm) | 450 |
| Punching thickness(mm) | 16 |
| Max. diameter of punching(mm) | 28 |
| Main motor power (KW) | 4 |
| Overall dimensions(L x Wx H) (mm) | 1877x1945x725 |
| Net. Weight(kg) | 2830 |
