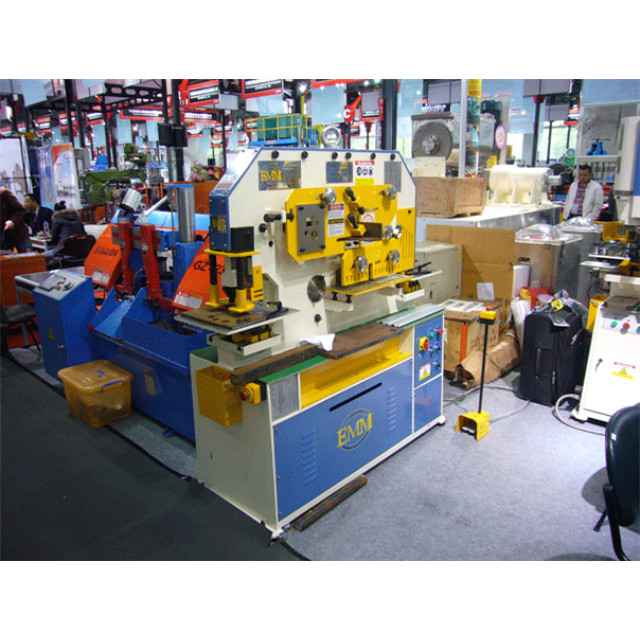

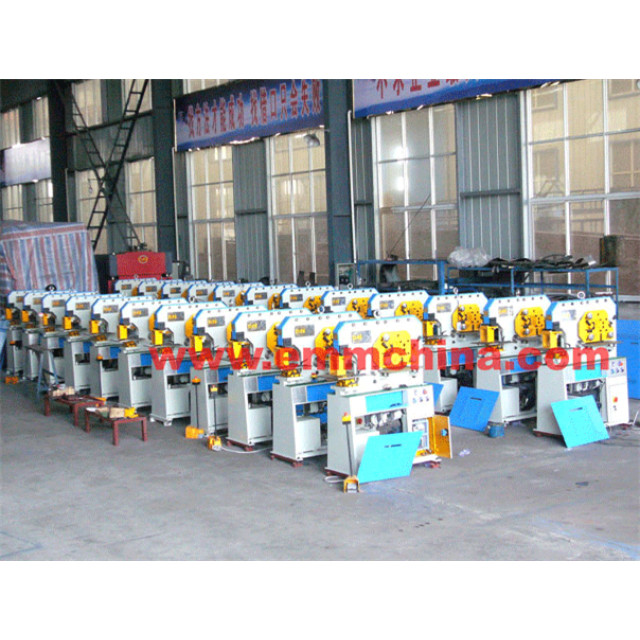

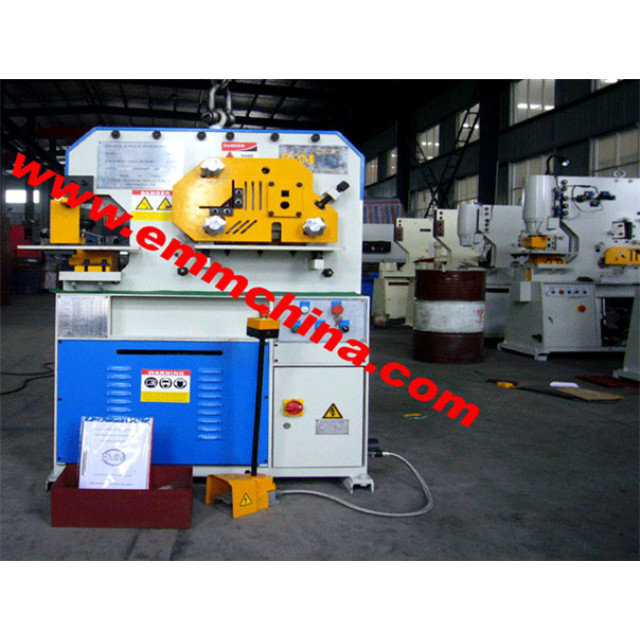

Use scissors rack reciprocating oscillation, the realization of four or five station location work, is currently the domestic hydraulic combined punching and shearing machine's latest products. This machine reasonable structure, light weight, low noise, portable and reliable. Rest the integral, it is equipped with four or five station location can be carried out punching, Angle steel, round steel, square steel, flat steel shear, five station steel die cut can be performed. Also can be channel steel, i-steel, shear, etc.
Machine configuration corresponding keep-off device, pressure loading device adopt bevel gear drive for adjusting pressure, convenient and quick.
Use scissors rack reciprocating oscillation, the realization of four or five station location work, is currently the domestic hydraulic combined punching and shearing machine's latest products. This machine reasonable structure, light weight, low noise, portable and reliable. Rest the integral, it is equipped with four or five station location can be carried out punching, Angle steel, round steel, square steel, flat steel shear, five station steel die cut can be performed. Also can be channel steel, i-steel, shear, etc.
Machine configuration corresponding keep-off device, pressure loading device adopt bevel gear drive for adjusting pressure, convenient and quick.
|
Specification |
HIW-40 |
HIW-50 |
HIW-60 |
|
Punching capacity KN |
400 |
500 |
600 |
|
Maximum capacity MM |
20x10 |
24x12 |
28x15 |
|
Max stroke length MM |
32 |
50 |
55 |
|
Standard throat depth MM |
175 |
175 |
175 |
|
Largest hole(optional) MM |
60 |
60 |
100 |
|
Shearing |
|
|
|
|
Flat bar-max thickness MM |
200x10 |
200x12 |
200x15 |
|
Flat bar-max width MM |
300x8 |
300x10 |
300x12 |
|
Blade length MM |
318 |
318 |
308 |
|
Angle flange trim-max 45°MM |
80x10 |
80x10 |
80x10 |
|
Angle cutting |
|
|
|
|
90° cut MM |
80x8 |
100x10 |
125x12 |
|
Section cutting |
|
|
|
|
Round/square MM |
30/25 |
30/30 |
40/35 |
|
Channel/beam MM |
65x40 |
80x43 |
100x48 |
|
Tee MM |
38x6 |
40x7 |
76x10 |
|
Notching |
|
|
|
|
Material thickness MM |
|
8 |
10 |
|
Width-rectangle MM |
|
35 |
42 |
|
Depth-rectangle MM |
|
60-90 |
60-90 |
|
Angle flange-max profile MM |
|
80x8 |
100x10 |
